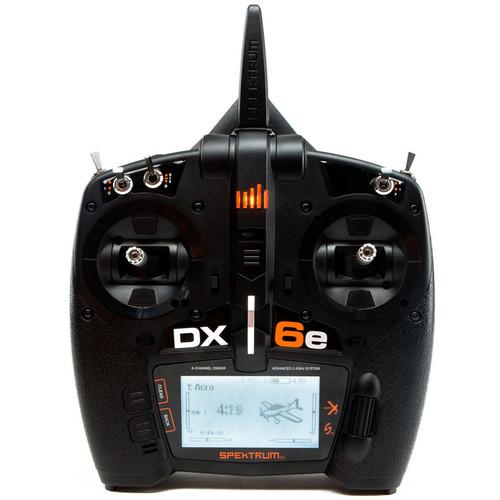

User Manual for Spektrum DX6e 6-Channel Transmitter Click to enlarge the picture
Contents of the user manual for the Spektrum DX6e 6-Channel Transmitter
- Product category: Remote Control Components Spektrum
- Brand: Spektrum
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Spektrum Remote Control Components
|
User manual for the Spektrum DX6e 6-Channel Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Spektrum product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Spektrum user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Spektrum product will considerably shorten its lifespan!
|
Product description The Spektrum DX6e 6-Channel Transmitter is based on highly responsive DSMX/DMS2 modulation and features Spektrum's proprietary AirWare software, which allows programming airplane, helicopter, sailplane, and multirotor models. On-board memory supports up to 250 models, ensuring you can rely on the internal memory instead of SD cards when switching between models. The model memory is simple to navigate and only displays slots with model settings saved to them. You won't have to scroll through empty slots or move models around if one is deleted. The DX6e operates on 2.4 GHz frequency band.
Built-in telemetry provides real-time information on signal quality, motor temperature, and other details when the transmitter is used with a telemetry-enabled receiver, sold separately (optional telemetry sensors are also required). Telemetry value limits can be assigned and alerts programmed to inform you when the limits are reached or surpassed.
The DX6e is designed with a wireless trainer system that simplifies training in the field. The wireless trainer link provides the option to wirelessly "buddy box" with another DSMX/DSM2 transmitter. After the first time, you can re-link again automatically thanks to built-in ModelMatch technology.
The DX6e also allows you to change gimbal spring configurations using a slider switch on the rear. This is done by selecting the spring configuration that matches the mode you are using and model type you are flying. You can choose from four spring configurations (see below). The slider switch is protected by a hinged cover that prevents accidental configuration changes during flight. The DX6e is an economical controller designed with many features found only in higher-end transmitters. - Key Features
-
- Gimbal design with spring configuration switch
- DSM2/DSMX wireless trainer link
- Stores up to 250 models and only populates the model list with models the user has configured
- Airplane, helicopter, sailplane, and multirotor programming
- Built-in telemetry
- 7 airplane wing types and 6 tail types
- 2 swashplate types
- 4 sailplane wing types and 3 tail types
- Multirotor flight mode setup
- 7-point throttle curves for airplanes and helicopters
- 7-point pitch and tail curves for helicopters
- Cross-platform model sharing with other Spektrum transmitters
- 4 x AA batteries included
- EN328 compatible
- Four Spring Configurations
-
- Normal throttle for modes 2 and 4 (airplane, helicopter, and sailplane model types)
- Spring-centered throttle for modes 2 and 4 (multirotor)
- Spring-centered throttle for modes 1 and 3 (multirotor)
- Normal throttle for modes 1 and 3 (airplane, helicopter, and sailplane)
- Airplane Programming
-
- 7 Wing Types: Normal, Dual Aileron, Flaperon, 1 Aileron / 1 Flap, 2 Aileron / 1 Flap, Elevon A, Elevon B
- 6 Tail Types: Normal, V-Tail A, V-Tail B, Dual Elevator, Dual Rudder, Dual Rudder/Elevator
- Flap system with elevator compensation
- 3 flight modes
- Dual rates and expo
- 7-point throttle curve
- 3 Preset Mixes: Rudder-to-Aileron/Elevon, Aileron-to-Rudder, Elevator-to-Rudder
- 4 programmable mixes (Normal or Curve)
- Helicopter Programming
-
- Gyro
- 7-point throttle curve
- 7-point pitch curve
- 7-point tail curve
- 2 Swash Plate Types: Normal, 3-Servo 120°
- 3 flight modes plus throttle hold
- Dual rates and expo
- Cyclic-to-throttle and swashplate timing mixes
- 4 programmable mixes (Normal or Curve)
- Sailplane Programming
-
- 4 Wing Types: Single Aileron, Dual Aileron, 2 Aileron / 1 Flap, 2 Aileron / 2 Flap
- 3 Tail Types: Normal, V-Tail A, V-Tail B
- Camber system
- Camber preset
- 5 flight modes
- Dual rates and expo
- 4 Preset Mixes: Aileron-to-Rudder, Aileron-to-Flap, Elevator-to-Flap, Flap-to-Elevator
- 4 programmable mixes (Normal or Curve)
- Multirotor Programming
-
- Multirotor Channel Inputs: ALT (altitude), ROL (roll), PIT (pitch), YAW
- Multirotor checklists and warnings
- Simplified multirotor flight mode setup and switch assignment
UPC: 605482173213 In the Box Spektrum DX6e 6-Channel Transmitter - 4 x AA Battery
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Spektrum DX6e 6-Channel Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpektrum SPMR6650 Specs | Number of Channels | 6 | | Modulation | DSMX, DMS2 | | Band | 2.4 GHz | | Model Memory | 250 | | Modes | User-Selectable: 1, 2, 3, or 4 | | Supported Battery Type | 4 x AA | | | | Package Weight | 3.4 lb | | Box Dimensions (LxWxH) | 12.2 x 9.4 x 5.5" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
