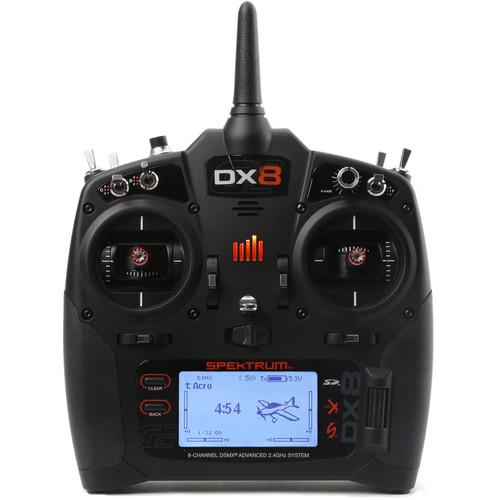

User Manual for Spektrum DX8 Gen 2 DSMX 8-Channel Transmitter Click to enlarge the picture
Contents of the user manual for the Spektrum DX8 Gen 2 DSMX 8-Channel
- Product category: Remote Control Components Spektrum
- Brand: Spektrum
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Spektrum Remote Control Components
|
User manual for the Spektrum DX8 Gen 2 DSMX 8-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Spektrum product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Spektrum user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Spektrum product will considerably shorten its lifespan!
|
Product description The DX8 Gen 2 from Spektrum is a full-range, 8-channel transmitter (radio controller) suitable for use with a wide range of model types, including airplanes, helis, mutli-rotors, and more. It features DSMX protocol with legacy DSM2 support for pairing with a range of receivers (available separately). This version of the DX8 supports control modes 1, 2, 3, and 4. - Programmable Voice Alerts
- The DX8 lets you keep tabs on important functions without ever taking your eyes off what you're flying. You can program voice alerts to call out what flight mode you've chosen or report telemetry information on demand. If an alarm goes off, you won't have to look at the transmitter display to see what's happening. The DX8 can tell you.
Note: Requires a separately available Spektrum telemetry module and telemetry sensors. - Wireless Trainer Link
- Allows users to wirelessly link the DX8 up with other compatible Spektrum transmitters and specially-equipped Spektrum FPV headsets. Once bound to another transmitter or component, ModelMatch technology will allow the DX8 to re-link without having to go through the bind process again.
With Wireless Trainer Link, you could:- Wirelessly "buddy box" with another DSMX/DSM2 transmitter when teaching someone to fly
- Assign gimbal functions to a second "camera" transmitter when flying a camera drone, so you can focus on avoiding obstacles and maintaining visual contact while someone else lines up the shot
- Link with specially-equipped Spektrum FPV headsets to wirelessly control head tracking and remotely change video frequencies
- 250-Model Memory
- The 250-slot capacity of the DX8's on-board memory means you should rarely, if ever, need to juggle models between transmitter memory and your SD card. The model-memory menu is designed to be easier to navigate, too. Only memory slots with model settings saved to them will appear; unlike other systems where you will have to scroll through empty slots or move models around if one is deleted. Because the DX8 uses the same AirWare software as many other Spektrum transmitters, you can share model setups across platforms with almost any Spektrum pilot.
- Built-in Telemetry Readout
- The built-in telemetry feature gives you real-time information on things like your model's battery voltage, signal quality, engine or motor temperature, airspeed, altitude and more. Using the voice alert system, you can program the DX8 to tell you when specific telemetry values reach or exceed limits you define. You can also have it call out a sequence of telemetry values on demand with the flip of a switch. If you want to review telemetry after a flight, the DX8 can be set up to record the data to its SD card.
Note: Requires a separately available Spektrum telemetry module and telemetry sensors. Programming Features Airplane - 10 Wing Types: Normal, Dual Aileron, Flaperon, 1 Aileron 1 Flap, 1 Aileron 2 Flap, 2 Aileron 1 Flap, 2 Aileron 2 Flap, Elevon A, Elevon B, and 4 Aileron
- 6 Tail Types: Normal, V-Tail A, V-Tail B, Dual Elevator, Dual Rudder, and Dual Rudder/Elevator
- Aileron, Flaperon, Elevon, and V-Tail differential
- Flap system with elevator compensation
- Preset Mixes: Elevator-to-Flap, Aileron-to-Rudder, and Rudder-to-Aileron/Elevon
- 10 Programmable Mixes: Select Normal or Curve for each
Helicopter - 7 Swash Plate Types: Normal, 3 Servo 120°, 3 Servo 135°, 3 Servo 140°, 3 Servo 90°, 4 Servo 90°, and 2 Servo 180°
- 5 Flight Modes, including Hold
- Cyclic-to-Throttle and swashplate timing mixes
- 10 Programmable Mixes: Select Normal or Curve for each
Sailplane - 5 Wing Types: Single Aileron, Dual Aileron, 2 Aileron 1 Flap, 2 Aileron 2 Flap, and 4 Aileron 2 Flap
- 3 Tail Types: Normal, V-Tail A, and V-Tail B
- Motor throttle switch assignment
- Dual Aileron and V-tail differential
- Preset Mixes: Flap-to-Aileron Curve, Aileron-to-Flap, Aileron-to-Rudder, and Elevator-to-Flap
Multi-Rotor - Multi-rotor Channel Inputs: ALT (Altitude), ROL (Roll), PIT (Pitch), and YAW
- Multi-rotor Channel Inputs: ALT (Altitude), ROL (Roll), PIT (Pitch), and YAW
- Simplified multi-rotor flight mode setup and switch assignment
UPC: 605482613054 Table of Contents
|
Upload User Manual
Have you got an user manual for the Spektrum DX8 Gen 2 DSMX 8-Channel Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpektrum DX8 Gen 2 Specs | Band | 2.4 GHz | | Channels | 8 | | Frame Rate | 11/22 ms | | Model Memory | 250 | | Model Type | Multi-rotor
Sailplane
Helicopter
Airplane | | Modulation | DSMX, DSM2 | | Modes | Mode 1
Mode 2
Mode 3
Mode 4 | | Range | Full | | Resolution | 2048 | | Compatibility | SD card/Airware | | Telemetry | Yes | | Battery | Chemistry: Lithium-ion
Capacity: 2000 mAh | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Package Weight | 4.21 lb | | Box Dimensions (LxWxH) | 14.0 x 12.3 x 8.15" |
