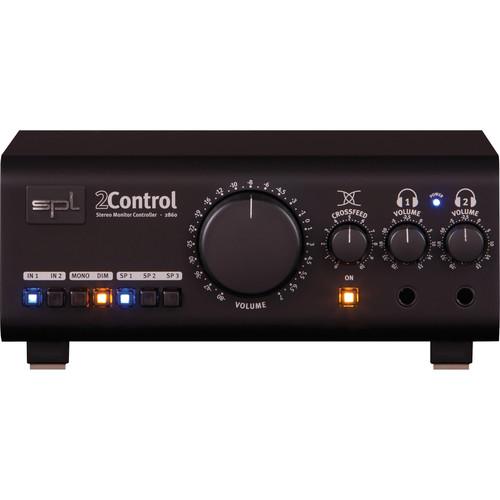

Product description The SPL 2Control is a compact, lightweight analog monitoring controller offering flexible and portable control of multiple sets of speakers and headphones for audio engineers, producers, and musicians in the studio or on the road. Route two stereo sources via balanced XLR inputs, and connect two sets of stereo speakers to the XLR outputs. A mono XLR output accommodates a dedicated mono speaker or a subwoofer. The two 1/4" TRS stereo headphone outputs are driven by independent headphone amplifiers to support simultaneous use of headphones with different impedance ratings. Separate volume controls are provided for the speaker outputs and each headphone output. A switchable and adjustable crossfeed control allows narrowing of the headphone output's stereo image to more closely match the natural bleed that occurs when monitoring through speakers. Additional switchable functions include dim, mono, and ground lift. - Analog Volume Control for Your DAW
- Analog volume control allows smooth level adjustment without affecting your D/A converter gain
- Two Headphone Amplifiers
- Two 1/4" stereo headphone outputs are driven by independent amplifiers
- Crossfeed Control
- The adjustable "Crossfeed" control modifies the channel-to-channel bleed for the headphone outputs, approximating the stereo imaging perceived when monitoring through speakers
- Extends the Range of Headphone Applications
- XLR and 1/4" outputs allow for critical listening on multiple sets of speakers and headphones
- Separate Mono Speaker Output
- A dedicated mono XLR output enables connection to a separate mono speaker or a subwoofer
- Switches
- Source and speaker output switches as well as mono and dim switches provide the main monitoring functions without overloading the user interface
- Lightweight and Compact
- The 2Control's lightweight, compact enclosure easily integrates into crowded desktop setups and portable rigs
In the Box SPL 2Control Analog Monitoring Controller Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SPL 2Control Analog Monitoring Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSPL SPL2CON Specs | Inputs | 4 x XLR 3-pin female (balanced) | | Outputs | 5 x XLR 3-pin male (balanced)
2 x 1/4" TRS stereo headphone (unbalanced) | | Nominal Input Level | Input 1: +4 dBu
Input 2: +4 dBu / -10 dBV | | Input Impedance | 22 kOhms | | Output Impedance | XLR: 75 Ohms
1/4": 22 Ohms | | Maximum Input Level | 21.3 dBu | | Maximum Output Level | 21.3 dBu | | Volume Control | XLR: -80 to +6.6 dB
1/4": -65 to +14.9 dB | | Dynamic Range | 116 dB | | Frequency Range | 10 Hz to 100 kHz (-0.5 dB)
10 Hz to 200 kHz (-1.8 dB) | | CMRR | > 60 dB (at 1 kHz, 0 dBu input level, unity gain) | | THD + N | 0.002% (at 1 kHz, 0 dBu input level, unity gain) | | Signal-to-Noise Ratio (SNR) | XLR: -96 dB
Headphones: -85 dBA | | Crosstalk | > 70 dB (at 1 kHz) | | Power Supply | Toroidal transformer with voltage selector and IEC connector | | Fuses | 115 V at 60 Hz: 630 mA
230 V at 50 Hz: 315 mA | | Power Consumption | 25 W | | Dimensions | W x H x D: 8.5 x 3.1 x 8.7" / 21.5 x 8.0 x 22.0 cm
Depth with Controls and Sockets: 9.6" / 24.5 cm
Height with Feet: 3.7" / 9.5 cm
Front Height with Opened Feet: 5" / 12.6 cm | | Weight | 4.6 lb / 2.1 kg | | | | Package Weight | 7.4 lb | | Box Dimensions (LxWxH) | 14.7 x 14.2 x 6.8" |
