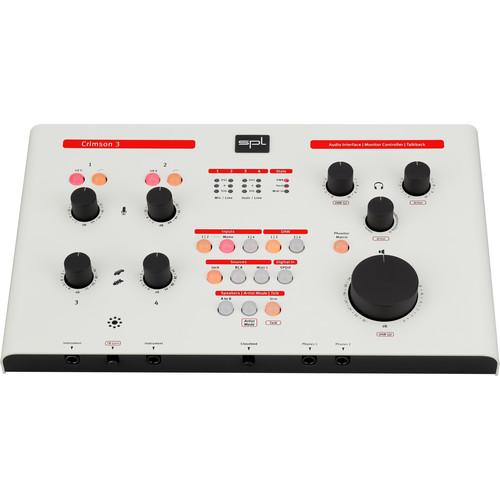

User Manual for SPL Crimson 3 USB Audio Interface Click to enlarge the picture
Contents of the user manual for the SPL Crimson 3 USB Audio Interface
- Product category: Audio Interfaces & Systems SPL
- Brand: SPL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SPL Audio Interfaces & Systems
|
User manual for the SPL Crimson 3 USB Audio Interface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SPL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SPL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SPL product will considerably shorten its lifespan!
|
Product description The white SPL Crimson 3 is a USB audio interface designed to provide flexible connectivity, high-resolution audio, and versatile analog monitoring for musicians, audio engineers, and producers in project studios, recording facilities, and mobile rigs. It supports resolutions up to 24-bit / 192 kHz and can be used as a standalone device or with your DAW via USB. It is compatible with Mac OS X, Windows, and iOS.Record up to six channels simultaneously regardless of the selected sample rate. There are two microphone preamps with selectable phantom power and 80 Hz high-pass filters. Instruments such as guitars, bass, or keyboards can be connected to the front-panel 1/4” TS jacks. The rear-panel provides access to six 1/4” TRS inputs, stereo RCA, and 3.5mm inputs, S/PDIF digital I/O, and MIDI I/O.Two sets of speakers are supported via XLR and 1/4" TRS output jacks. Dual headphone outputs and an integrated Phonitor Matrix with adjustable Crossfeed intensity provide monitoring ideal for tracking and mixing. For efficient recording and overdubbing, a built-in talkback mic and one-knob monitor mix function deliver simple communication and headphone mixes. - Use as a standalone device or with your DAW
- Supports resolutions up to 24-bit / 192 kHz
- 16 inputs: two XLR mic inputs, two 1/4" TS instrument inputs, six 1/4" TRS line inputs, two RCA inputs, one stereo 3.5mm mini-jack, and a stereo S/PDIF digital RCA input
- XLR and 1/4" TRS speaker outputs with speaker-switching function
- Two 1/4" headphone outputs plus integrated Phonitor Matrix with adjustable Crossfeed intensity
- One-knob monitor mix for fast headphone mixes
- Built-in talkback microphone with adjustable gain
- LED indicators and signal meters
- Selectable +48V phantom power
- Selectable 80 Hz high-pass filters
- Compatible with Mac OS X, Windows, and iOS
In the Box SPL Crimson 3 USB Audio Interface (White) External Power Supply USB Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SPL Crimson 3 USB Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSPL SPLCRIMWHV3 Specs | | | System Requirements | Mac
Mac OS X 10.6 or later
iOS 6 or later
For iPad and iPhone, use an Apple camera adapter
Windows
Windows XP, 7, 8, and 10 (32- and 64-bit)
ASIO control panel for Windows | | | | Inputs | 2 x XLR 3-pin
6 x 1/4" TRS
2 x 1/4" TS
2 x RCA coaxial (L/R pair)
1 x 1/8" (3.5 mm) stereo mini-jack
1 x S/PDIF digital RCA coaxial | | Outputs | 2 x XLR 3-pin
2 x 1/4" TRS balanced
2 x 1/4" TRS unbalanced (headphone outputs)
1 x S/PDIF digital RCA coaxial | | MIDI I/O | 1 x MIDI 5-pin input
1 x MIDI 5-pin output | | USB | 1 x USB Type-B
USB 2.0 class-compliant (asynchronous mode) | | Sample Rates | kHz: 44.1, 48, 88.2, 96, 176.4, 192
Fixed master clock | | Frequency Response | 10 Hz to over 200 kHz | | High Pass Filter | 80 Hz, 6 dB per octave | | Gain Control Range | Microphone Preamplifiers: +7 to +60 dB
Instrument Input: -6 to +31 dB | | Phantom Power | +48 V | | Input Impedances | Microphone Input: 10 kOhms
Line Input: 10 kOhms (unbalanced), 20 kOhms (balanced)
Source 1 Input: 10 kOhms (unbalanced), 20 kOhms (balanced)
Source 2/3 Inputs: 10 kOhms | | Output Impedances | Speaker Outputs: 75 Ohms unbalanced / 150 Ohms balanced
Headphone Outputs: 33 Ohms | | Maximum Input Levels | Microphone Inputs: +14.5 dBu (Mic Gain fully left)
Line Inputs: +22.5 dBu
Instrument Input: +24 dBu
Source 1/2/3 Inputs: +22.5 dBu | | Maximum Output Levels | +22.5 dBu (speaker outputs) | | Power Output | @ 0 dBU: 13 mW @ 47 Ohms, 1.7 mW @ 300 Ohms, 1 mW @ 600 Ohms
Maximum: 670 mW @ 47 Ohms, 265 mW @ 300 Ohms, 150 mW @ 600 Ohms | | Dynamic Range ADC | 113 dB @ 44.1 / 48 kHz
110 dB @ 88.2 / 96 kHz | | Dynamic Range DAC | 109 dB @ 44.1 / 48 kHz
107 dB @ 88.2 / 96 kHz | | Reference Level | A/D: 0 dBFS = +15 dBu | | Common Mode Rejection Ratio | Microphone Preamplifiers: < -70 dBu
Line Input: < -60 dBu
Source 1 Input: < -60 dBu | | THD + N | Microphone Preamplifiers: 0.003% @ 1 kHz (30 dB gain, 150 Ohms)
Instrument Input: 0.005% @ 1 kHz (unity gain, 100 kOhms)
Line Input: 0.002% @ 1 kHz (unity gain, 600 Ohms)
Source 1 Input: 0.002% @ 1 kHz (unity gain, 600 Ohms)
Source 2 Input (RCA): 0.003% @ 1 kHz (unity gain, 600 Ohms), 0.003% (-10 dBV, 600 Ohms)
Source 3 Input (Mini-Jack): 0.003% @ 1 kHz (unity gain, 600 Ohms), 0.005% (+15 dB, 600 Ohms)
Headphone Outputs (Power @ 0 dBU): 0.0026% @ 47 Ohms, 0.002% @ 300 Ohms, 0.002% @ 600 Ohms
A/D @ 1 kHz (-1 dBFS): 0.002% @ 44.1 / 48 kHz, 0.0025% @ 88.2 / 96 kHz | | Noise | Microphone Preamplifiers: -90 dBu (unweighted, 30 dB gain, 150 Ohms)
Instrument Input: -85 dBu (unweighted, unity gain, 100 kOhms)
Line Input: -95 dBu (unweighted, unity gain, 600 Ohms)
Source 1 Input: -95 dBu (unweighted, unity gain, 600 Ohms)
Source 2 Input (RCA): -90 dBu (unweighted, unity gain, 600 Ohms), -85 dBu (unweighted, -10 dBV, 600 Ohms)
Source 3 Input (Mini Jack): -88 dBu (unweighted, unity gain, 600 Ohms), -76 dBu (unweighted, +15 dB, 600 Ohms)
A/D Conversion: -113 dBFS (A-weighted @ 44.1 / 48 kHz), -110 dBFS (A-weighted @ 88.2 / 96 kHz)
D/A Conversion: -109 dBFS (A-weighted @ 44.1 / 48 kHz), -107 dBFS (A-weighted @ 88.2 / 96 kHz) | | Equivalent Input Noise | -128 dBu | | External Power Supply | Input: 100 to 240 VAC, 50/60 Hz
Output: 12 VDC, 1.5 A | | Internal Power Supply | Audio:
