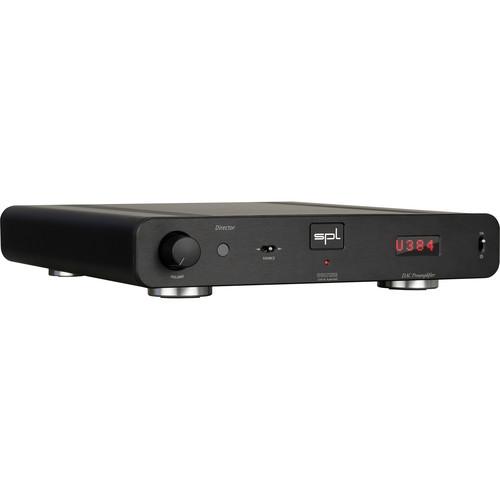

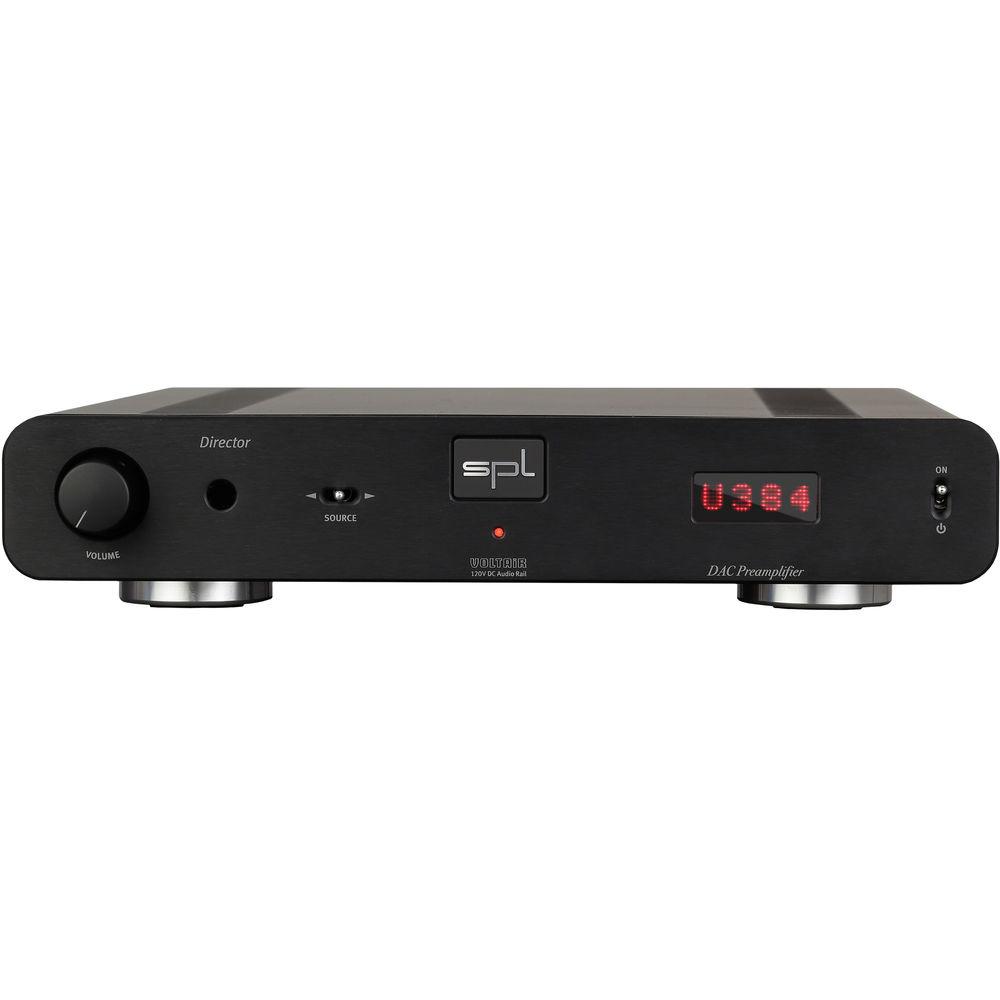

Product description The black Director D/A Converter & Preamplifier by SPL is designed to be the hub of a stereo system to which all components are connected. It combines a digital-to-analog converter with a preamplifier, allowing you to connect digital and analog sound sources, as well as amplifiers and powered speakers. Optimized for high-fidelity music playback, the Director is part of the Professional Fidelity series that takes its roots from SPL's professional mastering-studio technology.Built around 120V rail technology (VOLTAiR), the preamplifier delivers an impressive 137.6 dB of dynamic range, an extended frequency range of 4 Hz to 300 kHz, and a total harmonic distortion of 0.0008%. In addition, the D/A converter plays back PCM and DSD audio formats. PCM sampling is supported up to 384 kHz and DSD sampling is supported up to DSD2.Connect up to six stereo sources: two in the analog domain with RCA connectors, and four in the digital domain with USB, AES, coaxial and optical connectors. This unit is Apple class-compliant. When connected to a PC running Windows, a driver must be installed to playback audio files with a resolution higher than 44.1 kHz. To avoid shrinking bit resolution at lower listening levels, volume is controlled in the analog domain using a motorized ALPS RK27 Big Blue potentiometer with channel matching. Volume as well as input selection can be remotely controlled using any existing infra-red (IR) remote control.Other features include a dot-matrix display that shows source selection & sample rate of the selected digital input, and a set of six DIP switches to customize signal routing, muting, gain structure and output calibration. -
- D/A converter and preamplifier with 120V rail technology (VOLTAiR )
- Four digital inputs: USB, AES/EBU, coaxial, optical
- PCM up to 384 kHz and DSD up to DSD2
- Two analog inputs and two analog outputs
- Avago dot-matrix display shows selected input and sample rate frequency for digital inputs
- Analog volume control with motorized ALPS Big Blue potentiometer
- Remote-controllable volume and source selection (Director learns commands from any IR remote-control)
- Six DIP switches to customize signal routing, muting, gain structure and output calibration
- AMP CTL connection to SPL's Performer power amplifier for coupled on/off switching
- Windows driver, Apple class-compliant
- Stand-by/power-on switch
- Linear power supply with toroidal transformer
- Front and lid made from aluminum, housing made from sheet metal
- Made in Germany
In the Box SPL Director D/A Converter & Preamplifier (Black) 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SPL Director D A Converter & Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

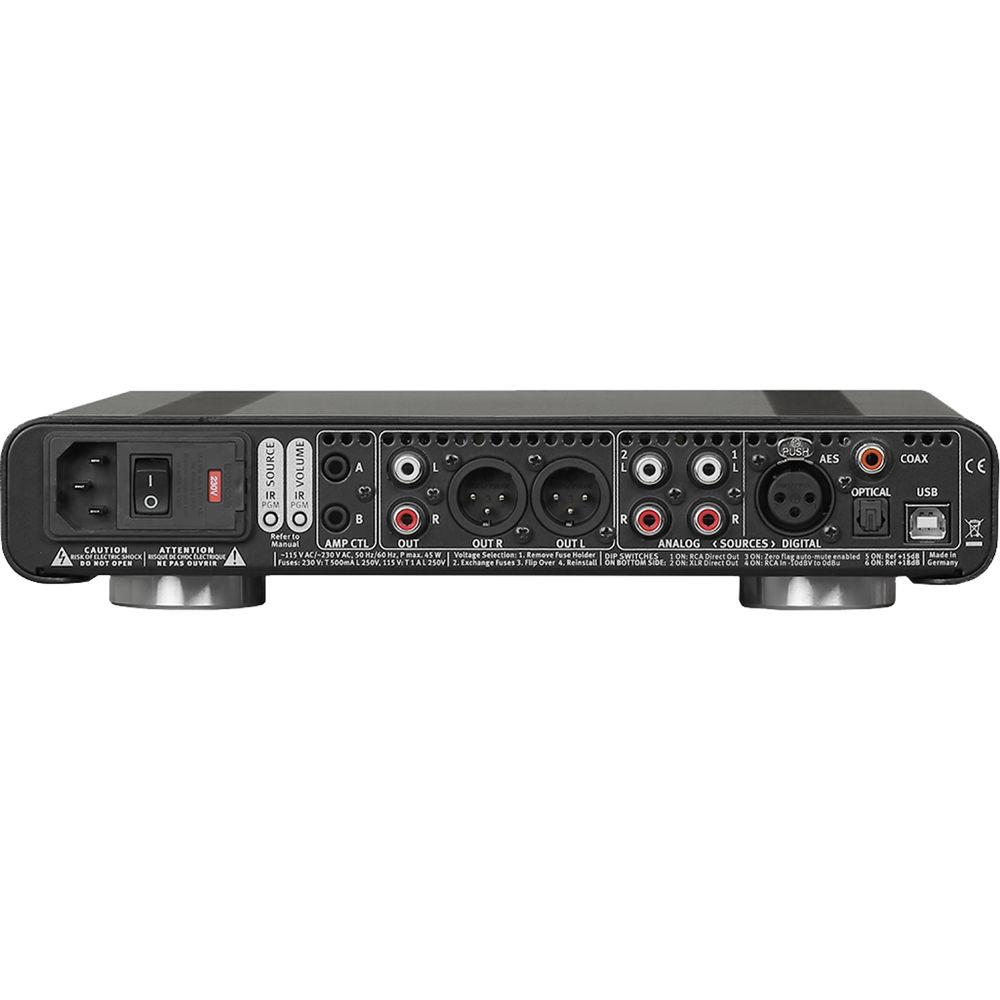

Technical parametersSPL SPLDIRECT-BL Specs | Analog Inputs | 2 x stereo RCA, unbalanced | | Impedance | 10 kOhms | | Maximum Input Level | +32.5 dB | | Digital Inputs | 1 x AES/EBU XLR, balanced
Sample Rates PCM: 44.1, 48, 88.2, 96, 176.4, 192 kHz
1 x coaxial S/PDIF (RCA)
Sample Rates PCM: 44.1, 48, 88.2, 96, 176.4, 192 kHz
1 x optical TOSLINK (F06)
Sample Rates PCM: 44.1, 48, 88.2, 96 kHz
1 x USB (B)
Sample Rates PCM: 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
Sample Rates DSD: DSD1 (DSD64), DSD2 (DSD128) | | Analog Outputs | 2 x Neutrik XLR, balanced, pin 2 = (+)
1 x stereo RCA, unbalanced (single ended) | | Frequency Range | Analog: 4 Hz to 300 kHz (-3 dB) | | Crosstalk | Analog: -95 dB
Digital: -100 dB | | THD | Analog (0 dBu): 0.0008%
Digital (-1 dBFS): 0.0004 % | | Noise | Analog: -105.1 dBA
Digital: -96.8 dBA | | Dynamic Range | Analog: 137.6 dB
Digital: 120.8 dB | | Internal Voltages | Analog: ±50 V
Digital: +5 V & +3.3 V | | Voltage Supply | Mains Voltage (Switchable): 230 VAC, 50 Hz and 115 VAC, 60 Hz
Fuses: T 500 mA (230 V) / T 1 A (115 V)
Power Consumption: Max. 40 VA
Standby Power Consumption: 0.7 W | | Dimensions (W × H × D) | 10.94 x 2.24 x 12.91" / 278 x 57 x 328 mm | | Weight | 7.27 lb / 3.3 kg | | | | Package Weight | 10.15 lb | | Box Dimensions (LxWxH) | 21.2 x 14.7 x 5.1" |
