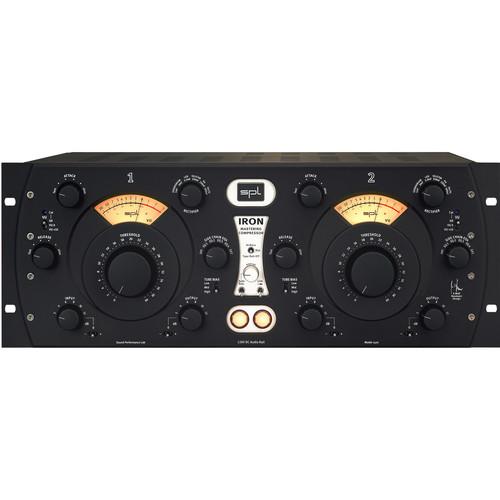

User Manual for SPL Iron Mastering Compressor Click to enlarge the picture
Contents of the user manual for the SPL Iron Mastering Compressor
- Product category: Dynamics Processors SPL
- Brand: SPL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SPL Dynamics Processors
|
User manual for the SPL Iron Mastering Compressor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SPL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SPL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SPL product will considerably shorten its lifespan!
|
Product description The black SPL Iron Mastering Compressor is a tube-based stereo compressor designed to add vintage quality warmth while mastering a mix. The signal of each channel is split across two different twin-triode tubes. The combination of the different response curves of both tubes results in a transparent and musically pleasant compression. The compressor's output signal remains lively even with a high gain reduction, and the compression is only noticeable with extreme settings. The tube bias has three different settings. The attack and release parameters have six different settings ranging from slow to fast. The sidechain EQ is yet another option to adjust the Iron to the signal being processed in an optimal way. It allows you to choose between an external EQ or one of the four internal EQ presets. After the compression stage, the signal can be boosted or attenuated up to ±12 dB with the output gain, which makes the Iron easy to integrate into any signal chain. The compressor has an additional passive 120V equalizer to give the output signal the finishing touches. The 120V rail technology helps reproduce the finest details and deliver a relaxed-sounding audio experience. All functions can be adjusted via switches or, in the case of the Threshold, with a detented potentiometer, making it easy to replicate exact settings. Both the left and right channels have separate illuminated activating switches. The ergonomic design and clear arrangement of the control elements make working with the compressor more intuitive, while its shallow housing makes the Iron adaptable to tabletop rack stands. In addition to mastering sound mixes, the Iron can also be used to process individual instruments, like vocals, bass, guitar, and strings. - Variable-bias tube compressor
- Parallel dual-tube circuit
- Tube selection and pairing with Weigl Roe Test
- Mu-Metal iron transformers
- Peak signals of the control voltage are limited by a feed-forward resistive vactrol-opto-isolator
- Compression behavior of the tubes can be adapted to any material with tube bias (with three different settings), ±12 dB input gain, and threshold control
- Six different rectifier settings available with different diodes (germanium, silicon, LED, mixed)
- Sidechain EQ allows you to choose between off, four sidechain-filter presets, or an external sidechain signal
- All functions can be adjusted via switches or, in the case of the Threshold, with a detented potentiometer
- In Link mode, the threshold, tube bias, attack, release, and rectifier parameters, as well as the sidechain EQs, are controlled with the right side (channel 2) of the unit
- Additional passive 120V equalizer with two presets (AirBass and Tape Roll-Off)
- Interval control in Auto Bypass mode helps compare the original and compressed signals
- High dynamic 120V operating voltage
- Suitable for subgroups and mastering studios
- Designed, developed, and manufactured in Germany
In the Box SPL Iron Mastering Compressor (Black) Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SPL Iron Mastering Compressor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSPL SPLIRON Specs | Frequency Range | 10 Hz to 40 kHz | | CMRR | At 0 dBu
1 kHz: >80 dB; 10 kHz: >65 dB | | THD & Noise | >82 dB at 0 dBu | | Noise | A-Weighted: -98 dBu | | Total Harmonic Distortion | 0.06% @ 1 kHz / -10 dBu
0.01 % @ 1 kHz / 0 dBu
0.002% @ 1kHz / +10 dBu | | Input Impedance | 20 kOhms | | Input Level | +32.5 dBu, maximum | | Output Impedance | <50 Ohm | | Output Level | +32.5 dBu, maximum | | Power Consumption | 45 W, maximum | | Fuses | 230 V / 50 Hz: 1 A
115 V / 60 Hz: 2 A | | Dimensions | 19 x 7 x 12.25" (48.2 x 17.7 x 31.2 cm) | | Weight | 24.25 lb (11 kg) | | | | Package Weight | 28.15 lb | | Box Dimensions (LxWxH) | 22.1 x 18.8 x 10.0" |
