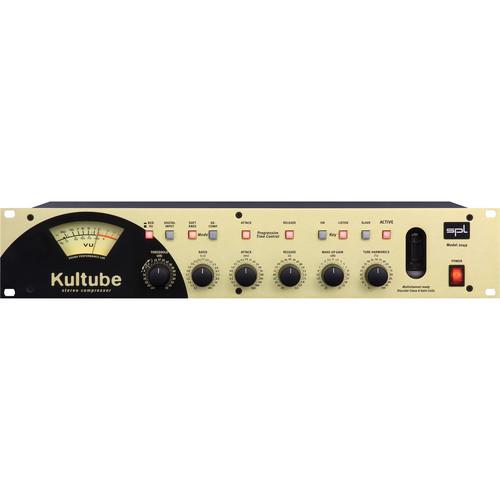

User Manual for SPL Kultube Stereo Compressor Click to enlarge the picture
Contents of the user manual for the SPL Kultube Stereo Compressor
- Product category: Dynamics Processors SPL
- Brand: SPL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SPL Dynamics Processors
|
User manual for the SPL Kultube Stereo Compressor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SPL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SPL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SPL product will considerably shorten its lifespan!
|
Product description The SPL Model 2049 Kultube Stereo Compressor is a versatile compressor with a broad range of control facilities that cover many typical compressor applications. From improved stereo mixes in the "MIDI Studio" to surround mastering with several devices connected, all jobs can be undertaken with a high degree of sound quality.
The Kultube user has a range of compression tools always available, from subtle unobtrusive compression to very obvious 'effect' compressions. Used conventionally or as an effect, in professional recording or mastering applications, the Kultube is designed to improved audio quality with musicality and user-friendliness.Applications cover those of a classic compressor for vocals and instruments, in both mono and stereo, through stereo operation for subgroup processing to stereo mastering and multichannel/surround projects.
The optional 24-bit / 192 kHz AD Converter Module 1090 can be inserted in the Kultube for digital compression processing.
The Kultube awaits you to control the future of sound. - Controls
- Threshold
Ratio
Attack
Release
Make-Up Gain
Tube Harmonics - Discrete, Class-A gain components for minimal electronics variance and possible sound degradation, instead of industrial VCAs
- Progressive Time Control: interactive automation of attack and release times, the permanent reaction to the input signal helps ensure musical improvement (no fixed automation presets)
- Adjustable tube saturation with output-level adjustment
- Selectable soft- or hard-knee characteristics
- Large VU meter displays gain reduction or (mono summed) output level
- Switchable sidechain inputs on the front panel
- Slave mode for multichannel operation
- Options: 24-bit/192 kHz AD converter, I/O transformers from Lundahl
In the Box SPL Kultube Stereo Compressor Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SPL Kultube Stereo Compressor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSPL SPLKULT Specs | Frequency Response | (100 kHz = -3 dB): 10 Hz to 100 kHz | | Common Mode Rejection | (@ 0 dBu): 1 kHz: > 75 dB / 10 kHz: > 65 dB | | THD + N | (@ 0 dBu): > 83 dB | | S/N Ratio | (A-weighted): 90 dBu | | Line Input Impedance | 20 kOhms | | Maximum Input Level | Line: +22 dBu | | Maximum Output Level | XLR / Jack: +24 dBu | | Output Impedance | 50 Ohms | | A/D Converter | Optional Model 1090 24-bit / 192 kHz Converter Module | | Inputs and Outputs | 2 x XLR Input @ +4 dBu
2 x TRS Input @ +4 dBu
2 x XLR Output
2 x TRS Output
1 x TRS Side-chain Input(s)
MultiChannel Links/Mater & Slave (for slaving units together) | | Settings Switches | Ground Lift
RED/VU (for changing VU meter over to Gain Reduction metering mode)
Digital Input (for optional A to D module)
Soft Knee Mode
De-Compress Mode
Attack
Release
On (Key)
Listen (Key)
Slave
Active | | Power Supply | Toroidal Transformer: 30 VA
Fuses: 800 mA (115 V/60 Hz), 400 mA (230 V/50 Hz) | | Dimensions (W x H x D) | Standard EIA - 19" /2-U Housing: 19.0 x 3.5 x 8.3" (482 x 88 x 210 mm) | | Weight | 9.8 lb (4.3 kg) |
