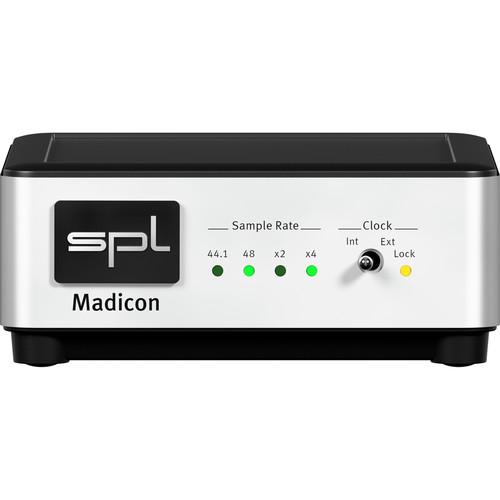

User Manual for SPL Madicon MADI to USB Audio Interface Click to enlarge the picture
Contents of the user manual for the SPL Madicon MADI to USB Audio
- Product category: Audio Interfaces & Systems SPL
- Brand: SPL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SPL Audio Interfaces & Systems
|
User manual for the SPL Madicon MADI to USB Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SPL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SPL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SPL product will considerably shorten its lifespan!
|
Product description The SPL Madicon is a USB-powered MADI-to-USB audio interface designed to provide MADI connectivity and versatile low-latency monitoring for sound technicians and recording engineers in studio, broadcast, and live stage applications. It features 64 inputs and 64 outputs via MADI optical ports and a stereo digital TOSLINK optical output.The Madicon’s high-speed USB interface supports resolutions up to 24-bit / 192 kHz and works with Mac OS X and Windows. Set your clock source via the front-panel internal/external clock switch. An FPGA monitor mixer offers low-latency monitoring, talkback, control room and headphone mixes, and 128-channel MADI metering. Select the Madicon in your DAW or utilize its direct-to-disk functionality to record up to 64 tracks to your computer without a DAW. - Supports 64 channels in and out via MADI optical ports
- Stereo digital TOSLINK optical output
- Up to 24-bit / 192 kHz resolution
- FPGA monitor mixer provides low-latency monitoring, talkback, a control room mixer, six separate headphone mixes, and 128-channel MADI metering
- Record up to 64 tracks direct to disk on your computer (no DAW required)
- Clock and sample rate indicators
- Internal/external clock switch
- Compatible with Mac OS X and Windows
In the Box SPL Madicon MADI to USB Audio Interface USB Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SPL Madicon MADI to USB Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSPL Madicon Specs | Inputs | 1 x MADI optical (supports 64 channels) | | Outputs | 1 x MADI optical (supports 64 channels)
1 x digital TOSLINK optical (stereo) | | USB | 1 x USB Type-B | | Resolution | Up to 24-bit / 192 kHz | | Power Requirement | USB-powered | | Dimensions | 4.3 x 3.9 x 1.6" / 108 x 100 x 40 mm | | Weight | 7.4 oz / 210 g |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
