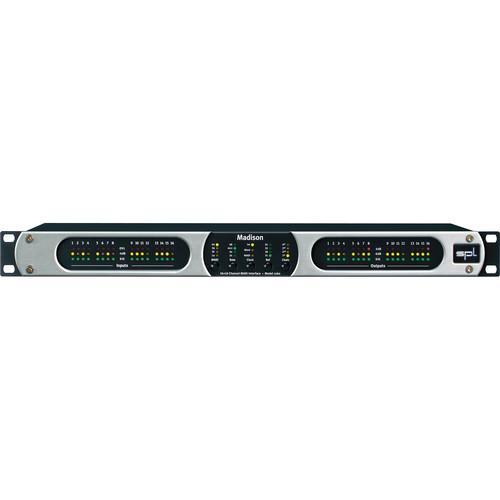

Product description The Madison MADI Interface from SPL is a 16-input/16-output MADI interface. It offers SPL analog sound for every MADI-equipped digital console, router, and PC MADI card.
With 16 input and 16 output channels in a single rack space, the Madison combines signal conversion with reliable clock and MADI processing. And as a true SPL unit it is designed to be simple to operate, easy to expand and, of course, a very good sounding conversion system.
Thanks to its I/O equipment, the Madison makes it simpler to integrate professional analog gear into larger multi-channel infrastructures. With four popular reference levels, operational sample rates between 44.1 and 192 kHz, multicore analog I/O, fibre MADI I/O and word clock I/O, the Madison simply fits just about everywhere.
Up to four units can be connected to a single MADI port on a digital console, a MADI PC card, or any professional audio-routing infrastructure. The MADI port offers near-zero-latency digital transmission of up to 64 I/Os with galvanic insulation. And since MADI is the emerging new studio I/O standard, the Madison is a suitable interface for home and project studios, commercial recording studios, and scoring stages. - MADI
- Broadcast and live professionals have relied on the still-unsurpassed MADI for about 20 years now - with jitter-free, rock-solid transmission of many audio channels per single wire, and low-cost cabling with lengths far above one mile, MADI simply offers unique advantages.
- Madison
- As SPL focuses on analog, and competent converter technology requires an appropriate analog background, that is where a true difference can be made. The company has designed an analog audio section on 36V audio rails, reaching output levels of 24 dBu. With its straight-forward operation and flexible expansion, the Madison is an ideal interface for anyone interested in the advantages of the MADI format.
- 16 AD and 16 DA converters in just 1 rack unit of space
- Converters with an analog section on 36V audio rails
- + 24 dBu professional output level
- Up to 64 I/Os on 1 MADI port (with 4 units, optional)
- Latency-neutral MADI chaining
- 44.1 to 192 kHz, ±10% vari-speed
- SPL clock-shop for jitter-free operation
- Ultra-compatible, always operational MADI I/O with low conversion latencies
- Four directly selectable reference levels: 15/18/22/24 dBu
- Simple front-panel control operation
- Distance-readable meters for clear level-status indication of any I/O channel
- Fanless, absolutely silent low-power design (max. 30 W)
- Redundant power supply optionally
- Four analog, 8-channel multicore DB25 sockets (TASCAM industry standard)
In the Box SPL Madison MADI Interface Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SPL Madison MADI Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSPL SPLMAD Specs | Converters and Connections | Resolution: 24-Bit
Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
Varispeed: ±12.5% in 56 CH mode, -12.5% in 64 CH mode
Reference Levels/Inputs: 24 dBu max, selectable 22 dBu, 18 dBu, 15 dBu
Reference Levels/Outputs: 24 dBu max, selectable 22 dBu, 18 dBu, 15 dBu
Clock: Internal clock circuitry from SPL, Wordclock or MADI
Expandability: 4 units via MADI chain for 64 channels
Wordclock: Input 75 ohms, terminated impedance
Wordclock Level: Input TTL/CMOS5/CMOS3; Output 3.3Vtt
MADI channels @ 44.1 & 48 kHz: 56/64 ch
MADI channels @ 2x 44.1 & 48 K: 28/32 ch
MADI channels @ 4x 44.1 & 48 K: 14/16 ch
MADI formats @ 2x 44.1 & 48K, 4x 44.1 & 48 kHz: SMUX/HighSpeed | | Inputs and Outputs | Audio Inputs
16 analog, balanced inputs, DB25/Tascam
MADI optical digital input (up to 64 channels)
Audio Outputs
16 analog, balanced inputs, DB25/Tascam
MADI optical digital output (up to 64 channels) | | Analog Inputs | Measurements
S/N: 115dB (A-weighted, 48 kHz)
Dynamic Range: 115 dB (-60 dBfs, A-weighted, 48 kHz)
S/(N+D): 102dB ( -1 dBfs, 48 kHz)
Interchannel Isolation: 110 dB (48 kHz)
Passband Response: 22 kHz (-0.02 dB, 48 kHz)
Passband Ripple: +/- 0.005 dB (Decimation-LPF, 48 kHz)
Stopband Attenuation: 100 dB (Decimation-LPF, 48 kHz) | | Analog Outputs | Measurements
S/N: 115 dB (A-weighted, 48 kHz)
Dynamic Range: 115 dB (-60 dBfs, A-weighted, 48 kHz)
S/(N+D): 100 dB (-1 dBfs, 48 kHz)
Interchannel Isolation: 110 dB (48 kHz)
Passband Response: 21.8 kHz (-0.04 dB, 48 kHz)
Passband Ripple: +/- 0.06 dB (Digital Filter, 48 kHz)
Stopband Attenuation: 70 dB (Digital Filter, 48 kHz) | | Rear Connections | 1 x IEC power connector
USB Type-A socket (no audio, firmware updates only)
Wordclock input via BNC socket with Termination switch
Wordclock output via BNC socket with Termination switch
MADI optical input, Type SC
MADI optical output, Type SC
2 x DB25 8-channel analog inputs (Tascam)
2 x DB25 8-channel analog outputs (Tascam) | | Power Supply | Switchmode, 90 - 264 VAC, 50/60 Hz, 35 W max.
Thermal Units: 65 BTU/h typ., 110 BTU/h max. | | Dimensions (H x W x D) | 1.7 x 19 x 10.2" (44.0 x 482.0 x 260.0 mm) (without sockets) | | Weight | 6.72 lb (3.05 kg) - Without 2nd Power Supply
6.99 lb (3.17 kg) - With 2nd Power Supply |
