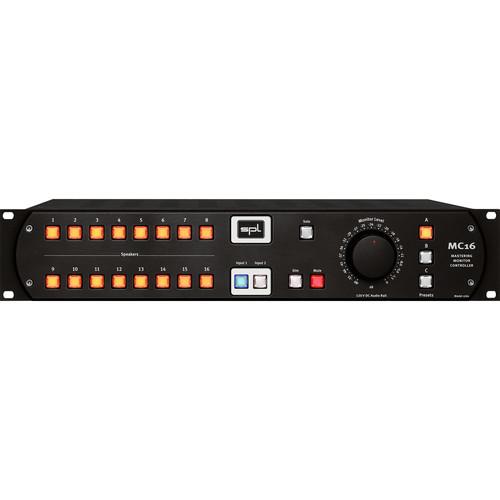

User Manual for SPL MC16 Multi-Channel Monitor Controller Click to enlarge the picture
Contents of the user manual for the SPL MC16 Multi-Channel Monitor Controller
- Product category: Studio Monitor Controllers SPL
- Brand: SPL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SPL Studio Monitor Controllers
|
User manual for the SPL MC16 Multi-Channel Monitor Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SPL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SPL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SPL product will considerably shorten its lifespan!
|
Product description Presented in a black finish, the SPL MC16 is a 16-channel analog monitor controller for use in mastering multi-channel projects. It sports the same powerful 120 VDC audio rail as the DMC and other SPL gear, an audio rail that provides exceedingly low noise, much in the way of headroom, and the ability to push levels quite loud before incurring any distortion. Two sets of 16-channel inputs are provided over XLR and DB25 connections, while 16 speaker outputs are offered over XLR.
A full monitor section is on hand with a prominent level knob that controls all 16 outputs, giving you mute, dim, and solo functions to boot. The MC16 lets you store up to six presets, recallable instantly and quite useful for navigating between different multi-channel setups, or different combinations of soloed speakers. The unit has been designed to interface into the SPL DMC Mastering Console, allowing you to integrate your multi-channel setup into your stereo rig. All of this makes the SPL quite suitable for engineers who work in Dolby Atmos, Auro 3D, 5.1, and more. Label foil with conventional nomenclature is included. - Balanced Connections
- The MC16 provided balanced connections for two 16-channel inputs, 32 in total. The first set of 16 inputs is for the multi-channel project you're working on, while the other can be used as a reference feed for comparison.
- Monitoring Section Explained
- The monitoring section provides a 16-gang analog precision potentiometer for controlling the level of all 16 channels at once. A solo button allows you to solo any of the speakers you wish. Switching solo off will restore your previous settings. A -20 dB dim switch is on hand as well, as is a mute button. You can save settings for formats like Dolby Atmos 9.1.6 or 5.1 surround into the A, B, and C preset slots. You can also use these presets to engage frequently soloed speakers, such as all the top speakers in the Dolby Atmos 9.1.6 format. In total, you can store up to 6 recallable presets.
- Compatible with the DMC
- The MC16 is designed to integrate with the DMC mastering console, allowing you to incorporate your stereo rig with any multi-channel setup.
In the Box SPL MC16 Multi-Channel Monitor Controller (Black) Label Foil Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SPL MC16 Multi-Channel Monitor Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSPL MC16 Specs | Inputs | Input A
1 x DB25 (8 channels)
8 x XLR
Input B
2 x DB25 (16 channels) | | Outputs | 16 x XLR | | Fuses | 230 VAC / 50 Hz: 1 A
115 VAC / 60 Hz: 2 A | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
