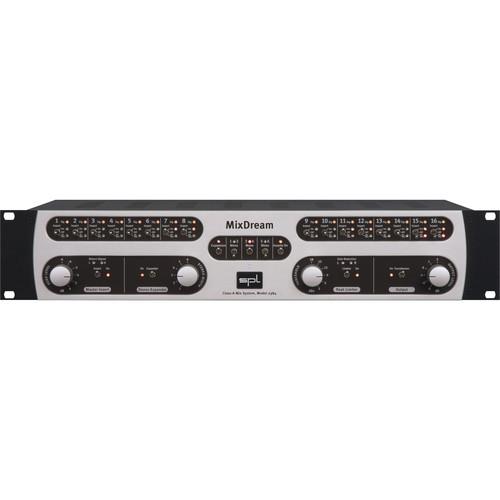

Product description The SPL MixDream Model 2384 16x2 Analog Summing Mixer is a 2U rackmountable analog summing mixer that can expand the functionality of any digital console or DAW. The device uses sophisticated discrete Class A/60 V stages for analog summing before analog to digital conversion. It can sum up to 16 audio tracks to a stereo signal, and additional units can be cascaded together for projects that require even higher track counts. This model also features 16 balanced inserts, allowing for the integration of analog outboard effects with individual and overall hard bypass relays.
The 60-volt (±30V) rails of the unit's Class A technology with circuitry based on the most modern analog components. This ensures an extremely high slew rate, a very low noise level of -97 dBu and a dynamic range of 125 dB, which puts the unit on par with among the best analog consoles.
In addition to being used for mixing, the unit can also be used for discrete mastering from single tracks or subgroups as well as up-sampling audio to SACD/DVD-A formats.
The back panel of the unit features nine 8-channel DB25 connectors: Input channels 1 to 8, Insert Send 1 to 8, Insert Return 1 to 8, Input Channels 9 to 16, Insert Send 9 to 16, Insert Return 9 to 16, Direct Out 1 to 8, Direct Out 9 to 16, Direct Out 1 to 8, Direct Out 9 to 16, and Master Ins./Expansion In/Out 2. For outputs the unit includes left and right gold plated XLR-3M connectors for both the master output and monitor output. - Reduction of A/D Conversions
- Sums analog inserts before conversion, thus saving 14 critical analog to digital conversions
- Mastering
- Allows for multi-channel sessions to be mixed and processed in analog, which is especially helpful when an engineer wants to upsample to SACD or DVD-A
- Controls For Stereo Summing
-
- Adjustable insert level
- Stereo expansion control with infinite gradation
- Adjustable analog peak limiter
- Adjustable outputs with added in/out switching of Lundahl transformers
- Three Stage Toggle Switch Per Channel
- Allows you to choose whether or not a channel should be added to the mix buss or removed from the mix while remaining available for re-recording through the unit's direct output
- Common Bypass for All Inserts
- Allows for all inserts to be switched on or off globally
- Connection of Sampler, Keyboards etc
- Enables direct connection of samplers, keyboards, and other expanders into the mixer
- Mono Controls
- Allows for channels 1 & 2, 3 & 4, and 5 & 6 to be switched to mono so that two signals can be converted by a paired D/A
- Input Channels
- Features 16 balanced inputs that are connected over two DB 25 connectors
- Insert Sends
- Provides 16 balanced insert sends to which peripheral processors may be connected
- Insert Returns
- Provides 16 balanced insert return channels to be routed back
- Direct Outs
- Includes a balanced direct output after the insert loop
- Master/Insert/Expansion/Out 2
- Functions as either a master insert send and return, an additional stereo output, or for linking two or more summing mixers via DB 25 socket
- Master Output
- Provides stereo mixdown for a recording device through two master output XLR connections with gold plated contacts that function as either electronically balanced or transformer balanced outputs
- Monitor Output
- Runs parallel with the master output and provides a separate monitoring of the stereo mixdown
- Expansion
- Provides an additional stereo input which is routed through and marked as two channels of the master insert/expansion out 2 DB25 socket
- Stereo Expander
- Electronically determines which parts of a stereo canvas are left and right and then doubles and L-R contents and mixes them in reverse phase to the opposite channel
- Peak Limiter
- Protects subsequent A/D converter stages from clipping with variable threshold based on a discrete transistor circuitry with a musically optimized curve similar to the way tube processor or analog tape machines limit signals
- Transformer On
- Routes signal to either electronically balanced connections or high quality Lundahl transformers
In the Box SPL MixDream Model 2384 16x2 Analog Summing Mixer Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SPL MixDream Model 2384 16x2 Analog Summing Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSPL SPLMIXD Specs | I/O | 1x DB25 input channels 1 to 8 connector
1x DB25 insert send 1 to 8 connector
1x DB25 insert return 1 to 8 connector
1x DB25 input channels 9 to 16 connector
1x DB25 insert send 9 to 16 connector
1x DB25 insert return 9 to 16 connector
1x DB25 direct out 1 to 8
1x DB25 direct out 9 to 16
1x DB25 master ins./expansion in/out 2
2x XLR-3M monitor output (left and right)
2x XLR-3M master output (left and right) | | Frequency Range | < 1 to 220,000 Hz (-1 dB) | | THD+N | -104 dBU (20 to 22,000 Hz with input level of +10 dBu | | Noise Level | -97 dBu (20 to 22,000 Hz A-weighted) | | Line Max Input Level | +28 dBu | | Max Output | +28 dBu (at 1 kHz, THD+N -95 dB) | | Dynamic Range | 125 dB (20 to 22,000 Hz A-weighted) | | Crosstalk | 97 dB (At 1,000 Hz with input level of +10 dBu) | | CMRR | ‹70 dB (at 1 kHz, Input Level +10 dBu) | | Input Impedance | 10 kOhm | | Output Impedance |
For master/monitor out w/o transformer, insert send: 82 ohm
For master/monitor out with transformer: 65 ohm | | Power Consumption | 75 W | | Rack Space | 2 | | Dimensions (W x H x D) | 19.00 x 3.50 x 9.50" (482.0 x 88.0 x 237.0 mm) | | Weight | 14.52 lb (6.60 kg) |
