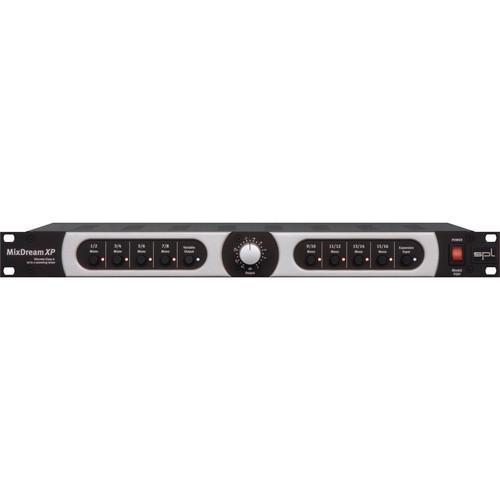

Product description The SPL MixDream XP 16x2 Analog Summing Mixer is a 1U rackmountable analog summing mixer that can expand the functionality of any digital console or DAW. The device uses sophisticated discrete Class A/60 V stages for analog summing before analog to digital conversion. It can sum up to 16 audio tracks to a stereo signal, and additional units can be linked together or connected to MixDream model 2384 for projects that require even higher track counts.
The 60-volt (±30V) rails of the unit's Class A technology with circuitry based on the most modern analog components. This ensures an extremely high slew rate, a very low noise level of -97 dBu and a dynamic range of 125 dB, which puts the unit on par with among the best analog consoles.
In addition to being used for mixing, the unit can also be used for discrete mastering from single tracks or subgroups as well as up-sampling audio to SACD/DVD-A formats.
The back panel of the unit features two 8-channel DB25 inputs, two XLR-3F expansion inputs, two XLR-3M main outputs, and two XLR-3M monitor outputs. The front panel of the device features stereo/mono push buttons for channels 1/2, 3/4, 5/6, 7/8, 9/10, 11/12, 13/14, and 15/16. A variable output button switches the input level from unity and activates the output gain knob and an expansion input button engages a second MixDream XP connected to the rear panel expansion port. In the Box SPL MixDream XP 16x2 Analog Summing Mixer Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SPL MixDream XP 16x2 Analog Summing Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSPL SPLMIXDXP Specs | Frequency Range | < 1 to 200,000 Hz (-1 dB) | | THD+N | -103 dBU (20 to 22,000 Hz with input level of +10 dBu | | Noise Level | -97 dBu (20 to 22,000 Hz A-weighted) | | Line Max Input Level | +28 dBu | | Max Output | +28 dBu (at 1 kHz, THD+N -95 dB) | | Dynamic Range | 125 dB (20 to 22,000 Hz A-weighted) | | Crosstalk | -90 dB (At 1,000 Hz with input level of +10 dBu) | | CMRR | ‹70 dB (at 1 kHz, Input Level +10 dBu) | | Input Impedance | 10 kOhm | | Output Impedance | 65 ohm | | Power Consumption | 36 W | | Rack Space | 1 | | Dimensions (W x H x D) | 19.00 x 1.76 x 9.50" (482.0 x 44.0 x 237.0 mm) | | Weight | 7.81 lb (3.55 kg) | | | | Package Weight | 11.05 lb | | Box Dimensions (LxWxH) | 21.1 x 14.9 x 5.0" |
