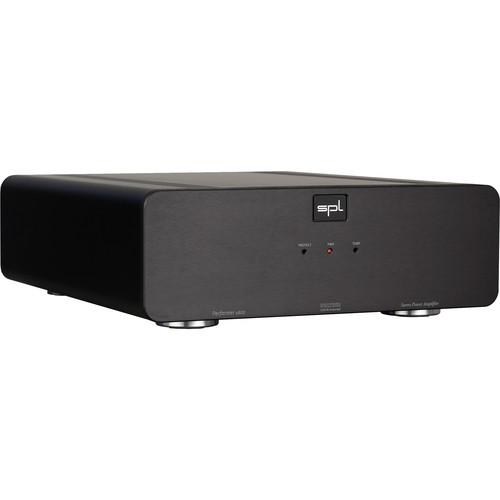

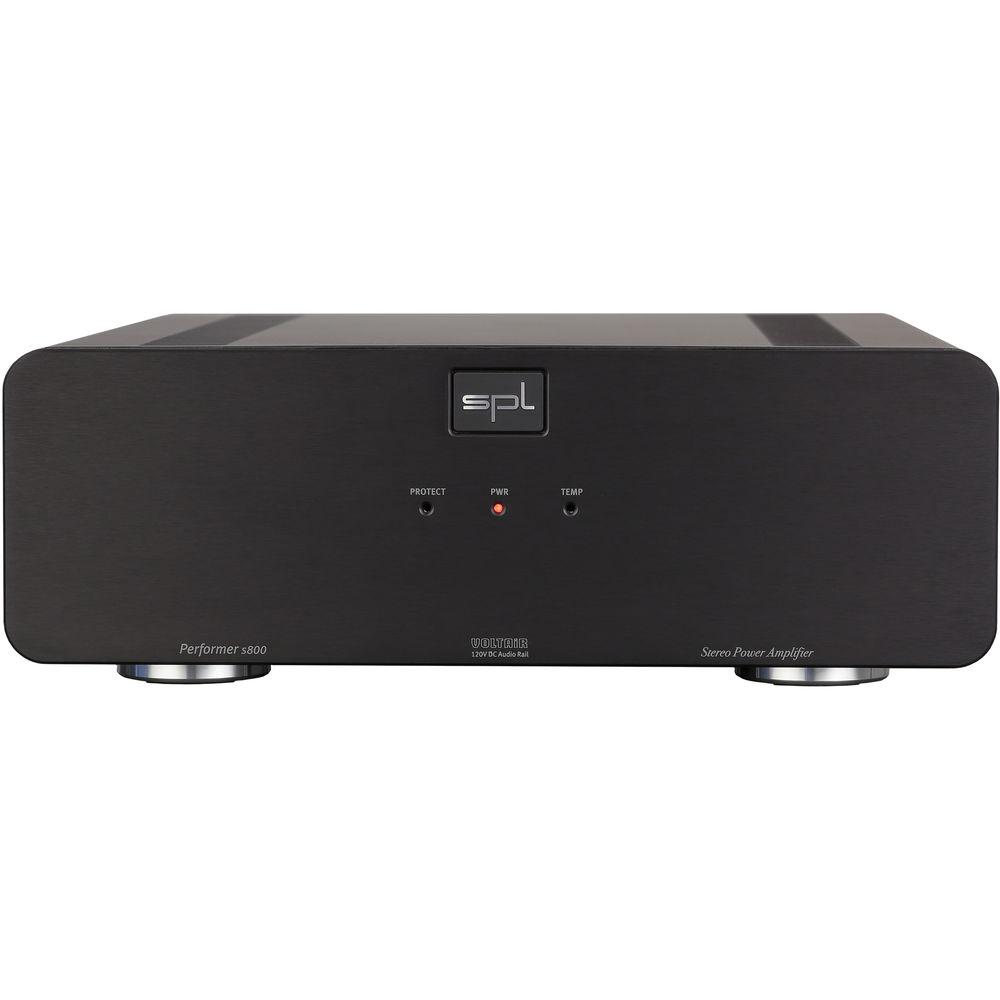

Product description The black Performer s800 Stereo Power Amplifier from SPL is an ultra-compact power amplifier. Thanks to the VOLTAiR technology, this power amplifier has absolute control over the speakers up to their load limits. In stereo operation, this bi-polar transistor power amplifier delivers up to 2 x 285W into 4 Ohms speakers. In Bridge Mode it delivers 450W into an 8 Ohms speaker. In addition, it is equipped with slave-through outputs and input trim switches.The Performer s800 amplifier uses the VOLTAiR technology (120V rail technology) to offer a high voltage of 120V (+/-60 VDC) and large dynamic range of over 140 dB. The 120V electronics operate quasi 'idle' even at highest audio levels and impulse peaks. They never operate on the limit and therefore never get stressed. The music presents itself with serenity so that you feel pleasant when listening.The amplifier is equipped with an 855VA toroidal transformer. The power supply is equipped with a capacitance of 40800 µF for screening and electricity storage for faithful reproduction of impulse peaks.The Performer s800 amplifier has a protection circuit against DC voltage at the output and against overheating. At about 158°F at the heat sink, the amplifier will switch off. After the temperature has fallen below 131°F, the amplifier automatically switches on again. The temperature LED at the front indicates the overheating.If DC is detected at the outputs, the amplifier automatically switches off. DC voltage can be an indication for a defect in the power stage. The amplifier does not automatically switch on again. It needs to be disconnected from the power (on/off). The Protect LED at the front indicates that the protection circuit is activated and the power stage has been switched off.The amplifier is equipped with Neutrik XLR input and output connectors for balanced operation. The input signal is passively routed to the output connector to feed a second power amplifier for bi-wiring. The input can be lowered via a Trim rotary switch from 0 to -5.5 dB in 0.5 dB steps. This is useful in order to achieve an optimal stereo sweet-spot in acoustically sub-optimal rooms. In bi-wiring line-ups or in the studio with multi-speaker sets, it allows for leveling speakers with different efficiency to equal loudness.The speaker outputs are gold plated binding post connectors. The terminals can accommodate both banana plugs, as well as a strand of up to 4mm diameter. To protect against short-circuits, the binding post is equipped with a clear plastic cap.The Performer s800 amplifier features a 3.5mm mono jack designated as AMP CTR (amplifier control). With the appropriate cable, the amplifier can be connected to a pre-amplifier. This automatically helps in switching on the amplifier when you turn on the pre-amplifier. - Bi-polar transistor power amplifier with VOLTAiR 120V technology
- 2 x 285W into 4 Ohms and 2 x 185W into 8 Ohms (stereo operation)
- 450W into 8 Ohms (mono operation - Bridge Mode)
- Toroidal transformer with 855VA
- 40800 µF capacitance for faithful reproduction of impulse peaks
- Gold-plated loudspeaker binding posts with protection covers

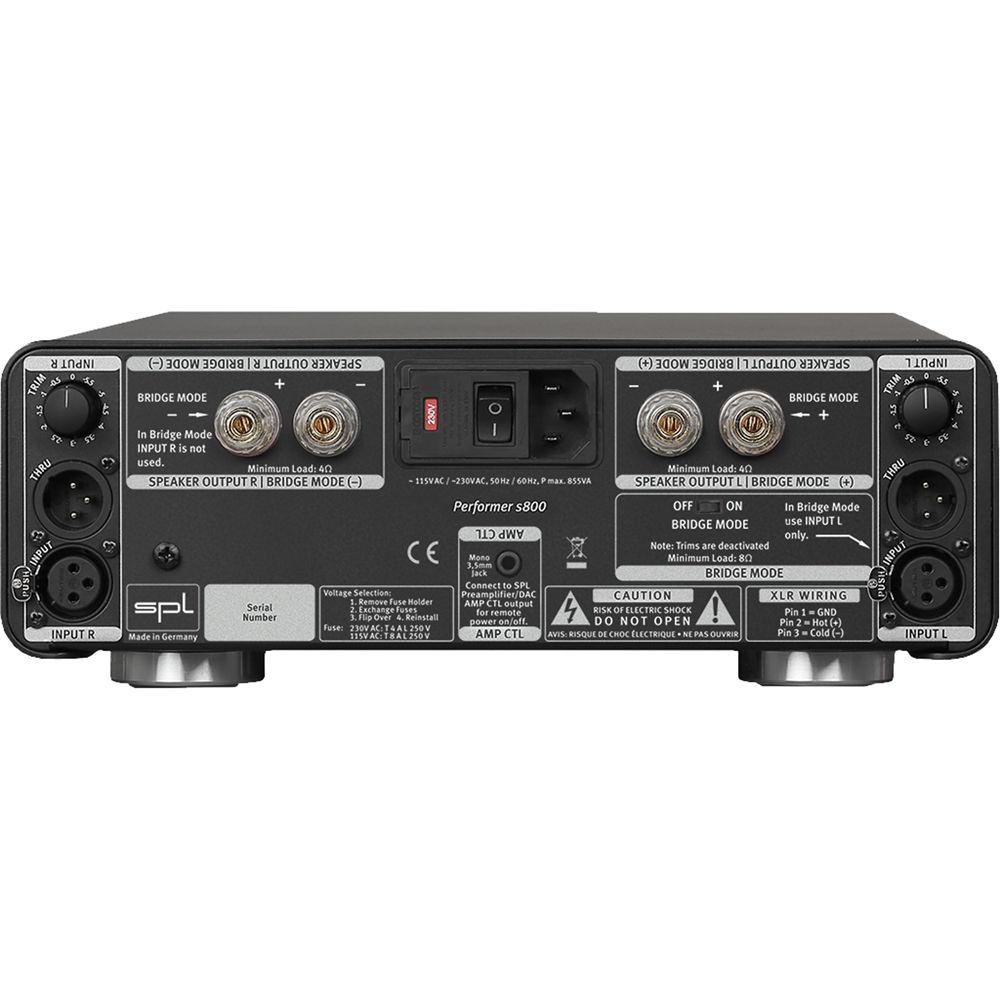

- Neutrik XLR connectors for balanced inputs and outputs
- Direct slave-through of the input (e.g. for bi-wiring)
- Input trim switch for attenuation up to -5.5 dB in 0.5 dB steps
- AMP CTL connector for remote power on/off switching (e.g. with Director or Phonitor x)
- Overheat protection with Temp LED
- DC (direct current) voltage protection with Protect LED
Table of Contents
|
Upload User Manual
Have you got an user manual for the SPL Performer s800 Stereo Power Amplifier with VOLTAiR Technology in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSPL s800 Specs | Line Inputs and Outputs | Neutrik XLR, balanced, Pin 2 = (+)
Input Impedance: 10 kOhms
Input Trimming: 0 to -5.5 dB in 0.5 dB steps
Input Sensitivity: +6 dBu
Output Impedance: Defined by connected device
Crosstalk: -110 dB (@1 kHz) | | Loudspeaker | Outputs
2 Pairs of binding posts with ø 0.15" (4 mm) cable hole (screwable) and banana plug
Fully encapsulated | | Output Power | 2 x 285 Wrms into 4 Ohms
2 x 185 Wrms into 8 Ohms
1 x 450 Wrms into 8 Ohms in bridge mode | | Output Voltage | 74 V peak-to-peak (stereo)
180 V peak-to-peak (bridge)
35 Vrms (stereo)
86 Vrms (bridge) | | Output Impedance | < 0.031, 20 Hz to 20 kHz (stereo)
< 0.043, 20 Hz to 20 kHz (bridge) | | Damping Factor | > 300, 20 Hz to 20 kHz, at 8 Ohms (stereo)
> 190, 20 Hz to 20 kHz, at 8 Ohms (bridge) | | Frequency Response | 9 Hz to 100 kHz +0, -0.03 dB
< 9 Hz to 200 kHz +0, -3 dB | | Signal-to-Noise Ratio | > 118 dB (wide-band, unweighted, referred to full power output)
> 123 dB (A-weighted) | | Gain | 26 dB (stereo)
32 dB (bridge) | | Total Harmonic Distortion | < 0.03 % at 1 kHz, at 185 W, 8 Ohms
< 0.19 % at 20 kHz, at 185 W, 8 Ohms
< 0.011 % at 1 kHz, at 450 W, 8 Ohms
< 0.12 % at 20 kHz at 450 W, 8 Ohms | | Power Supply | Mains Voltage (Switchable): 115 VAC / 60 Hz or 230 VAC / 50 Hz
Fuses: 115 V: T 8 A or 230 V: T 4 A
Power Consumption: Maximum 900 VA
Idle Power Consumption: 40 W | | Dimensions (W x H x D) | With Feet: 10.95 x 3.94 x 14.57" (278 x 100 x 370 mm) | | Weight | 28.2 lb (12.8 kg) |
