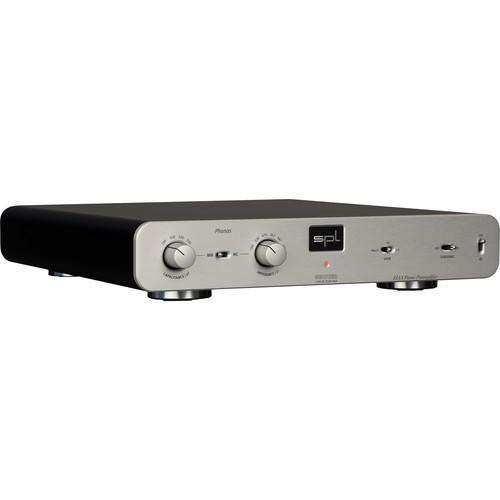

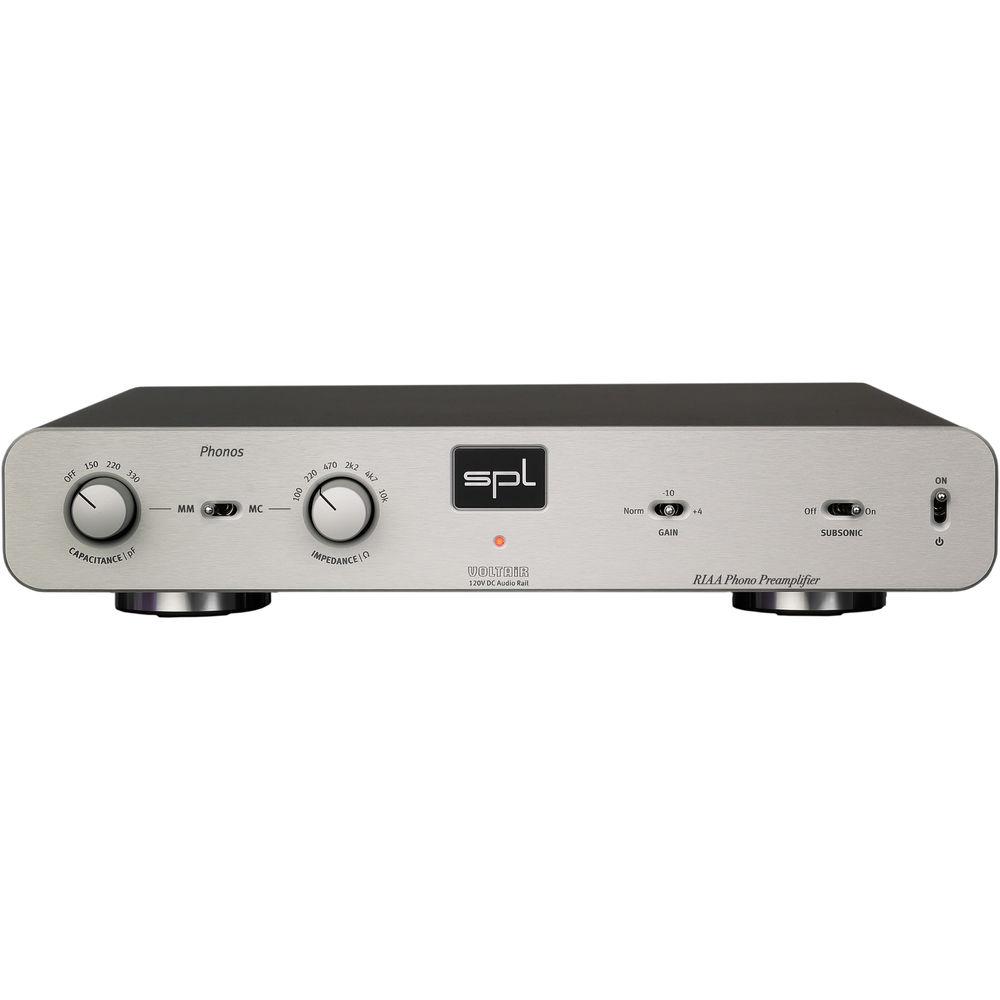

Product description The silver Phonos RIAA Phono Preamplifier from SPL is designed for use with record players using either MM (moving magnet) or MC (moving coil) cartridges. The equalization curve is according to RIAA and suitable for all vinyl records. It offers up to 71.5 dB gain for MC cartridges and 50 dB gain for MM cartridges.
The preamplifier uses proprietary VOLTAiR technology (120V rail technology) to offer a high voltage of 120V (+/-60 VDC). The 120V electronics operate quasi 'idle' even at highest audio levels and impulse peaks. They never operate on the limit and therefore never get stressed. The music presents itself with a pleasant serenity and realness.
The purpose of the RIAA equalization, which is a form of pre-emphasis on recording and de-emphasis on playback, is to permit greater recording times by decreasing the mean width of each groove, to improve sound quality, and to reduce the groove damage that would otherwise arise during playback. - 120V rail phono preamplifier for record players
- Suitable for MM (Moving Magnet) and MC (Moving Coil) cartridges
- Maximum preamplification of 51 dB (MM) and 70 dB (MC)
- Styroflex condensers used throughout the RIAA equalizer

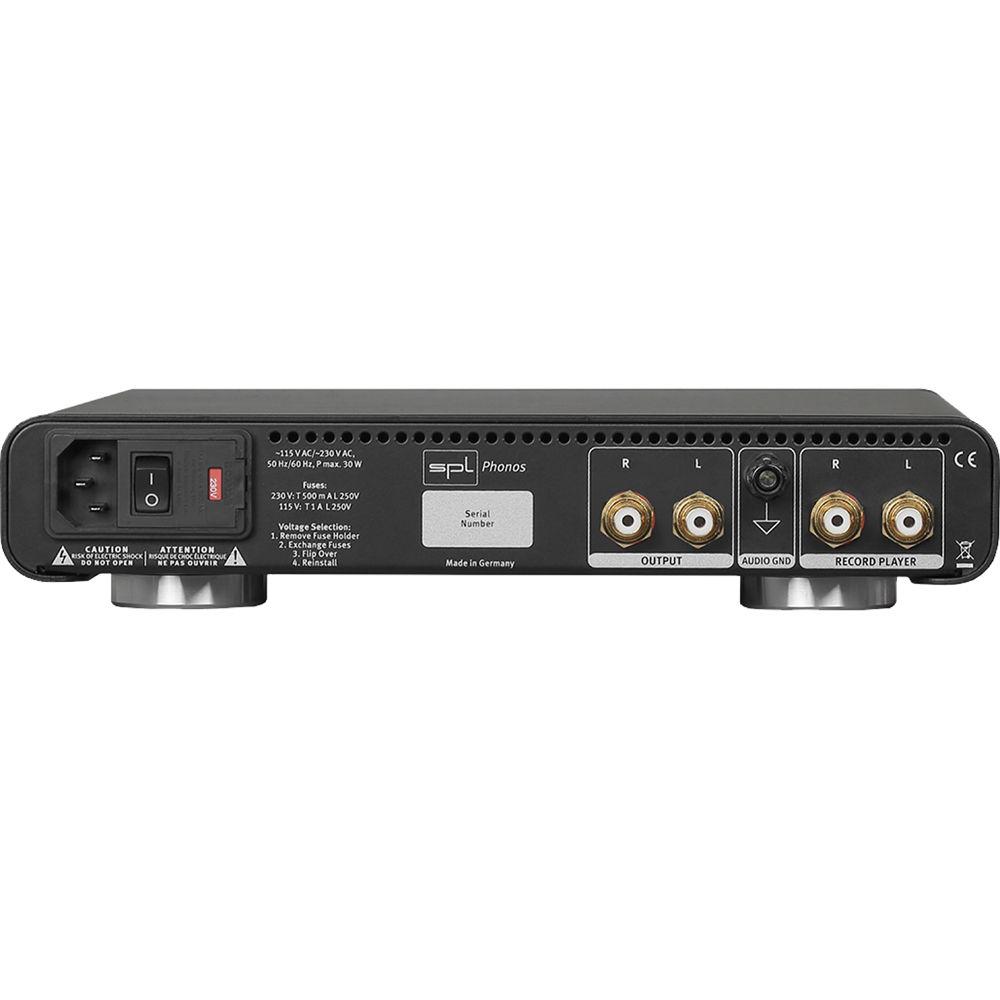

- Gold-plated RCA inputs and outputs
- Audio ground connection for record player
- Switchable rumble filter (subsonic)
- Linear power supply with toroidal transformer
- Front and lid made from aluminum
- Housing made from sheet metal
In the Box SPL Phonos - RIAA Phono Preamplifier with VOLTAiR Technology (Silver) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SPL Phonos - RIAA Phono Preamplifier with VOLTAiR Technology in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSPL SPLPHONOS-SL Specs | Inputs and Outputs | RCA, unbalanced, gold-plated
Input Impedance (MM): 100 kOhms
Input Impedance (MC): Switchable
Output Impedance: < 5 Ohms
Crosstalk: -80 dB (at 1 kHz) | | Filter | RIAA equalizer (after Douglas Self) | | Gain | Switchable: Normal, -10 dB, +4 dB | | Preamplifier | Moving Magnet (MM) Preamplifier
Amplification: 46 dB (Normal), 36 dB (-10 dB), 50 dB (+4 dB)
Switchable Capacitance: Off, 150 pF, 220 pF and 330 pF
Noise (A-weighted): -85.3 dB | | Amplifier | Moving Coil (MC) Amplifier
Amplification: 67 dB (Normal), 56 dB (-10 dB), 71.5 dB (+4 dB)
Impedances: 100, 220, 470, 2k2, 4k7, 10 kOhms
Noise (A-weighted): -61.7 dB | | Operating Voltage | Internal Operating Voltage: +/- 60 V | | Power Supply | Mains Voltage (Switchable): 230 VAC / 50 Hz or 115 VAC / 60 Hz
Fuses: 230 V: T 500 mA; 115 V: T 1 A
Power Consumption: Maximum 30 VA
Standby Power Consumption: 0.7 W | | Dimensions (W x H x D) | With Feet: 10.95 x 2.24 x 13" (278 x 57 x 330 mm) | | Weight | 7.05 lb (3.2 kg) |
