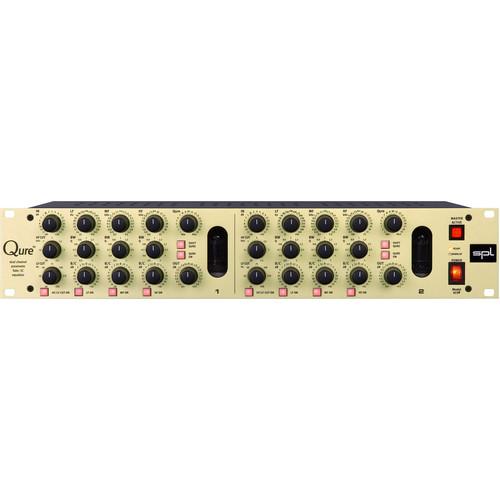

User Manual for SPL Qure Parametric 3-Band Equalizer Click to enlarge the picture
Contents of the user manual for the SPL Qure Parametric 3-Band Equalizer
- Product category: Equalizers SPL
- Brand: SPL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SPL Equalizers
|
User manual for the SPL Qure Parametric 3-Band Equalizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SPL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SPL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SPL product will considerably shorten its lifespan!
|
Product description Designed for stereo or dual mono applications, the Qure from SPL is a three-band parametric equalizer replete with input/output controls, high- and low-cut filters, and a proprietary Qure control which facilitates an enhanced sense of presence-both in mono and stereo instruments-while simultaneously reducing the harshness often associated with incorrectly achieved performances in the digital realm.
This EQ provides balanced XLR and 1/4" jacks for inputs and outputs, as well as a proportional-Q principle for precise manipulation of frequencies between 15 Hz and 21 kHz. Furthermore, its dynamic range of 113 dB renders the Qure quite useful at the mastering stage of any production. - Tube Functionality
- The Qure employs tube circuitry featuring a 12AX7-LPS double triode valve in a mixed current/voltage coupling mode. This stage is clip-resistant and produces a musical tube-THD spectrum.
- Proportional-Q
- Conventional constant-Q designs keep the amplitude of a signal constant, regardless of the adjusted bandwidth. This often results in unmusical boosting of frequencies ancillary to your specific target. Proportional-Q, however, reduces the amplitude of a processed frequency band as the bandwidth broadens. As such, there is no need to constantly readjust the boost/cut control when varying the bandwidth.
- Other Notable Features
-
- Proportional-Q operation.
- Variable HF and LF cut filters.
- Variable input gain (-12 dB to +18 dB).
- Variable output gain (-7 dB to +4 dB).
- Hard-bypass for each filter band and both cut filters.
- Master relay hard-bypass for entire unit.
- Stepped potentiometers throughout for easy recall.
- Central grounded shield layout.
- Toroidal transformer power supply.
In the Box SPL Qure Parametric 3-Band Equalizer External Power Supply Limited 2-Year Warranty Limited 90-Day Warranty on Tubes Table of Contents
|
Upload User Manual
Have you got an user manual for the SPL Qure Parametric 3-Band Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSPL SPLQURE Specs | | | Amplifier | Electronically balanced (differential), transformerless | | Nominal Input Level | +6 dB | | Input Impedance | 22 kOhms | | Output Impedance | < 600 Ohms | | Maximum Input Level | +14 dBu | | Maximum Output Level | +20 dBu | | Minimum Load Impedance | 600 Ohms | | Other Features | Relay hard bypass
Power fail safety | | | | Frequency Response | 10 Hz to 100 kHz (100 kHz = -3 dB) | | Frequency Range | 15 Hz to 21 kHz | | CCMR | > -80 dB @ 1 kHz | | THD & Noise | 0.01855% @ 1 kHz | | S/N | CCIR 468-3: -85 dBu
A-weighted: -99 dBu | | | | Transformer | Toroidal, 35 VA | | Voltage Selector Switch | 115 VAC / 230 VAC | | Fuses | 500 mA (230 V/50 Hz), 1000 mA (115 V/60 Hz) | | Ground Lift | Switchable | | | | Housing Style | EIA 19" / 2 RU | | Dimensions (WxHxD) | 19.0 x 3.5 x 9.3" / 48.2 x 8.8 x 23.7 cm | | Weight | 10.8 lb / 4.9 kg |
