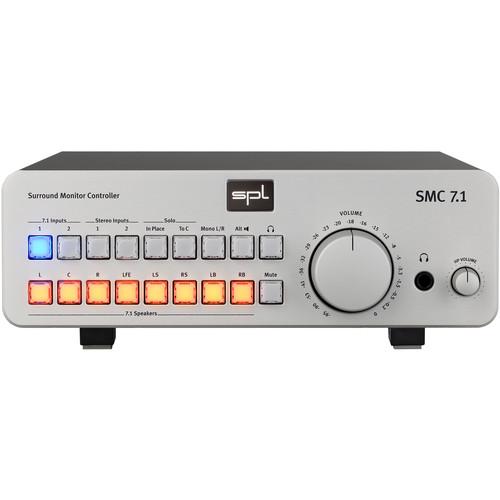

Product description The silver SMC 7.1 Surround Monitor Controller from SPL is an analog studio monitor controller for 7.1 and stereo sources. Each of the two balanced 7.1 inputs and the two balanced stereo inputs can be routed to the balanced 7.1 output. The L/R signals of the active input can optionally be routed to the alternative stereo output. With the high-quality headphones amplifier, you can listen to the L/R signal of the active input as well as to single channels of the 7.1 inputs.
The eight-ganged potentiometer controls the volume of all channels directly with no control circuits. The SMC 7.1 is built up in high-quality analog technique, which ensures a linear frequency response up to 100 kHz as well as an outstanding dynamic range. - Extensive routing options
- High-quality headphone amplifier
- Solo in place / solo to center
In the Box SPL SMC 7.1 Surround Monitor Controller (Silver) Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SPL SMC 7.1 Surround Monitor Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSPL SPLSMC71SL Specs | Inputs | 25-Pin Sub-D (TASCAM-Standard)
Impedance: 20 kOhms
CMR: -82 dB
Max. Input Level: +22 dB
3-Pin XLR (Neutrik Symmetrisch)
Impedance: 20 kOhms
CMR: -82 dB
Max. Input Level: +22 dB | | Outputs | 25-Pin Sub-D (TASCAM-Standard)
Frequency Range: 10 Hz to 150 kHz (-3 dB)
Crosstalk at 1 kHz: -92 dB
THD & N: 0,001% (0 dBu, 1 kHz, 100 kOhms load)
Noise (A-Weighted): -93 dB
Dynamic Range: 115 dB
3-Pin XLR (Neutrik Symmetrisch)
Frequency Range: 10 Hz to 150 kHz ( -3 dB)
Crosstalk at 1 kHz: -92 dB
THD & N: 0,001% (0 dBu, 1 kHz, 100 kOhms load)
Noise (A-Weighted): -93 dB
Dynamic Range: 115 dB
Headphones:
1/4" / 6.35 mm TRS connector
Pin Wiring: Tip = Left, ring = right, sleeve = GND
Impedance: 22 kOhms
Frequency Range: 10 Hz to 80 kHz ( -3 dB)
Crosstalk at 1 kHz: -70 dB
THD & N: 0,001% (0 dBu, 1 kHz, 40 kOhms load)
Noise (A-Weighted): -93 dB
Dynamic Range: 113 dB | | Analog | ±18 V power supply | | Voltage | 230 VAC @ 50 Hz
115 VAC @ 60 Hz | | Fuses | 230 V = T 500 mA; 115 V = T 1 A | | Power Consumption | 25 VA max | | Dimensions | 11.0 x 4.6 x 13.1" (27.8 x 10.3 x 33.3 cm) | | Weight | 9.04 lb (4.1 kg) | | | | Package Weight | 12.15 lb | | Box Dimensions (LxWxH) | 21.1 x 14.7 x 7.6" |
