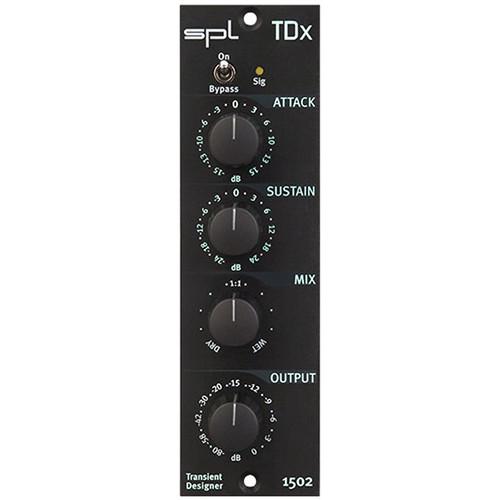

Product description The SPL TDx 500 Series Transient Designer Module is installed in a single slot of the 500-series rack module and is used to amplify or attenuate attacks and prolong or shorten the sustain. It features the Differential Envelope Technology (DET) that allows level-independent dynamic processing of signal paths by calculating differences in generated envelopes. These envelopes track the curve of the original signal to provide optimal results. Therefore, only two controls per channel are required to allow you to completely reshape the attack and sustain characteristics of a sound. Thanks to the MIX (parallel mix) feature, you can continuously blend between the processed and unprocessed signal. The transient designer is suitable for use in professional recording, project or home studios, and in sound-reinforcement applications. Applied to single instruments or loops, it allows you to create new sounds and/or effects. - Features
-
- Single-slot 500-series rack module
- Extended SPL’s original Transient Designer circuitry
- Parallel Mix Control: Blend between processed and unprocessed signal
- Attack Control: Amplify or attenuate attack of a signal by up to 15 dB
- Sustain Control: Prolong or shorten the sustain of a signal by up to 24 dB
- Differential Envelope Technology (DET) for level-independent envelope processing
- Output level control
- On/bypass switch
- Signal LED
- Made in Germany
- Applications
-
- Processing drum and percussion sounds
- Drums: ambience
- Softening guitar sounds
- Bass: Staccato vs legato
- Backings
Table of Contents
|
Upload User Manual
Have you got an user manual for the SPL TDx 500 Series Transient Designer Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSPL SPLTDXSERI500 Specs | | | Type | Balanced | | Impedance | 20 kOhms | | Maximum Input Level | +22 dBu | | | | Type | Balanced | | Impedance | 150 Ohms | | Maximum Output Level | +22 dBu | | | | Frequency Range | 10 Hz to 100 kHz | | Noise | -93 dBu (A-weighted) | | Dynamic Range | 116 dB | | CMRR | >-80 dBu (at 1 kHz, 0 dBu input level, unity gain) | | THD+N | 0.03% (0 dBu input level/unity gain) | | Current Consumption | 30 mA at +/- 16 VDC | | Form Factor | Singe Slot 500-series rack module | | Weight | 1.53 lb (0.65 kg) | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 11.9 x 10.0 x 3.4" |
