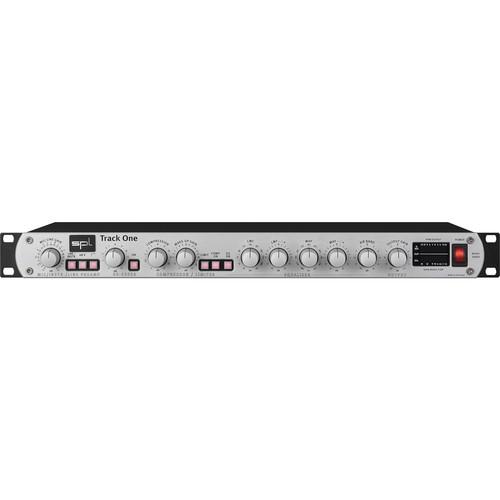

Product description The Model 2960 Track One from SPL is a complete mono channel strip designed for the audio enthusiast searching for an attractive price/performance ratio in channel strips. It includes a number of go-to processors that will spruce up almost whatever you process through it. They include optimized preamp stages for all types of microphones and instruments, SPL's De-Esser processing, compressor limiter equalizer stages, an output stage with metering, and balanced XLR and 1/4" TSR connectors. The Track One is a capable and potent tool for the recording of voices and instruments and is engineered to perform in broadcast industry settings, and for studio over live, to post production applications.
The Track One is a channel strip that is designed to be easy to use for vocal and instrument recordings in studio, broadcast or live applications. The controls are reduced to the necessary basics to assist in user-friendliness. Therefore, working with the Track One can be time-saving in live situations.
The Track One is an attractive alternative to built-in console preamps and processing tools. All the modules are immediately at hand for fast interactions, no patching necessary. Recording a voice and providing improved clarity, detail and intelligibility van be addressed almost in a matter of seconds.
The microphone input can be equipped with an optional transformer input stage. These transformers already amplify the microphone signals by factor 5 - the preamps are relieved by this factor at any gain setting. The balanced output can also be equipped with optional transformers. Another option is a digital output via a 24 bit/96 kHz A/D converter card.
The compressor can be linked with a second Track One compressor for coherent stereo operation of two units.
A front panel display shows metering for output level and gain reduction and all includes other status LEDs.
A special feature of the printed circuitry layout is the central star ground wiring scheme: Disturbing electronic influences that could affect the ground paths are minimized in that the audio-ground is separated from the ground of the remaining equipment. This leads, in the truest sense of the word "clean," to considerably improved tonal quality. The scatter free toroidal transformer supplies the equipment with the necessary voltages and forms the basis for a clean electrical supply to all parts of the circuitry. - Preamp stages for numerous microphone types and instruments
- Output stage with metering
- Balanced XLR and 1/4" TRS connectors
- Optional A to D converter ***
Table of Contents
|
Upload User Manual
Have you got an user manual for the SPL Track One Channel Strip in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSPL SPLTRACONE Specs | Microphone Input | Frequency response: 10 Hz to 200 kHz (200 kHz = -3 dB)
Common mode rejection: 1 kHz: -80 dB / 10 kHz: -68 dB (at -20 dBu)
THD & N
(amplification A-weighted)
20 dB -97.5 dBu
40 dB -91.0 dBu
65 dB -69.6 dBu
Dynamic response: 115 dB | | Instrument Input | Frequency response: 10 Hz to 180 kHz (180 kHz = -3 dB)
THD & N
(amplification A-weighted)
7 dB -98.4 dBu
20 dB -95.8 dBu
42 dB -77.2 dBu
Input impedance Line: 12 kOhm / Instrument: 1 MOhm
Max. input level Line: +28 dBu / Instrument: +12 dBu
Dynamic response: 115 dB | | Outputs | Maximum output level XLR / jack: +20 dBu
Output impedance: 50 ohms | | Digital Interface | Available in the optional 24 Bit / 192 kHz AD Converter Module 1090 | | Power Supply | Toroidal transformer: 15 VAC
Fuses: 315 mA (230 V/50 Hz)
mA (115 V/60 Hz) | | Dimensions (W x H x D) | Standard EIA-19" Rack mountable 19" / 1U housing: 19.0 x 1.7 x 8.3" (482 x 44 x 210 mm) | | Weight | 6.8 lb (3.1 kg) | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 21.0 x 15.0 x 5.0" |
