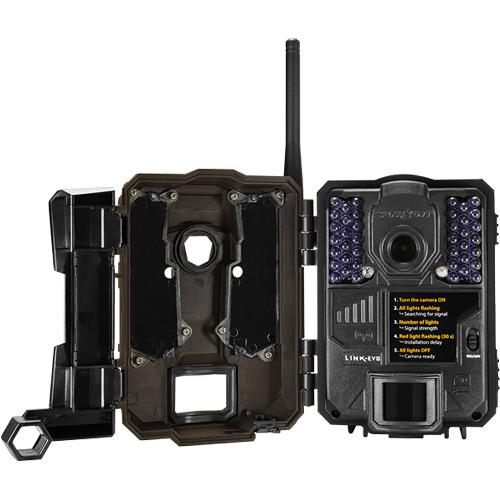

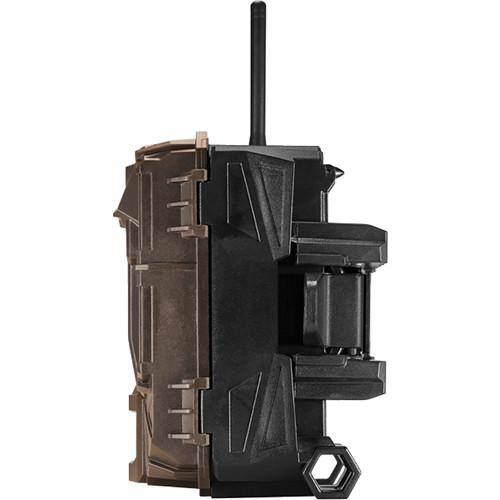

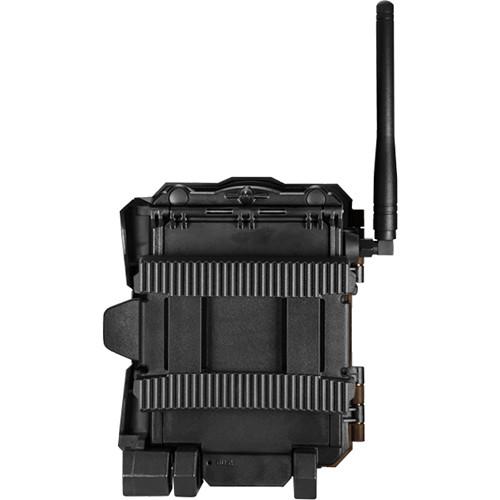

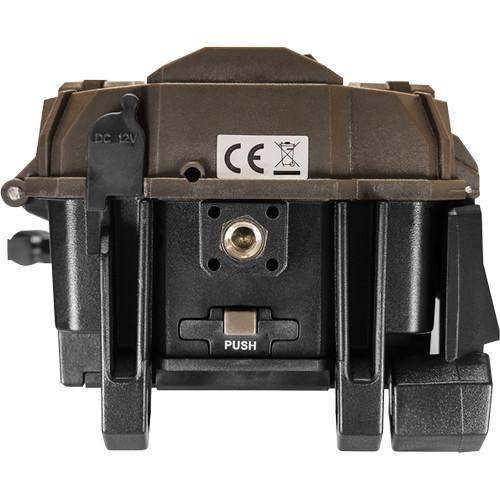

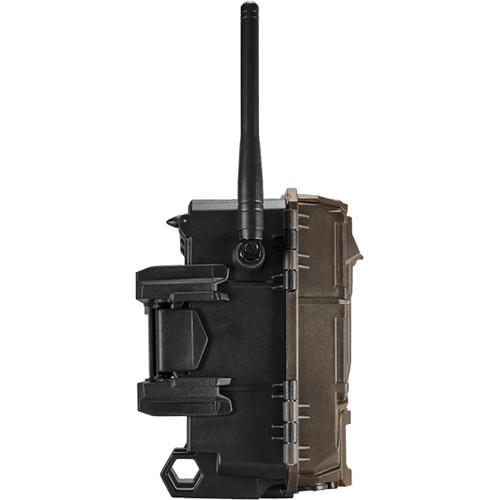

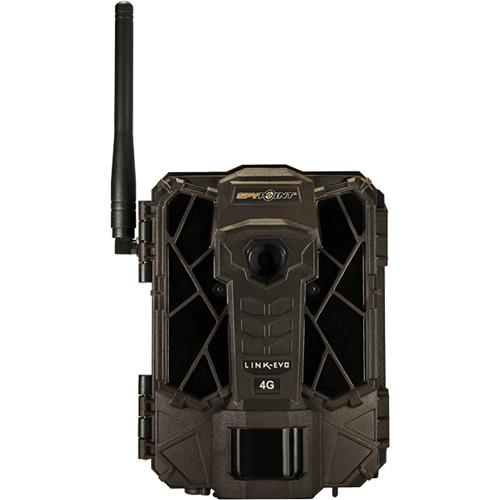

User Manual for Spypoint LINK-EVO-V Cellular Trail Camera Click to enlarge the picture
Contents of the user manual for the Spypoint LINK-EVO-V Cellular Trail Camera
- Product category: Trail/Wildlife Cameras Spypoint
- Brand: Spypoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Spypoint Trail/Wildlife Cameras
 |
User manual for the Spypoint LINK-EVO-V Cellular Trail Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Spypoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Spypoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Spypoint product will considerably shorten its lifespan!
|
Product description No need to trek into the field and pull a memory card — you can view and organize images from your game camera remotely with the Spypoint LINK-EVO-V Cellular Trail Camera. Simply open the free app on your smartphone or tablet to learn what's happening on your hunting grounds. The LINK-EVO-V takes 12MP photos and 720p video, and automatically transmits photos to your phone. It uses a Verizon data plan (monthly charges apply) for full service and comes with a pre-activated SIM card for easy setup. But you can also choose Spypoint's free plan, which transmits up to 100 photos per month at no charge. Either way, the camera comes with 30 days of free unlimited photos. The LINK-EVO-V's detection range can be set anywhere from 5-80 feet. Trigger speed is a quick 0.3 seconds, and the 42-LED, low-glow infrared flash has a 90' range, yet won't spook game at night. Multi-shot mode offers two photos per detection, and the Photo-First feature takes a still image at the start of any video recording. Video length can be set between 10 and 90 seconds. You can also use the time lapse mode for big-picture observation. Your still images will have a time stamp with useful information including date, time, temperature, and moon phase. Images and video are saved on a user-supplied SD/SDHC memory card up to 32GB. The camera runs on eight user-provided AA batteries, comes with a tree mounting bracket and strap, and is equipped with a standard 1/4"-20 tripod mount. - Connectivity
-
- Remotely view images and manage camera via Verizon cellular data plan
- Pre-activated SIM card for easy set up
- Optional free plan provides up to 100 photos per month
- Unlimited free photos for 30 days
- Photo and Video Resolution
-
- Still Image Resolution: 12MP
- Format: JPEG
- Video: 1280 x 720p
- Operating Modes
-
- Photo: Up to two images per detection
- Timelapse mode for long-term observation
- Video: Duration 10-90 seconds
- Photo-First Option: Takes still image before shooting video
- Motion Sensor
-
- Passive infrared motion sensor
- Detection Range: 80'
- Trigger Speed: 0.3 sec
- Multi-Shot Mode: Camera captures up to 2 images per trigger event
- Flash
-
- Built-in, infrared flash with 42 LEDs and a 90' range for covert nighttime illumination
- Memory
-
- Records photos and videos to user-supplied SD/SDHC memory cards up to 32GB
- Power
-
- Runs on 8 user-supplied AA batteries
- Mounting
-
- Tree mounting bracket & strap
- Standard 1/4"-20 threaded hole
- Hole for security cable
- Durability
-
- Rugged, weatherproof housing protects camera from the elements over extended periods of outdoor use
UPC: 887157017026 In the Box Spypoint LINK-EVO-V Cellular Trail Camera (Verizon) SIM Card Mounting Bracket Mounting Strap Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Spypoint LINK-EVO-V Cellular Trail Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpypoint LINK-EVO-V VERIZON Specs | Camera Type | Surveillance/Time Lapse/Trail/Wildlife | | | | Image Resolution | 12 MP | | Image File Format | JPEG | | Built-In Flash | 42 x Black Low-Glow 850 nm Wavelength IR LEDs | | Effective Flash Range | 90' / 27.4 m | | Time/Date Stamp | Yes | | | | Sensor Type | Passive Infrared (PIR) | | Detection Range | 80' / 24.4 m | | Trigger Speed | 0.3 Seconds | | | | Burst Capability | 2 Images per Trigger | | | | Video Recording | Yes | | File Format | AVI | | Video Format | 1280 x 720p | | | | Cellular Network Supported | Verizon LTE (Monthly Charges Apply) | | | | Memory Card Type | SDHC (Up to 32 GB) | | Battery Type | 8 x AA (Not Included) | | Security | Holed for Locking | | Mounting | 1/4"-20 Female
Mounting Strap (Included) | | | | Package Weight | 1.31 lb | | Box Dimensions (LxWxH) | 8.95 x 6.1 x 3.95" |
