User Manual for Spypoint LINK-S-V Solar Cellular Trail Camera Click to enlarge the picture
Contents of the user manual for the Spypoint LINK-S-V Solar Cellular Trail Camera
- Product category: Trail/Wildlife Cameras Spypoint
- Brand: Spypoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Spypoint Trail/Wildlife Cameras
 |
User manual for the Spypoint LINK-S-V Solar Cellular Trail Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Spypoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Spypoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Spypoint product will considerably shorten its lifespan!
|

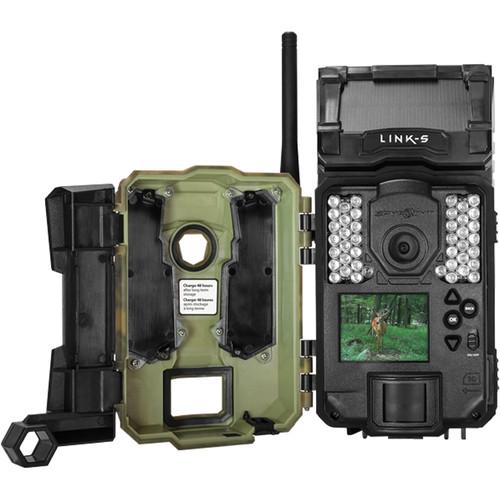

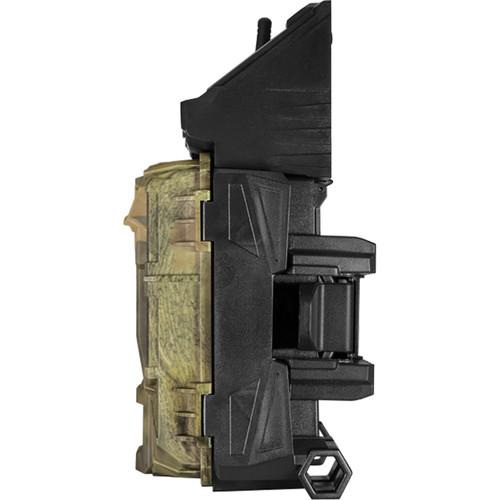

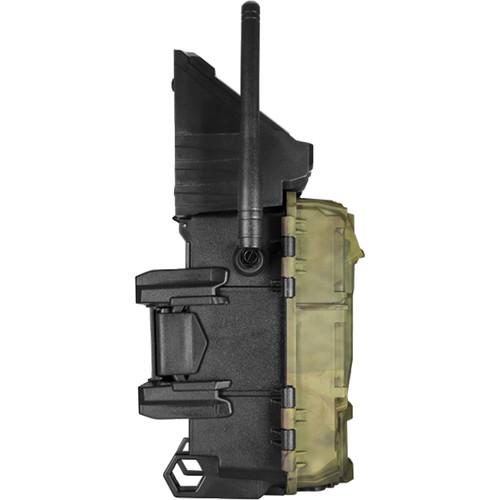

Product description With the Spypoint LINK-S-V Solar Cellular Trail Camera, your days of trekking into the field to pull memory cards and replace batteries are over. The LINK-S automatically sends the images it captures to your smartphone or tablet, and its built-in solar panel keeps the internal battery charged. The LINK-S-V takes 12MP photos and 720p video with sound, and transmits them using a Verizon data plan (monthly charges apply). You can also choose Spypoint's free plan, which transmits up to 100 photos per month at no charge. Either way, the camera comes with 30 days of free unlimited photos. A pre-activated SIM card is included for easy setup. The camera's passive infrared motion detector has a range of 100 feet, and its trigger speed is 0.7 seconds. The 42-LED, low-glow infrared flash has a 100-foot range, yet won't spook game at night. Multi-shot mode offers three photos per detection, and the Photo-First feature takes a still image at the start of any video recording and sends it to your account. The time lapse mode affords big-picture, long-term observation. Your still images will have a time stamp with useful information including date, time, temperature, and moon phase. Video length can be set between 10 and 90 seconds. Images and videos are saved on a user-supplied SD/SDHC memory card up to 32GB (only photos are transmitted via the data plan). Because the camera is designed to run on solar power, no user-supplied batteries are necessary, but you can use 8 AA batteries as an optional or backup power source. The camera comes with a tree mounting bracket and strap, and is equipped with a standard 1/4"-20 tripod mount. - Connectivity
-
- Remotely view images and manage camera via Verizon cellular data plan
- Pre-activated SIM card for easy set up
- Optional free plan provides up to 100 photos per month
- Unlimited free photos for 30 days
- Power
-
- Built-in solar panel and internal rechargeable battery
- Can run on 8 user-supplied AA batteries
- Photo and Video Resolution
-
- Still Image Resolution: 12MP
- Video: 1280 x 720p
- Operating Modes
-
- Photo: Up to three images per detection
- Time lapse mode for long-term observation
- Video: Duration 10-90 seconds
- Photo-First Option: Takes still image before shooting video
- Motion Sensor
-
- Passive infrared motion sensor
- Detection Range: 100'
- Trigger Speed: 0.7 sec
- Flash
-
- Built-in, infrared flash with 42 low-glow LEDs and a 100' range for covert nighttime illumination
- Memory
-
- Records photos and videos to user-supplied SD/SDHC memory cards up to 32GB

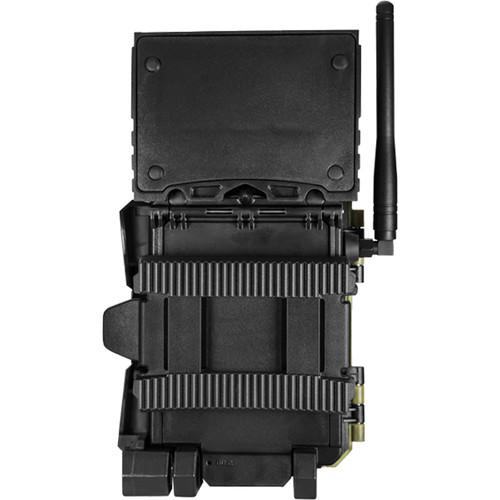

- Mounting
-
- Tree mounting bracket & strap

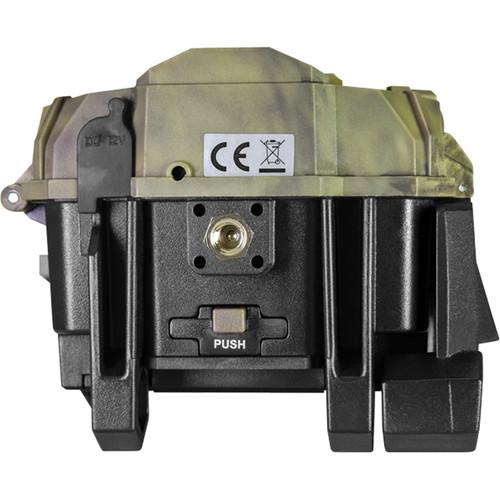

- Standard 1/4"-20 threaded hole
- Hole for security cable
- Durability
-
- Rugged, weatherproof housing protects camera from the elements over extended periods of outdoor use

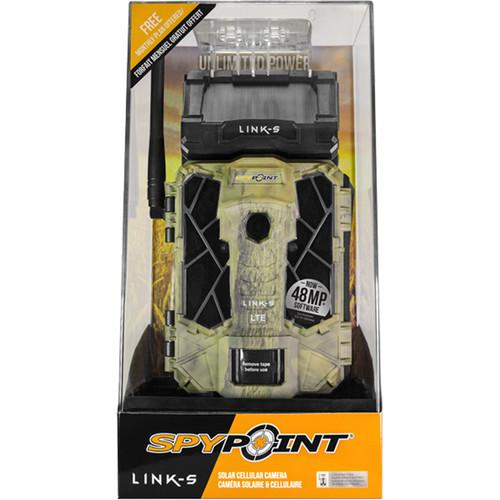

UPC: 887157017040 In the Box Spypoint LINK-S-V Solar Cellular Trail Camera (Verizon) SIM Card Mounting Bracket Mounting Strap Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Spypoint LINK-S-V Solar Cellular Trail Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpypoint LINK-S-V VERIZON Specs | Camera Type | Surveillance/Time Lapse/Trail/Wildlife | | | | Image Resolution | 12 MP | | Image File Format | JPEG | | Built-In Flash | 42 x Black Low-Glow 850 nm Wavelength IR LEDs | | Effective Flash Range | 100' / 30.5 m | | Time/Date Stamp | Yes | | | | Sensor Type | Passive Infrared (PIR) | | Detection Range | 100' / 30.5 m | | Trigger Speed | 0.7 Seconds | | | | Burst Capability | 3 Images per Trigger | | | | Video Recording | Yes | | File Format | AVI | | Video Format | 1280 x 720p | | | | Cellular Network Supported | Verizon LTE (Monthly Charges Apply) | | | | Memory Card Type | SDHC (Up to 32 GB) | | Battery Type | 1 x Built-In
8 x AA (Not Included, Optional) | | Security | Holed for Locking | | Mounting | 1/4"-20 Female
Mounting Strap (Included) | | | | Package Weight | 2.285 lb | | Box Dimensions (LxWxH) | 9.9 x 5.2 x 3.95" |
