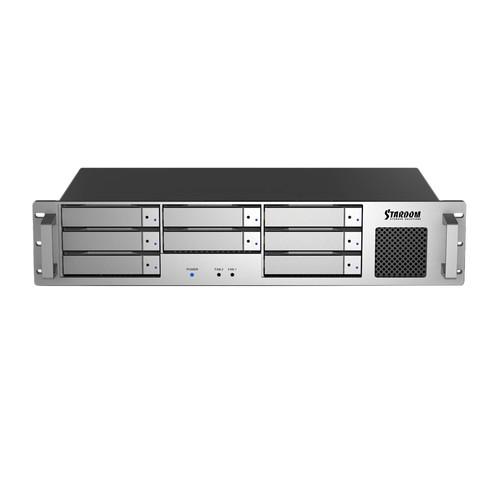

User Manual for STARDOM Deck DT8-U5 8-Bay Mini-SAS JBOD Enclosure Click to enlarge the picture
Contents of the user manual for the STARDOM Deck DT8-U5 8-Bay Mini-SAS JBOD
- Product category: Hard Drive Enclosures & Docks STARDOM
- Brand: STARDOM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for STARDOM Hard Drive Enclosures & Docks
|
User manual for the STARDOM Deck DT8-U5 8-Bay Mini-SAS JBOD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any STARDOM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official STARDOM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a STARDOM product will considerably shorten its lifespan!
|
Product description The Deck DT8-U5 8-Bay Mini-SAS JBOD Enclosure from Stardom is an 8-bay enclosure that is natively compatible with JBOD. This enclosure is equipped with eight 3.5" SAS/SATA III drive bays and offers connectivity options using its dual Mini-SAS ports. Using its Mini-SAS ports, it is able to connect with external RAID controllers, such as the ATTO R680, the Areca ARC-1882X, and the Areca ARC-1223-8X. Once connected to a compatible external controller, the DT8-U5 can operate in a variety of RAID modes, including RAID 0, 5, 6, 1+0, 50, and 60. With the appropriate RAID and hard drives, users will be able to work with two concurrent uncompressed 10-bit HD video streams or the transmission of a single 2K DPX file.
The DT8-U5 uses a space-saving form factor that also includes a stackable design, allowing it to be utilized directly on desks, while also being compatible with racks. This enclosure is cooled using dual 9cm fans and powered via an internal power supply that operates using 100-240 VAC at 50-60 Hz, single phase. Included are dual Mini-SAS cables, an AC power cable, an accessory kit, a rackmount handle, and foot pads. General Features - Industrial Design & Cooling
- The solid industrial design structure and its aluminum alloy outer shell not only provides a strong hard disk mounting environment, but the quick-cooling case and the two 9cm quiet cooling fans make rapid cooling and system stability possible even when 8 hard disks are running concurrently
- Convenient and Safely Removable Hard Drive Module
- DT8-U5's hard drive tray design features a security lock and a safety structure that locks the hard drive, which effectively allows simple and convenient maintenance for sensitive data. In case of hard drive damage, users do not have to worry about data maintenance as they merely have to swap it with a hard drive of identical model and capacity, which reduces the waiting time incurred during the device repair period
- Short-Rack Design
- The DT8-U5's short-rack structural design is not only suitable to for desktop use, but also for installation on server racks. Because its depth is less than half of a normal rack, the installation can be combined with a mobile rack without occupying extra space
- Built-in Power Supply
- The DT8-U5 is equipped with a 300W, high-conversion-efficiency internal power supply that complies with safety standards; this allows users to not be affected by insufficient power for the use of hard drives with different standards
UPC: 884826503897 In the Box STARDOM Deck DT8-U5 8-Bay Mini-SAS JBOD Enclosure 2 x Mini-SAS Cables AC Power Cable Accessory Kit Rackmount Handle Foot Pads Table of Contents
|
Upload User Manual
Have you got an user manual for the STARDOM Deck DT8-U5 8-Bay Mini-SAS JBOD Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSTARDOM DT8-U5 Specs | Number of Bays | 8 x 3.5" | | Connections | 2 x Mini SAS (SFF-8088) (SAS-2 (6 Gb/s)) | | Compatible Drive Interface | SAS, SATA III | | RAID Modes | RAID JBOD | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | 200 W | | | | Operating Temperature | 50 to 95°F / 10 to 35°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -4 to 116°F / -20 to 47°C | | | | Cooling | 2 x 90 mm Fans | | Dimensions (W x H x D) | 3.7 x 16.8 x 9.1" / 95.0 x 427.0 x 230.0 mm | | Weight | 14.3 lb / 6.5 kg | | | | Package Weight | 14.35 lb | | Box Dimensions (LxWxH) | 21.2 x 13.1 x 7.5" |
