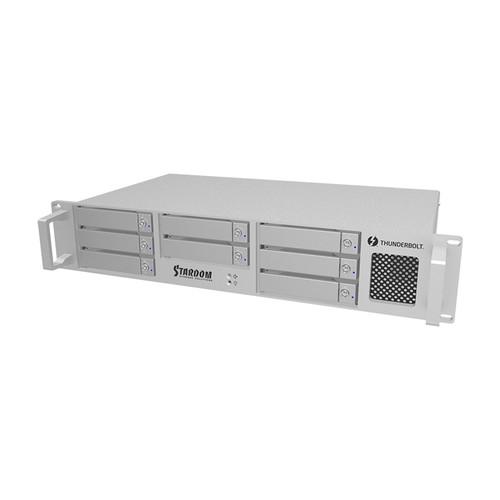

User Manual for STARDOM DR8-TB2 8-Bay Thunderbolt 2 RAID Enclosure Click to enlarge the picture
Contents of the user manual for the STARDOM DR8-TB2 8-Bay Thunderbolt 2 RAID
- Product category: Hard Drive Enclosures & Docks STARDOM
- Brand: STARDOM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for STARDOM Hard Drive Enclosures & Docks
 |
User manual for the STARDOM DR8-TB2 8-Bay Thunderbolt 2 RAID contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any STARDOM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official STARDOM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a STARDOM product will considerably shorten its lifespan!
|
Product description The DR8-TB2 8-Bay Thunderbolt 2 RAID Enclosure from STARDOM offers eight drive bays, two Thunderbolt 2 ports, and a hardware RAID controller to let you create a custom storage solution for creative environments. The enclosure connects to your system via an included Thunderbolt cable and has two Thunderbolt 2 interfaces to support daisy-chaining with up to five Thunderbolt devices. Each of the eight drive bays comes with a lockable tray that is compatible with 2.5" and 3.5" hard drives and SSDs. Once drives are installed, the DR8-TB2 is equipped with a hardware RAID controller, so you can configure your drives in a RAID 0, 1, 10, 5, 6, 50, 60, or JBOD mode.
STARDOM has equipped the DR8-TB2 with two 80mm fans that spin at variable speeds to cool your drives and internal components. For power, a 300W power supply is on board. In addition, the DR8-TB2 is designed with a 2RU form factor to fit in 19" server racks. - Thunderbolt 2.0
- The DR8-TB2 supports a Thunderbolt 2 (TB2) interface for fast data transfer speeds. The two Thunderbolt 2 ports transfer data at a rate of up to 20 Gb/s, which is 4 times faster than USB 3.0 or 2 times faster than USB 3.1. It also lets you daisy-chain up to 5 Thunderbolt devices together.
- Hardware RAID
- The DR8-TB2 is built with an easy-to-use hardware RAID engine that won't hurt system performance during RAID rebuilds. With RAID 5 or RAID 6 options, you can configure your drives for best data protection and performance.
- Easy Set Up
- With Marvell's MSU Tool, you could set up a RAID array using a user-friendly graphical interface. You could choose from one of the following 8 different RAID modes (RAID 6, 60, 5, 50, 1, 10, 0 and JBOD) to fit your needs.
- RAID 0 Mode
- Configuring your drives under RAID 0 provides up to 1300 MB/s transfer speeds.
- RAID 5 Mode
- RAID 5 mode requires three or more drives and provides both read-&-write efficiency and data protection. If one of your drives fails, your data is kept safe.
- RAID 6 Mode
- When compared to RAID 5, RAID 6 provides better data protection by allowing up to two drive failures. Four drives are required to support RAID 6.
- Drive Trays
- Each of the drive trays features a lock that helps prevent accidental drive extractions. In addition, the trays are compatible with 2.5" and 3.5" storage drives.
- SGPIO Compatible
- The DR8-TB2 supports the SGPIO (Serial General Purpose Input & Output) feature, which detects defective drives.
- Cooling
- For cooling, the DR8-TB2 features an aluminum chassis and comes with two 80mm fans. MCU is also on board to adjust the fan's speed based upon the internal temperature.
- Power
- The DR8-TB2 uses a UL/CE certified 300W power supply unit that provides a stable and efficient power output for all eight drives.
- 2RU Design
- The DR8-TB2 can be mounted into a 19" server rack.
UPC: 884826502371 In the Box STARDOM DR8-TB2 8-Bay Thunderbolt 2 RAID Enclosure Thunderbolt Cable Power Cord Accessory Kit CD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the STARDOM DR8-TB2 8-Bay Thunderbolt 2 RAID Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSTARDOM DR8-TB2 Specs | Interface | 2 x Thunderbolt 2 | | Drive Bays | 8 x 2.5"/3.5" SATA III | | RAID Modes | 0, 1, 10, 5, 6, 50, 60, JBOD | | Cooling | 2 x 80 mm variable speed fans | | Voltage Input | 100 to 240 VAC, 50/60 Hz, single phase | | Power Supply | 300 W | | Operating Temperature | 50 to 95°F / 10 to 35°C | | Storage Temperature | -4 to 113°F / -20 to 45°C | | Humidity (Non-Condensing) | 5 to 95% | | Dimensions (W x H x L) | 16.8 x 3.7 x 9.6" / 427 x 94 x 244.4 mm | | | | Package Weight | 13.05 lb | | Box Dimensions (LxWxH) | 21.2 x 15.5 x 7.2" |
