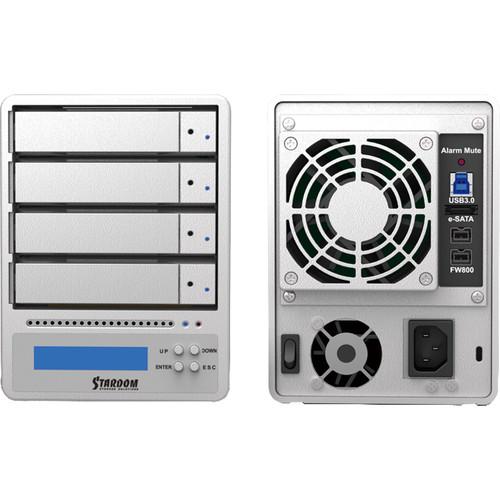

User Manual for STARDOM SOHORAID 4-Bay 2.5" 3.5" RAID Enclosure Click to enlarge the picture
Contents of the user manual for the STARDOM SOHORAID 4-Bay 2.5" 3.5" RAID
- Product category: Hard Drive Enclosures & Docks STARDOM
- Brand: STARDOM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for STARDOM Hard Drive Enclosures & Docks
|
User manual for the STARDOM SOHORAID 4-Bay 2.5" 3.5" RAID contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any STARDOM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official STARDOM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a STARDOM product will considerably shorten its lifespan!
|
Product description The SOHORAID 4-Bay 2.5"/3.5" RAID Enclosure from STARDOM provides four 2.5"/3.5" SATA III bays for hard drives or solid-state drives in either RAID 0, RAID 5, or JBOD configurations. Each drive can hold up to 8TB for a total of 32TB under RAID 0 mode and 24TB under RAID 5 mode. RAID 0 has high I/O speed with 100% capacity, however if a drive fails, all data is lost. RAID 5 allows 75% capacity, but data is not lost if a drive fails. The enclosure features two FireWire 800 ports, a USB 3.0 port, and an e-SATA port so it can be used in both MAC and Windows PC environments. Made of 3.5mm-thick aluminum, the body is tough and durable, and has a grip handle for mobility. - LCD display and LED indicators for system monitoring during operation
- Visual and audio alarms whenever failure occurs
- System monitoring: drive and data rebuilding failures, system temperature, fan failure, and hard drive failure
- 80mm fan with SMART functionality
UPC: 884826503811 In the Box STARDOM SOHORAID 4-Bay 2.5"/3.5" RAID Enclosure USB 3.0 Cable e-SATA Cable Firewire800 Cable Power Cord Accessory Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the STARDOM SOHORAID 4-Bay 2.5" 3.5" RAID Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSTARDOM SR4-WBS3+ Specs | | | Number of Bays | 4 x 2.5"/3.5" | | Connections | 1 x USB Type-B (USB 3.1 Gen 1 (5 Gb/s))
2 x 9-Pin FireWire (FireWire 800)
1 x eSATA | | Compatible Drive Interface | SATA III | | Form Factor | Portable | | Maximum RAID Transfer Rate | 256 MB/s (RAID 0)
252 MB/s (RAID 5) | | RAID Modes | RAID 0, 5, JBOD | | Hot-Swap Support | Yes | | Operating System Support | Windows, macOS/OS X | | OS Compatibility | Windows 7 or Later
macOS 10.10 or Later | | | | Total Raw Capacity | 32 TB (4 x 8 TB) | | Type | Hard Disk Drive | | Interface | SATA III | | | | Power Source | AC Adapter, FireWire, SATA, USB | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | 250 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -4 to 116°F / -20 to 46°C | | | | Material of Construction | Aluminum | | Cooling | 1 x 80 mm Fan | | Status Monitoring | LCD Screen, LED Indicator | | Dimensions (W x H x D) | 4.9 x 6.5 x 8.3" / 124.0 x 166.0 x 210.0 mm | | Weight | 10.1 lb / 4.6 kg | | | | Package Weight | 10.3 lb | | Box Dimensions (LxWxH) | 10.8 x 9.1 x 8.8" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
