User Manual for STARDOM Sohoraid DR2-TB2 2-Bay Thunderbolt 2 RAID Enclosure Click to enlarge the picture
Contents of the user manual for the STARDOM Sohoraid DR2-TB2 2-Bay Thunderbolt 2
- Product category: Hard Drive Enclosures & Docks STARDOM
- Brand: STARDOM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for STARDOM Hard Drive Enclosures & Docks
 |
User manual for the STARDOM Sohoraid DR2-TB2 2-Bay Thunderbolt 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any STARDOM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official STARDOM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a STARDOM product will considerably shorten its lifespan!
|

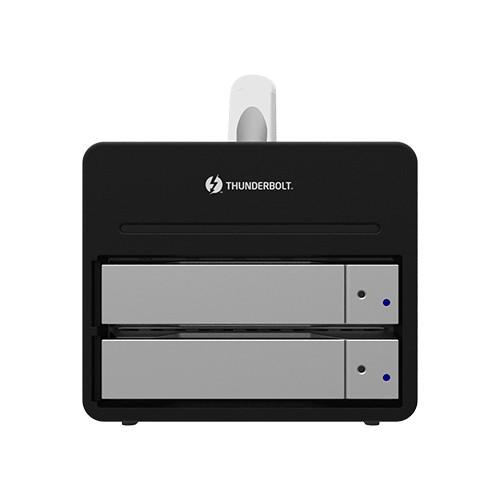

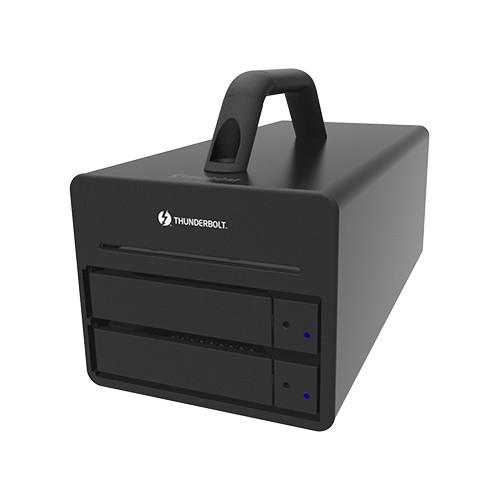

Product description The black Sohoraid DR2-TB2 2-Bay Thunderbolt 2 RAID Enclosure from STARDOM comes with two Thunderbolt 2 ports and two storage bays along with a built-in hardware RAID controller, letting you create a tailored storage pool of data for storing photos, backing up files, and editing videos. The two bays support ultra-fast SSDs or high-capacity hard drives in the size of 3.5" or 2.5". With onboard RAID, you can configure your drives in a RAID 1, 0, or JBOD mode. For preserving files in the event a drive fails, RAID 1 mode duplicates the data on both drives. Configuring SSDs in a RAID 0 mode can deliver transfers speeds of up to 724 MB/s. To keep up with these fast speeds, each of the two Thunderbolt 2 ports delivers data at a rate of up to 20 Gb/s. - Thunderbolt 2
- The two Thunderbolt 2 ports on DR2-TB2 features dual 20 GB/s channels for data transfer, which is up to four times faster than USB 3.0. Additionally, Thunderbolt 2 offers you expansion capabilities by daisy-chaining as many as six Thunderbolt devices to a single port.
- RAID
- The DT2-TB2 comes with a built-in hardware RAID controller that gives you three configuration modes: RAID 1 (Safe Mode), RAID 0 (Speed Mode), and JBOD (Two Independent Volumes) for you to choose based upon your needs.
- JBOD lets install two disks that have different volumes and use them independently. You can also use this mode to apply with other STARDOM modules.
- To maximize data protection. RAID 1 (Mirror) mode writes the same data to both drives. In the event of a drive failure, the second drive will take over.

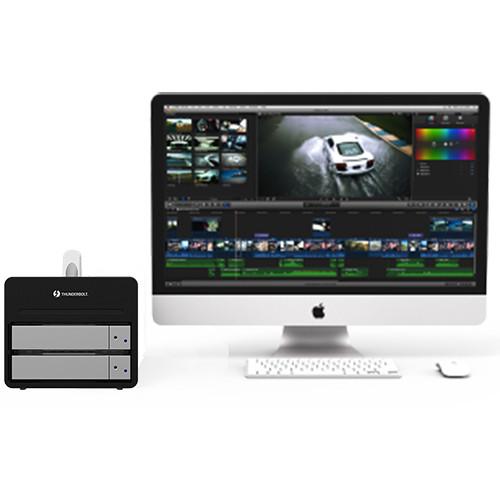

- RAID 0 mode enables the drives to attain up to 724 MB/s read speeds with the DR2-TB2's Thunderbolt transmission interface. Whether it is used for searching and editing photo galleries or video editing, this mode delivers a smooth and easy operation.
- Design
- The DR2-TB2 has a sleek exterior design with 0.1" of aluminum to shield your drives and to dissipate the heat created by the drives. Two fans are also on board to help remove heat.

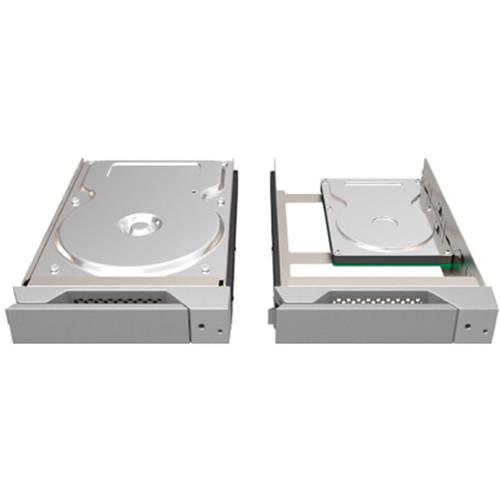

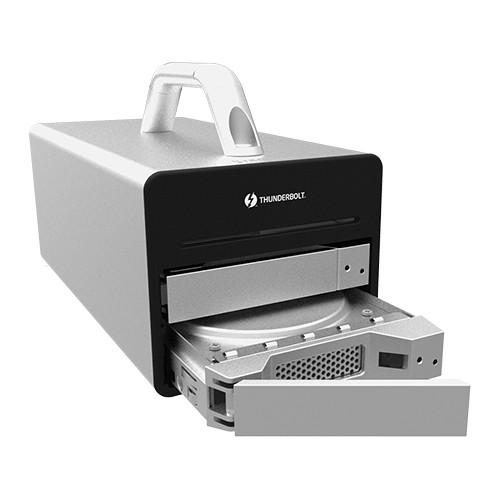

- Removable Trays
- The DR2-TB2 supports 3.5" and 2.5" SATA hard drives to deliver high-capacity data storage solutions. The removable trays are made from aluminum to protect your internal drives.
- Power Management
- The DR2-TB2 uses energy-efficient hardware components that work hand in hand with the Mac system to conserve power. It spins down hard drives and activates sleep mode after a period of inactivity.
In the Box STARDOM Sohoraid DR2-TB2 2-Bay Thunderbolt 2 RAID Enclosure (Black) Thunderbolt Cable Power Cord CD Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the STARDOM Sohoraid DR2-TB2 2-Bay Thunderbolt 2 RAID Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSTARDOM DR2-TB2-B Specs | Interfaces | 2 x Thunderbolt 2 ports | | Drive Support | 2 x 3.5"/2.5" SATA III (6 Gbps) HDD/SSD | | RAID Modes | RAID 0, 1, and JBOD | | Cooling | 2 x 40 mm quiet fans | | Voltage | 100 to 240 VAC, 50/60 Hz, single phase | | Power Consumption | 60 W of maximum continuous power | | Operating Temperature | 50 to 95°F / 10 to 35°C | | Storage Temperature | -4 to 113°F / -20 to 45°C | | Relative Humidity (non-condensing) | 5 to 95% | | Security | Anti-theft slot | | Dimensions (W x H x L) | 4.8 x 4.0 x 9.7" / 122 x 102 x 245.6 mm |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
