User Manual for STARDOM SOHORAID SR2-SB3 2-Bay USB 3.0 RAID Enclosure Click to enlarge the picture
Contents of the user manual for the STARDOM SOHORAID SR2-SB3 2-Bay USB 3.0
- Product category: Hard Drive Enclosures & Docks STARDOM
- Brand: STARDOM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for STARDOM Hard Drive Enclosures & Docks
|
User manual for the STARDOM SOHORAID SR2-SB3 2-Bay USB 3.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any STARDOM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official STARDOM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a STARDOM product will considerably shorten its lifespan!
|

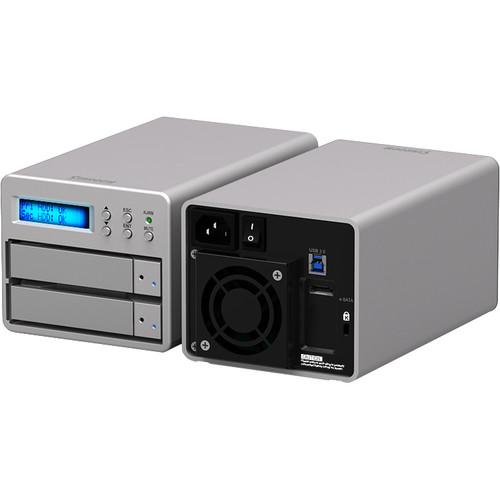

Product description The SOHORAID SR2-SB3+ 2-Bay USB 3.0 RAID Enclosure from Stardom provides you with two 2.5" or 3.5" SATA III bays for hard drives or solid-state drives, in either RAID 0 or RAID 1 configurations. With RAID 0, you'll have faster read and write times; however, should a drive fail, the whole array will fail. On the other hand, RAID 1 creates a copy of your data (mirroring) so in the event of a drive failure, the second one will still have your files. Secure your drives into the locking drive modules and insert them properly to prevent them from being accidentally removed. Once installed, you can use the front panel LCD display to configure and monitor the setup without any software installation. The SOHORAID can also be managed via the S.M.A.R.T GUI utility. Connect this enclosure to your system via USB 3.0 or e-SATA for speeds of up to 5 Gb/s or 6 Gb/s respectively. - RAID 1
- RAID 1 offers data protection by writing data to both drives simultaneously. Should a drive fail, the second drive will take over.
- RAID 0
- RAID 0 provides you with extra speed by evenly striping data across the two drives. Since there is no fault tolerance or redundancy, the whole array will fail should one drive fail.
- S.M.A.R.T Features
- The S.M.A.R.T feature is a GUI utility that you can use to check HDD status and replace failed or failing drives beforehand.
- Built-In LCD Panel
- Configure, setup, and monitor your RAID via the front panel. You won't need to install any software so it's ready to use right out of the box.
- Secure Drive Modules
- The drive modules are built with a locking mechanism to prevent them from accidentally sliding out or removed.
UPC: 884826500247 In the Box STARDOM SOHORAID SR2-SB3+ 2-Bay USB 3.0 RAID Enclosure USB 3.0 Cable e-SATA Cable Power Cable Accessory Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the STARDOM SOHORAID SR2-SB3 2-Bay USB 3.0 RAID Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSTARDOM SR2-SB3+ Specs | Number of Bays | 2 x 2.5"/3.5" | | Connections | 1 x USB Type-B (USB 3.1 Gen 1 (5 Gb/s))
1 x eSATA (SATA II (3 Gb/s)) | | Compatible Drive Interface | SATA III | | RAID Modes | RAID 0, 1 | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | 60 W | | | | Operating Temperature | 50 to 95°F / 10 to 35°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -4 to 116°F / -20 to 47°C | | | | Cooling | 1 x 60 mm Fan | | Dimensions (W x H x D) | 4.8 x 4.0 x 8.1" / 122.0 x 102.0 x 205.0 mm | | Weight | 6.1 lb / 2.8 kg | | | | Package Weight | 5.25 lb | | Box Dimensions (LxWxH) | 10.7 x 8.4 x 7.5" |
