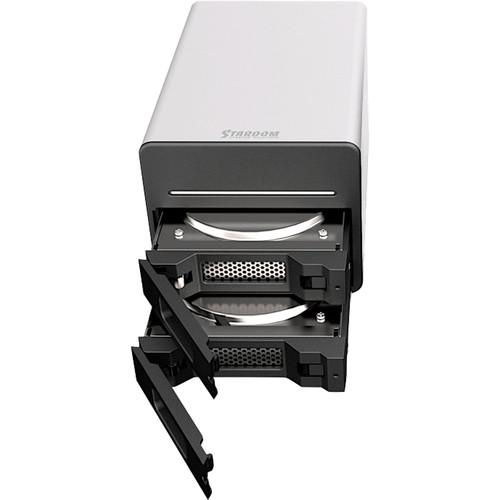

User Manual for STARDOM Sohotank ST2-SB3 2-Bay USB 3.0 RAID Array Click to enlarge the picture
Contents of the user manual for the STARDOM Sohotank ST2-SB3 2-Bay USB 3.0
- Product category: Hard Drive Enclosures & Docks STARDOM
- Brand: STARDOM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for STARDOM Hard Drive Enclosures & Docks
|
User manual for the STARDOM Sohotank ST2-SB3 2-Bay USB 3.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any STARDOM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official STARDOM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a STARDOM product will considerably shorten its lifespan!
|
Product description The Sohotank ST2-SB3 2-Bay USB 3.0 RAID Array from Stardom features two hot-swappable drive trays that can accommodate 3.5" and 2.5" SATA III HDDs or SSDs. It can support up to 8TB per drive for a max capacity of 16TB. Multiple RAID settings such as RAID 0, 1, and JBOD (independent), enable you to configure this device to your needs. Connect it to the host system via USB 3.0 and e-SATA. Before using the ST2-SB3's e-SATA port, make sure that the host supports the port multiplier function in order for system to identify all the drives. By using the USB 3.0 interface and a RAID 0 configuration, the Sohotank can achieve read speeds of up to 330 MB/s. Performance will vary depending on your system and the drives installed. With an aluminum unibody design and a built-in low-noise fan, the Sohotank will keep your drives protected, cool, and operational. -
- Hardware RAID enables high transmission speeds and cross-platform compatibility
- Multiple RAID configurations: RAID 0, 1, and JBOD (independent)
- Removable hard drive trays for plug-and-play convenience
- Unibody aluminum casing protects your drives from impact
- Low-noise fan keeps your drives cool and operational
- Supports up to 8TB per slot for a total capacity of 16TB
In the Box STARDOM Sohotank ST2-SB3 2-Bay USB 3.0 RAID Array USB 3.0 Cable e-SATA Cable Power Cable & Adapter Accessory Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the STARDOM Sohotank ST2-SB3 2-Bay USB 3.0 RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSTARDOM ST2-SB3 Specs | Number of Bays | 2 x 2.5"/3.5" | | Connections | 1 x USB Type-B (USB 3.1 Gen 1 (5 Gb/s))
1 x eSATA (SATA II (3 Gb/s)) | | Compatible Drive Interface | SATA III | | RAID Modes | RAID 0, 1, JBOD | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | 60 W | | | | Operating Temperature | 50 to 95°F / 10 to 35°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -4 to 116°F / -20 to 47°C | | | | Cooling | 1 x 60 mm Fan | | Dimensions (W x H x D) | 4.8 x 4.0 x 8.1" / 122.0 x 102.0 x 205.0 mm | | Weight | 6.0 lb / 2.7 kg |
