User Manual for Starlight Xpress Trius SX-16 CCD Imaging Camera Click to enlarge the picture
Contents of the user manual for the Starlight Xpress Trius SX-16 CCD Imaging
- Product category: Accessories Starlight Xpress
- Brand: Starlight Xpress
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Starlight Xpress Accessories
 |
User manual for the Starlight Xpress Trius SX-16 CCD Imaging contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Starlight Xpress product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Starlight Xpress user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Starlight Xpress product will considerably shorten its lifespan!
|

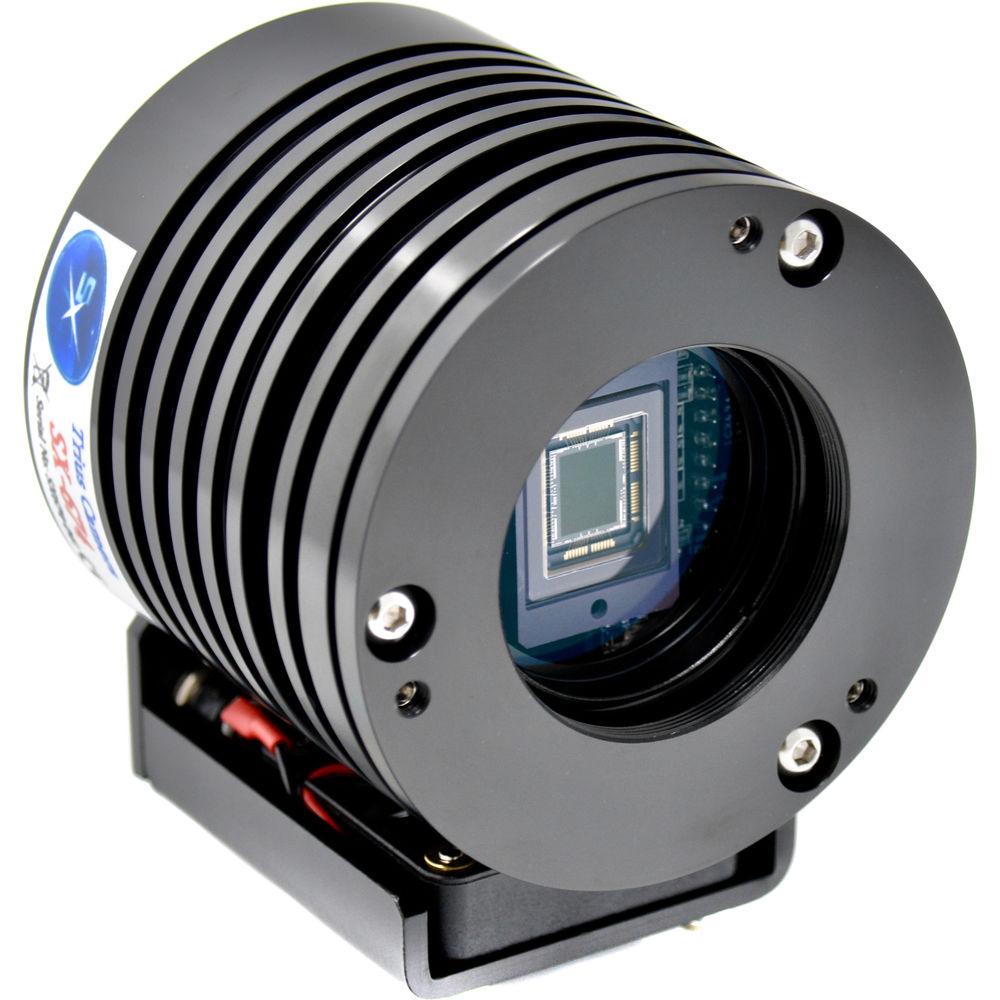

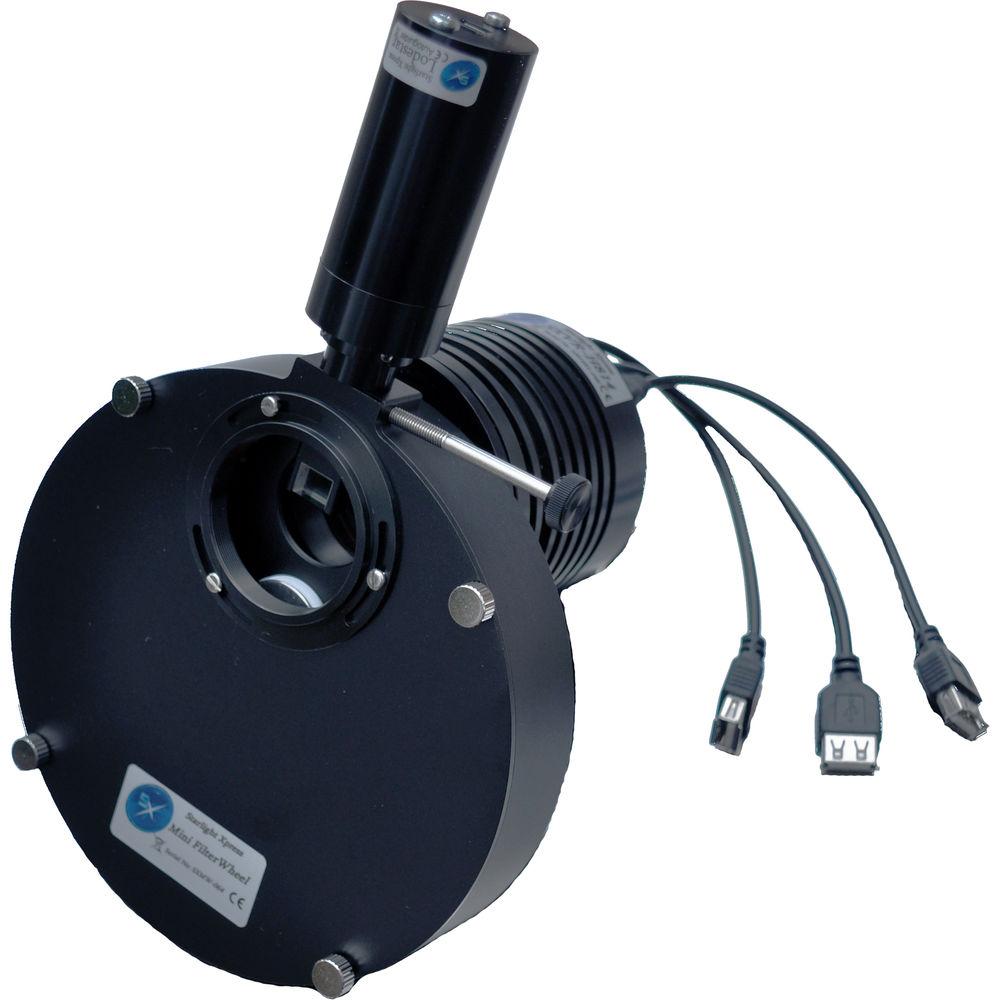

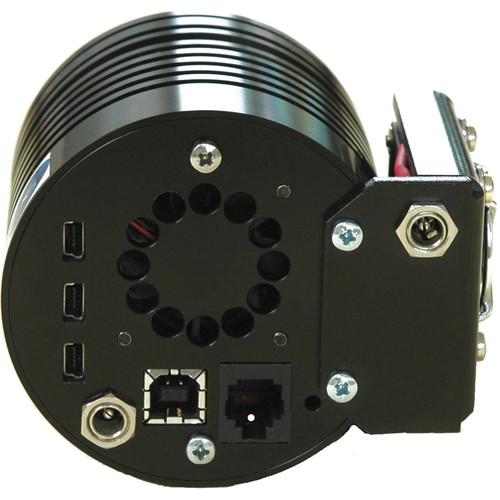

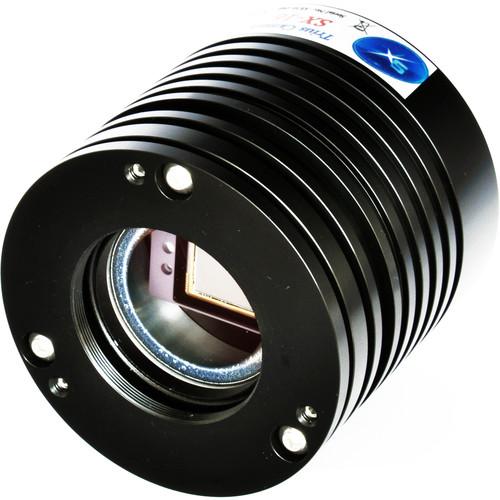

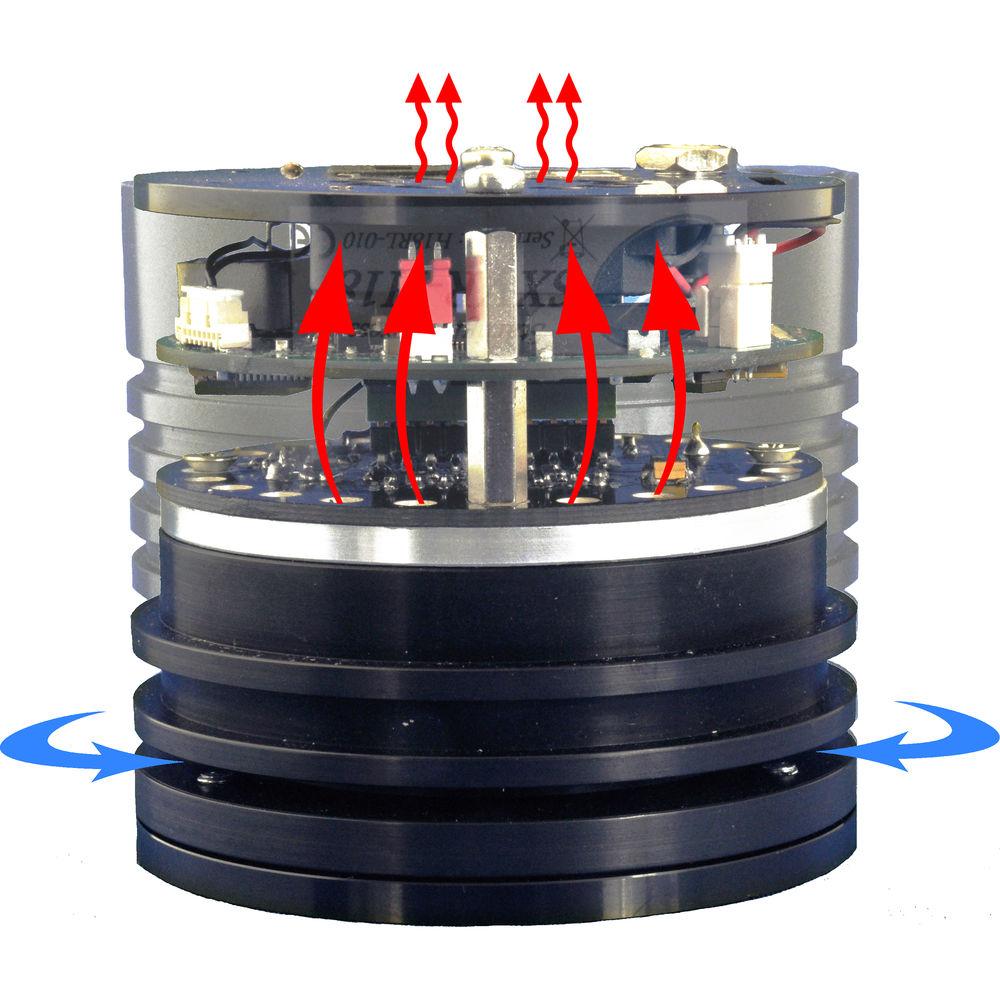

Product description Eyepiece Imagers: Capture the Universe and Share, Tweet, or Whatever It Read More Specifically designed for astro-imaging, the Starlight Xpress monochrome Trius SX-16 CCD Imaging Camera is outfitted with a large-format high-resolution Kodak KAI 4070 interline CCD sensor that delivers stunning resolutions of up to 2048x2048, with good quantum efficiency across the entire visible spectrum peaking at 53% at 500nm. An onboard temperature-monitoring chip and integrated fan ensure the imaging system continues to work efficiently, while its argon-filled aluminum housing and micro lenses maintain a fog-free environment with maximum light transmission.A USB 2.0 interface allows you to download full-res 16-bit images to your Windows computer in just 2.5 seconds. The housing also sports three mini-B USB ports that act as a USB hub and allow you to connect peripherals and accessories—such as a guide camera, filter wheel, and electric focuser—and control them all, plus the camera, via the single tethered cable to your computer, greatly reducing cable tangle. Additionally, there is a dedicated ST4 autoguider port.This compact and lightweight imager comes with an array of cables and adapters for power and peripheral connections, plus two adapters to mount it directly onto drawtubes for conventional imaging, or onto compatible eyepieces for high-magnification afocal techniques. Alignment screws are provided for adjusting the chip so that it is perfectly parallel to the focal plane, with a generous 17mm back focus distance. - Computer Requirements
-
- Windows XP, Windows 7, or Windows 8
- At least one USB 2.0 port
- At least 4Gb of memory
- Graphics card capable of displaying an image in a minimum of 1600x1200 and 32-bit color to view the finished images onscreen
- 1-3GHz processor speed is ideal
- Not designed for USB1.1 and will cause inferior results
In the Box Starlight Xpress Trius SX-16 CCD Imaging Camera (Mono) Power Supply with Cable 3.3' USB Cable 2" Drawtube Adapter M42 Thread Adapter ST4 Autoguider Cable External Fan Power Lead Software CD 3 x Mini-USB Leads Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Starlight Xpress Trius SX-16 CCD Imaging Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarlight Xpress Trius SX-16 Specs | Sensor | Kodak KAI 4070 Interline CCD Imager | | Resolution | 2048 x 2048 | | Pixel Size | 7.4 x 7.4 μ | | Spectral Response | 360 - 900 nm | | Back Focus | 17.5 mm from Barrel Front | | Ports and Connectors | 3 x Mini-B USB 2.0 Hub Port
1 x USB 2.0 Type B
1 x Autoguider Output
12 VDC Input Power | | Power Requirement | 115 - 240 VAC @ 12 A
12 VDC @ 750 mA max | | Power Consumption | Less than 1.0 A at 12 VDC - 12 A at 110 V or 240 VAC | | Operating Temperature | -40°F / -40°C Below Ambient | | Dimensions | 3.9 x 3.0" / 10.0 x 7.5 cm | | Weight | 14.1 oz / 400.0 g |
