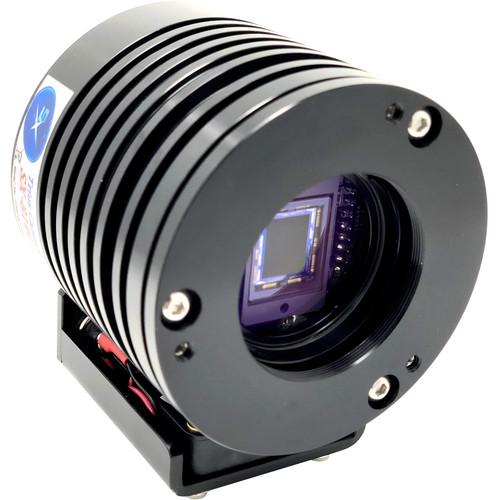

User Manual for Starlight Xpress Trius SX-814C 9MP Color CCD Imaging Camera with USB Hub Click to enlarge the picture
Contents of the user manual for the Starlight Xpress Trius SX-814C 9MP Color
- Product category: Accessories Starlight Xpress
- Brand: Starlight Xpress
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Starlight Xpress Accessories
|
User manual for the Starlight Xpress Trius SX-814C 9MP Color contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Starlight Xpress product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Starlight Xpress user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Starlight Xpress product will considerably shorten its lifespan!
|
Product description Eyepiece Imagers: Capture the Universe and Share, Tweet, or Whatever It Read More The Starlight Xpress Trius SX-814C 9MP Color CCD Imaging Camera features a large 1" Sony ICX814AQG "EXview" progressive scan CCD sensor to capture views of the cosmos in stunning 3388x2712 resolution through your telescope or astrograph. Being a color sensor eliminates the need for filter wheels so image capture is faster and easier. An integrated auto-guider output port allows you to easily tether it to your off-axis guider (OAG) to improve tracking accuracy and precision during long imaging sessions.Its high sensitivity, measuring a 60% peak quantum efficiency (QE) at the 540nm green wavelength with 50% roll-off at 400nm and 650nm, provides an excellent signal-to-noise ratio so there is little background interference and images are cleaner. This is complemented by a low dark signal and exceptional antiblooming. The anodized aluminum housing has natural heat-dissipation properties, and additionally it is argon filled and sealed to help the integrated two-stage thermoelectric cooler maintain the optimal temperature, being capable of cooling the sensor up 35°C below ambient air temperature.The camera comes outfitted with standard T2 threads on the front for fast, easy, and stable connection to visual backs or drawtubes without the need for complicated adapter systems that can add excessive optical length—so mounting the camera with widely available spacers will allow you to achieve the correct focal distance. Adjustment screws on the housing allow you to set the chip parallel to the focal plane so images remain flat and without distortion. The SX-814C includes two adapters to make mounting easier. First is a 1.25" drawtube adapter for easy mounting into eyepiece holders on many telescopes, and the adapter has standard 1.25" filter threads to refine your image capture. Second is a larger 2" adapter with M42 threads that accept threaded Pentax lenses to use the Trius as a wide-field imaging system without a telescope.To limit cables and potential interference by excessive cords from other peripherals like auto guiders, the Trius is outfitted with three mini-B USB power ports, so only the 110 VAC power supply cord and USB cable between the camera and the control computer are required. A USB 2.0 computer interface enables fast full-resolution image downloads of about 7 seconds, and it is backward compatible with USB 1.1 but download time is slower. Engineered for ease of use, it has a compact and lightweight design that is easy to set up and break down on your telescope. - Computer System Requirements
-
- Windows XP, Vista, Windows 7, or Windows 8 installed
- One USB 2.0 port available
- At least 256 MB of memory
- Between 1 GHz and 4 GHz Pentium processor speed is recommended
- Minimum of 1024x768 resolution monitor with 24-bit color
- Recommend good-quality cable with a maximum length of 16.5' (5m). Cables longer than this may require boosters or extra powered hubs
In the Box Starlight Xpress Trius SX-814C 9MP Color CCD Imaging Camera with USB Hub USB Computer Cable AC Power Supply Module 1.25" Drawtube Adapter 2" Drawtube Adapter Guider Output to Guider Port RJ12 Lead 3 x USB Leads Cooling Fan Power Lead Control Software Disc Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Starlight Xpress Trius SX-814C 9MP Color CCD Imaging Camera with USB Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarlight Xpress SX-814C Specs | Imaging Sensor | 9 MP 1" Sony ICX814AQG "EXview" progressive scan CCD, color | | Resolution | 3388 x 2712 | | Pixel Size | 3.69 µm x 3.69 µm | | Sensor Size | 12.48 x 9.98 mm | | Spectral Response | 360 nm - 1100 nm | | Back Focus | 17 mm +/-1 mm | | Mounting | 42 mm/T2 | | Computer Interface | USB 2.0 (recommended)
USB 1.1 backward compatible | | Power Requirement | 115 - 240 VAC @ 12 VA
12 VDC @ 1.5 A, max | | Material | Aluminum | | Dimensions | 3.9 x 3.0" / 10.0 x 7.5 cm | | Weight | 14.1 oz / 400.0 g |
