User Manual for StarryMega LED5500K Bi-Color LED Portable Studio Light Click to enlarge the picture
Contents of the user manual for the StarryMega LED5500K Bi-Color LED Portable Studio
- Product category: LED Lights StarryMega
- Brand: StarryMega
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarryMega LED Lights
 |
User manual for the StarryMega LED5500K Bi-Color LED Portable Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarryMega product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarryMega user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarryMega product will considerably shorten its lifespan!
|

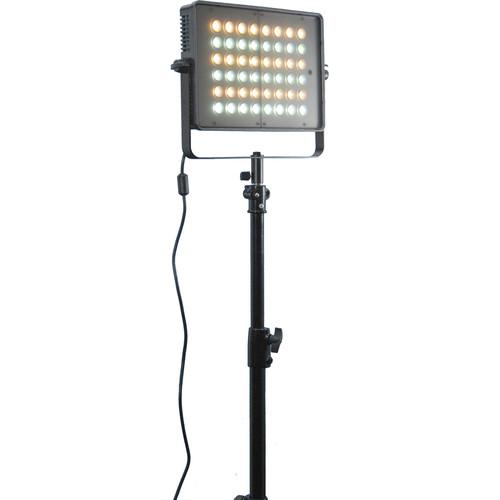

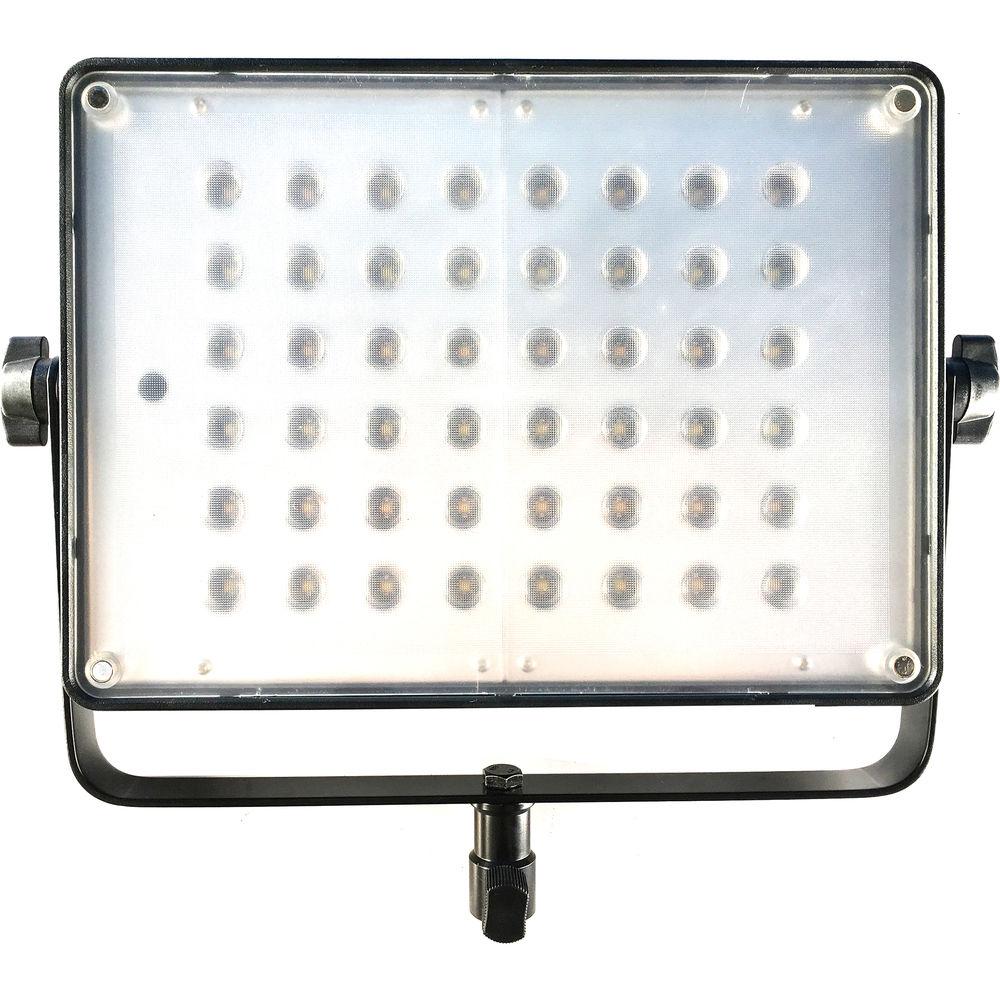

Product description The LED5500K Bi-Color LED Portable Studio Light from StarryMega is a versatile 11.8 x 8.6 x 2.0" light panel with a variable color temperature from 3200 to 5600K to match other fixtures or ambient light conditions, while maintaining a high CRI of 93, indicating an accurate color rendering. The fixture produces an output of 5500 lux at a distance of 3.3' at a color temperature of 4500K and renders the approximate equivalent of a 500W tungsten fixture. Both color temperature and brightness from 10 to 100% are adjustable locally on the back panel with intuitive push buttons or at distances up to 16.4' via the included remote control. The 60-degree beam angle offers medium coverage with a minimal amount of spill light. The fixture has a projected 50,000-hour lamp life making it virtually maintenance-free.The LED5500K is ready for worldwide use thanks to the included universal 100-240 VAC adapter but it can also be powered by optional V-mount or Gold mount batteries in situations where mains current is unavailable. It comes with diffusion filter and a carrying case with configurable compartments that holds the light and accessories. - Benefits
-
- Made with high efficiency LEDs

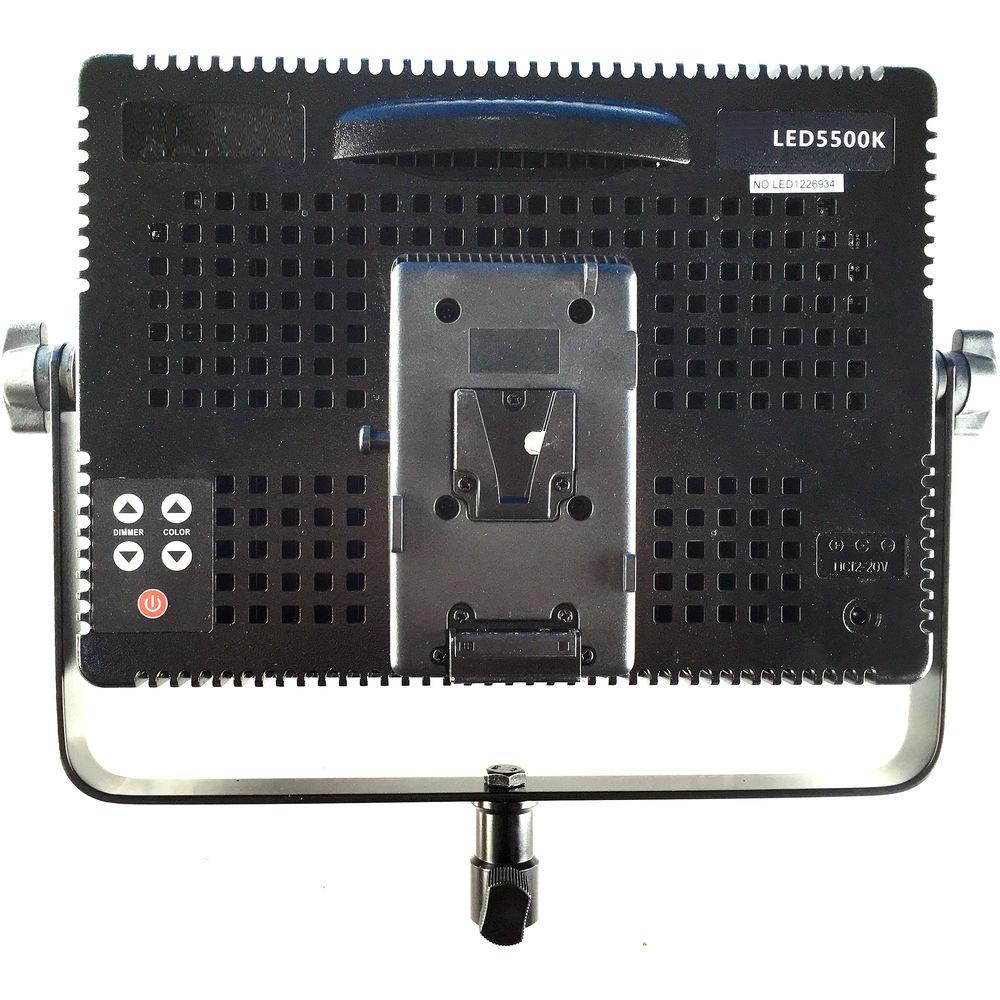

- Touch button control panels at the back of the light
- Infra-red wireless remote control to adjust power on/off, brightness and variable color temperature
- Ultra-efficient: draws only 75W maximum power with luminous efficiency equivalent to 500W tungsten light
- Rectangular casing. Built-in heat sink makes the light's body cool-to-the-touch
- High illuminance: 5500 lux at 3.3'
- 60-Degree spot beam angle
- Smooth, even light output
- Runs on DC battery or AC adapter
- Works with Sony V-mount battery or Gold mount battery
- 50,000+ hours LED life
- Includes magnetic snap-on white diffuser for wider spread illumination

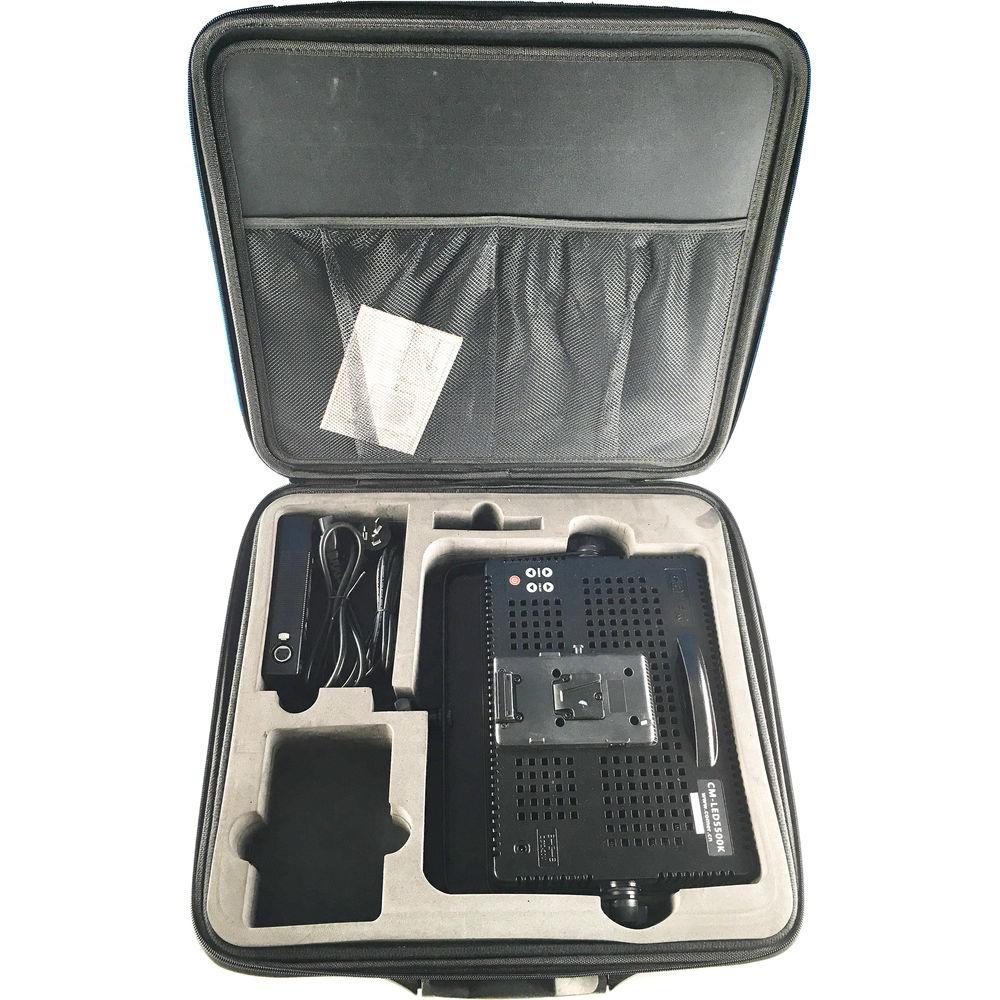

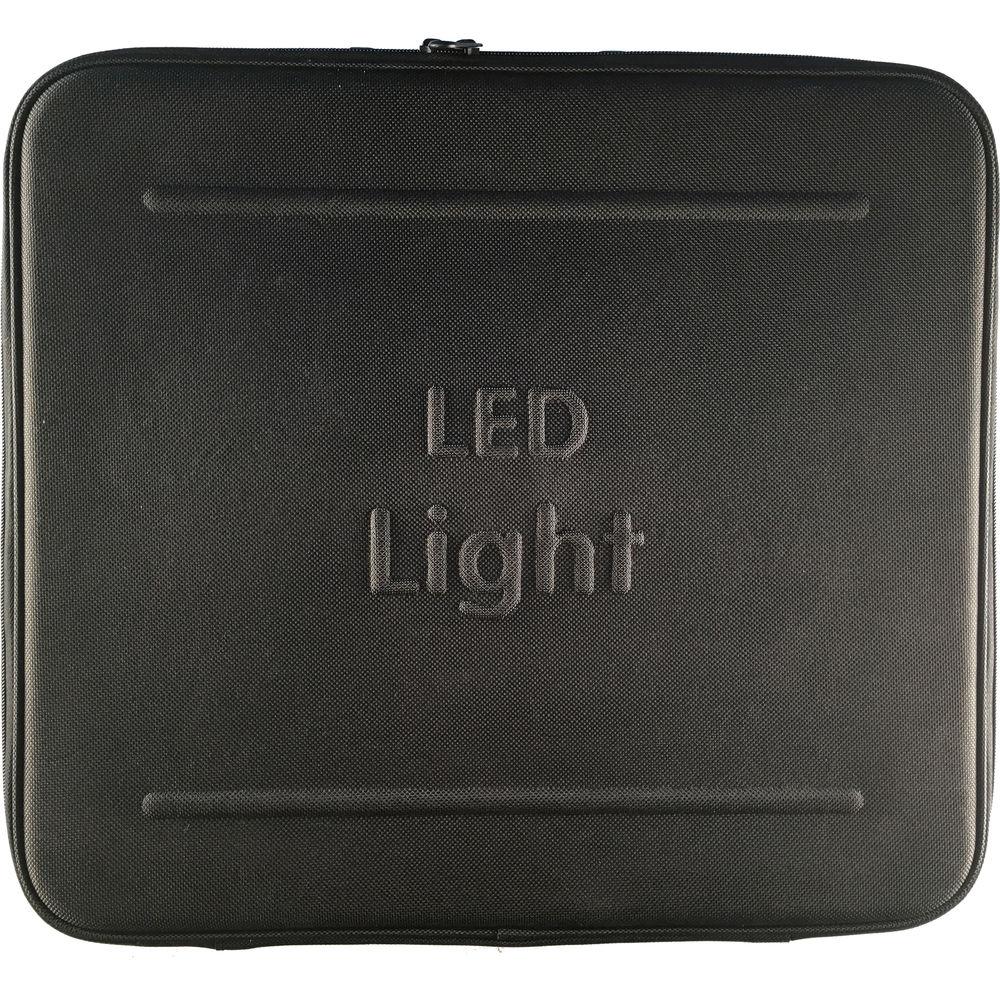

- Briefcase-style carrying case included with compartment to hold the LED5500K light, filter, remote control, and one battery
- Photometrics
- 5600K:
5200 lux @ 3.3' (1.0 m)
4500K:
5500 lux @ 3.3' (1.0 m)
3200K:
3800 lux @ 3.3' (1.0 m) In the Box StarryMega LED5500K Bi-Color LED Portable Studio Light Snap-on Diffuser Remote Control AC Adapter Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the StarryMega LED5500K Bi-Color LED Portable Studio Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarryMega LED5500K Specs | Lamp Type | LED | | Beam Angle | 60° | | Color Temperature | 3200 - 5600K | | CRI | 93 | | Wattage Equivalent | 500 W tungsten equivalent | | Battery Type | Optional V-mount or Gold mount | | Control | Locally on unit
Remote Control: brightness, color temperature, on/off
Range 16.4' (5.0 m) | | Power | DC Input Voltage: 12 V to 24 V
AC Input: 100 - 240 VAC 50/60 Hz | | Power Consumption | 75 W, max. | | Cooling | Passive (air cooled) | | Mount | 5/8" (16 mm) | | Average Life Hours | 50,000+ Hours | | Operating/Storage Temperature | Operating: -4 to 122°F (-20 to 50°C)
Storage: -4 to 140°F (-20 to 60°C) | | Dimensions | 11.8 x 8.6 x 2.0" (300 x 220 x 50 mm) | | Weight | 5.7 lb (2.6 kg) |
