User Manual for StarTech 1-Port Dual Profile PCIe Gigabit Network Server Adapter NIC Card Click to enlarge the picture
Contents of the user manual for the StarTech 1-Port Dual Profile PCIe Gigabit
- Product category: Network Interface Cards & Adapters StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Network Interface Cards & Adapters
 |
User manual for the StarTech 1-Port Dual Profile PCIe Gigabit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

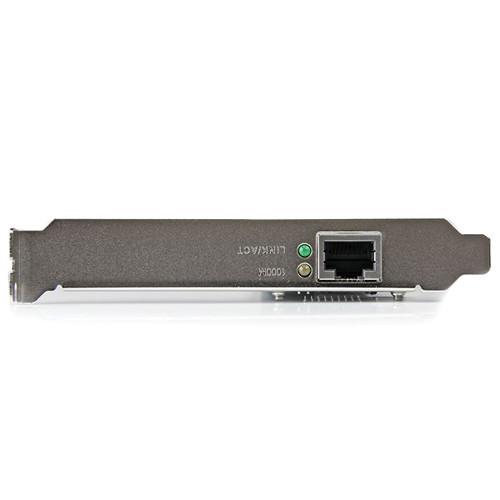

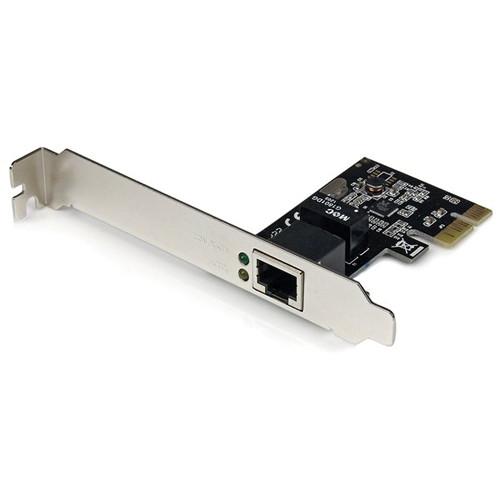

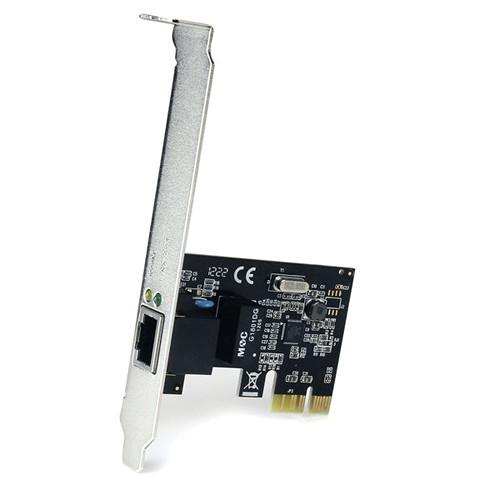

Product description The 1-Port Dual Profile PCIe Gigabit Network Server Adapter NIC Card from StarTech adds a 10/100/1000 Mb/s compatible RJ-45 Ethernet port to a PCIe enabled client, server, or workstation, providing a convenient addition or replacement networking interface. The adapter is compliant with IEEE 802.3/u/ab standards. With support for 9K jumbo frames, VLAN tagging, and Wake-on-LAN (WOL), this adapter delivers superior performance. Furthermore, the card includes both full profile and low profile/half-height brackets for installation in a wide range of computer/server chassis, regardless of form factor. - Adds a single 10/100/1000 Mb/s compatible RJ-45 Ethernet port
- Gigabit detection and link/activity LED indicators
- Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab standards
- Supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 priority encoding, and IEEE 802.3x full-duplex flow control
- Full and half-duplex support
- Supports Wake-on-LAN function
- Crossover detection and auto-correction (auto MDI/MDI-X)
Applications - Upgrade 10/100 Ethernet capability to Gigabit capability
- Add an Ethernet port to a workstation or server computer for redundancy or bridging
- Add networking capabilities to traditional systems with no Ethernet port

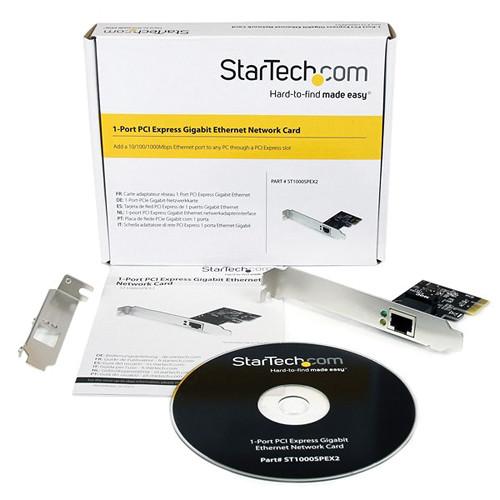

UPC: 065030849265 In the Box StarTech 1-Port Dual Profile PCIe Gigabit Network Server Adapter NIC Card Full Profile Installation Bracket Low Profile/Half-Height Installation Bracket Driver CD 2-Year Limited Warranty Manual PDF 795.2kbabsyrdxccqxcucerabetwzweuexfxc More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 1-Port Dual Profile PCIe Gigabit Network Server Adapter NIC Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech ST1000SPEX2 Specs | Chipset ID | Realtek RTL8111E | | Industry Standards | IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab | | External Ports | 1 x RJ-45 female | | Connector Type | 1 x PCIe x1 male | | Card Type | Standard profile (low profile bracket included) | | Maximum Data Transfer Rate | 1000 Mb/s | | Compatible Networks | 10/100/1000 Mb/s | | Auto MDIX | Yes | | Full Duplex Support | Yes | | Supported Protocols | CSMA/CD | | OS Compatibility | Windows 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS X 10.6 to 10.9
Linux 2.4.x to 4.4.x LTS versions | | LED Indicators | 1 x Gigabit detect (yellow)
1 x link/activity (green) | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Storage Temperature | 32 to 212°F (0 to 100°C) | | Humidity | 10 ~ 90% RH | | Certifications | CE, FCC, and RoHS compliant | | Dimensions (LxWxH) | 2.7 x 4.7 x 0.7" (6.8 x 11.9 x 1.7 cm) | | Weight | 1.4 oz (39.6 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 6.8 x 5.6 x 0.9" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 84 owners. Add your rating and experience with the product.
