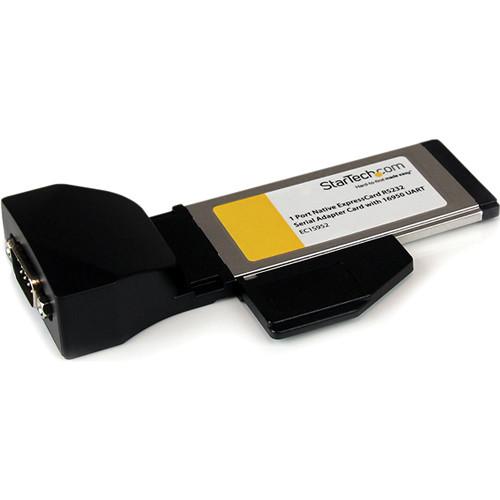

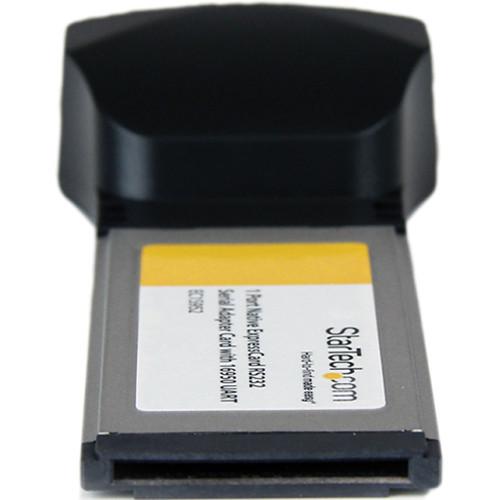

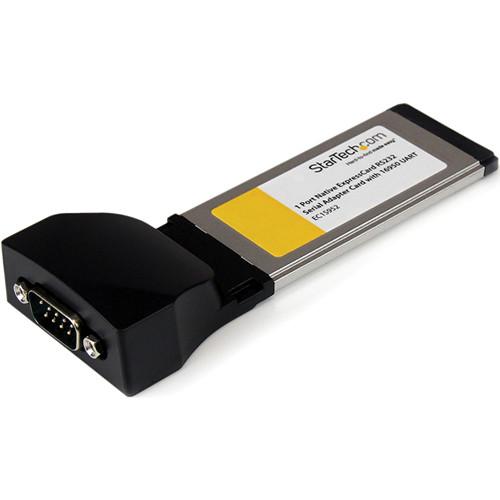

Product description The 1-Port Native ExpressCard RS232 Serial Adapter Card with 16950 UART from StarTech allows you to add an RS232 serial port to your laptop or ExpressCard-equipped desktop computer. Its designed is based on a single-chip architecture that provides native PCIe communication for better performance and reliability by reducing the CPU load by up to 48%, with low power consumption. An included stabilizer bracket allows this device to fit snugly in both 34mm and 54mm ExpressCard slots. Providing optimal communication with RS232 serial devices, this ExpressCard serial card supports baud rates of up to 115.2 Kb/s and features a 128-byte FIFO buffer as well as a high performance 16C950 UART. - This card has a single-chip design that supports high performance 16C950 UART with baud rates up to 115.2 Kb/s and is backwards compatible with 16C550 UART
- The single-chip design optimizes speed, reliability, and power
- It is fully compliant with ExpressCard 1.0 specifications
- Supports ASPM (L0S, L1) link power management
- It has automated in and out-of-band flow control
- Features advanced FIFO fill management
- The card is compatible with both 34mm and 54mm ExpressCard slots, and includes a slot spacer for greater security when installed in 54mm slots
Applications - Self service automated machines and kiosks to control serial devices such as scales, touch screens, magnetic card readers, bar code scanners, receipt printers, and label printers
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers/swipes, scales, and elevated displays on poles
- Used to control multiple surveillance/security cameras in a parking structure, office building
- Standard automated teller machines (ATMs) to control keypads, receipt printer, card readers/swipes, touch screen LCDs, and camera control
- Embedded system coding, building, and diagnostics

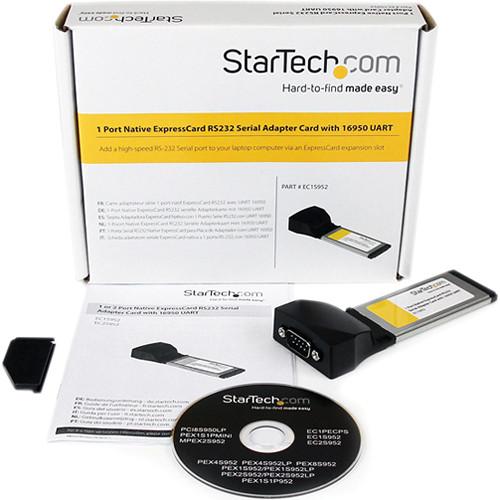

UPC: 065030834926 In the Box StarTech 1-Port Native ExpressCard RS232 Serial Adapter Card with 16950 UART 34 to 54mm Slot Spacer Driver CD Lifetime Limited Warranty Brochure PDF 141.6kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 1-Port Native ExpressCard RS232 Serial Adapter Card with 16950 UART in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

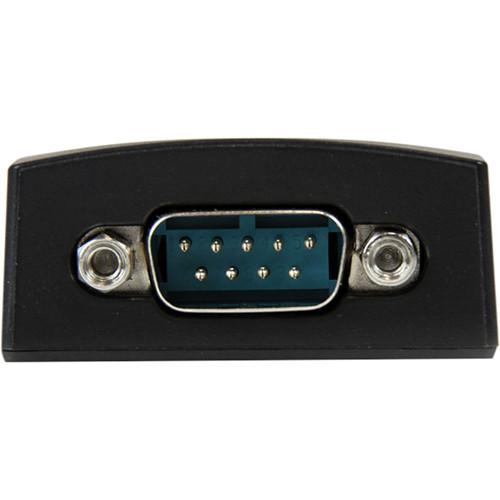

Technical parametersStarTech EC1S952 Specs | Interface | Serial | | Port | 1 | | Port Style | Integrated on card | | Bus Type | ExpressCard | | Card Type | 34 mm ExpressCard | | Chipset ID | PLX/Oxford - OXPCIe952 | | Connector Type | 1 x ExpressCard 34 mm | | External Ports | 1 x DB-9 (9-pin; D-Sub) male | | Serial Protocol | RS-232 | | Baud Rate | Maximum: 115.2 Kb/s | | FIFO | 128 Bytes | | OS Compatibility | Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), 2000 Windows Server 2008 R2, Linux | | Relative Humidity | 5 to 85% | | Temperature | Operating: 14 to 176°F (-10 to 80°C)
Storage: -4 to 212°F (-20 to 100°C) | | Compliance | CE, FCC, RoHS | | Dimensions (L x W x H) | 4.5 x 1.8 x 0.8" (115.0 x 45.0 x 20.0 mm) | | Weight | 1.2 oz (34.0 g) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 9.0 x 8.0 x 2.0" |
