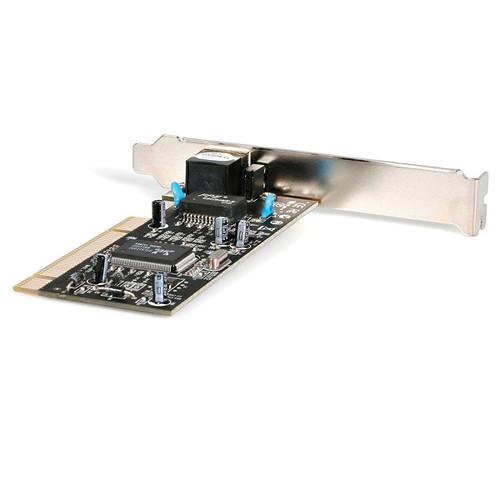

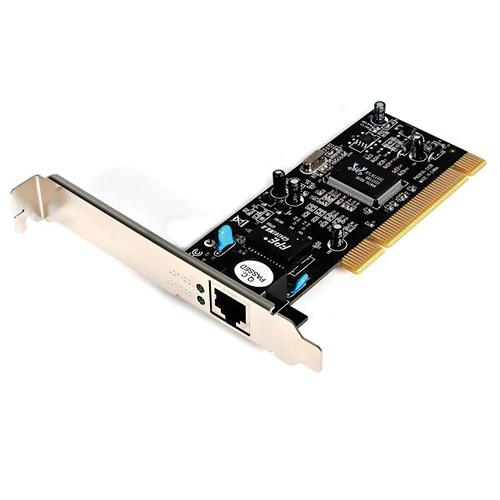

Product description The 1-Port PCI 10/100/1000 32-Bit Gigabit Ethernet Network Adapter Card from StarTech provides a simple connection to a Gigabit Ethernet network, and is fully compatible with IEEE 802.3, 802.3u, 802.3ab, and 802.3x standards. Suitable for any PCI-enabled client, server, or workstation, it supports dual channel networking and maximum data transfer speeds of 1000Mb/s in each direction (2000 Mb/s total), up to ten times faster than 10/100 Ethernet. The adapter card is compatible with a broad range of operating systems, including Linux, Windows 98SE, ME, 2000, XP (32/64-bit), Vista (32/64-bit), 7(32/64-bit) as well as Mac OS 10+. It includes an optional low profile bracket that makes it easy to install the card in a small form factor/low profile computer case/server. - A single 10/100/1000 Mb/s compatible RJ-45 Ethernet port

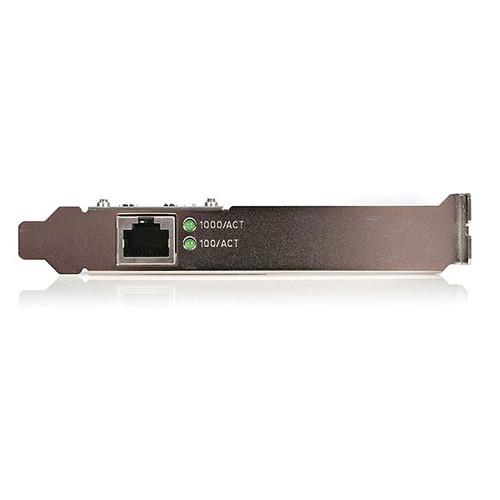

- Network link/activity and 10/100/1000 Mb/s LED indicators
- Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab, and supports IEEE 802.1Q VLAN tagging
- Full and half duplex support
- Supports Wake-on-LAN function
- Crossover detection and auto-correction (auto MDI/MDI-X)
Applications - Add an additional Ethernet port to a workstation or server computer for redundancy
- Upgrade a computer's 10/100 Ethernet port to a Gigabit Ethernet
- Add networking capabilities to an old system with no Ethernet port
Advantage - Add Gigabit networking through a PCI slot, suitable for a desktop, workstation, or server
- Dual profile design to fit into full or low profile/small form factor (SFF) systems

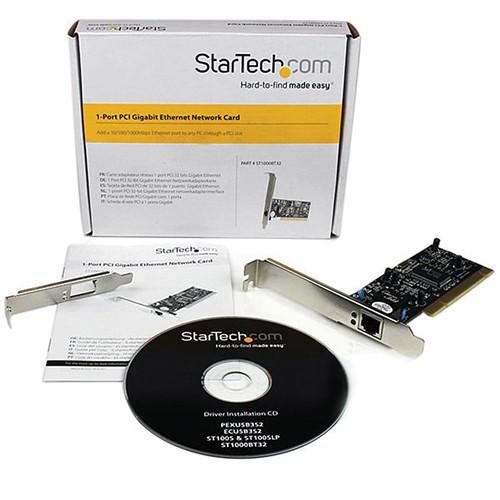

UPC: 065030795807 In the Box StarTech 1-Port PCI 10/100/1000 32-Bit Gigabit Ethernet Network Adapter Card Low Profile Bracket Driver CD Lifetime Limited Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 1-Port PCI 10 100 1000 32-Bit Gigabit Ethernet Network Adapter Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech 1-Port PCI 10 100 1000 32-Bit Gigabit Ethernet Network Adapter Card can be downloaded in PDF format at the link stated below.
Technical parametersStarTech ST1000BT32 Specs | | | Interface | RJ-45 (Gigabit Ethernet) | | Ports | 1 | | Card Type | Standard Profile (Low Profile bracket included) | | Industry Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.11u
PCI 2.1, 2.2 | | Chipset ID | Realtek - RTL8110SC | | | | Connector Type | 1 x PCI/PCI-X (universal 3.3 V and 5 V; 32-bit) male | | External Ports | 1 x RJ-45 female | | | | MTBF | 36,000 hours | | Maximum Data Transfer Rate | 1000 Mb/s | | Compatible Networks | 10/100/1000 Mb/s | | Full Duplex Support | Yes | | Supported Protocols | CSMA/CD | | | | OS Compatibility | Windows 98SE/ME/NT/2000/XP (32/64-bit)/Server 2003 (32/64-bit)/Server 2008 R2/Vista (32/64-bit)/7 (32/64-bit)/8 (32/64-bit)
Mac OS 10+
Netware Server 5.x, Netware ODI for DOS
Linux and Unix | | | | Requirements | IRQ line and input/output address allocated by system | | | | LED Indicators | 1 x 10/100/1000 Mb/s link/activity | | | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Humidity | 10 ~ 95% RH | | | | Certifications | CE, FCC, and RoHS compliant | | Dimensions (LxWxH) | 4.8 x 0.8 x 2.5" (12.1 x 2.0 x 6.3 cm) | | Weight | 1.9 oz (53.8 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 6.6 x 5.6 x 1.2" |
