User Manual for StarTech 1-Port PCI Express Dual Profile Parallel Adapter Card Click to enlarge the picture
Contents of the user manual for the StarTech 1-Port PCI Express Dual Profile
- Product category: Inkjet Printers Accessories StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Inkjet Printers Accessories
 |
User manual for the StarTech 1-Port PCI Express Dual Profile contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

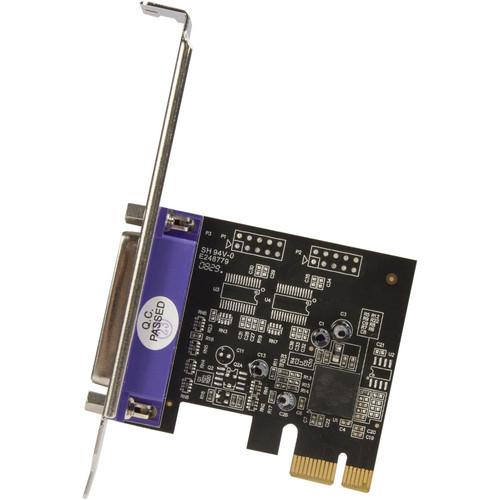

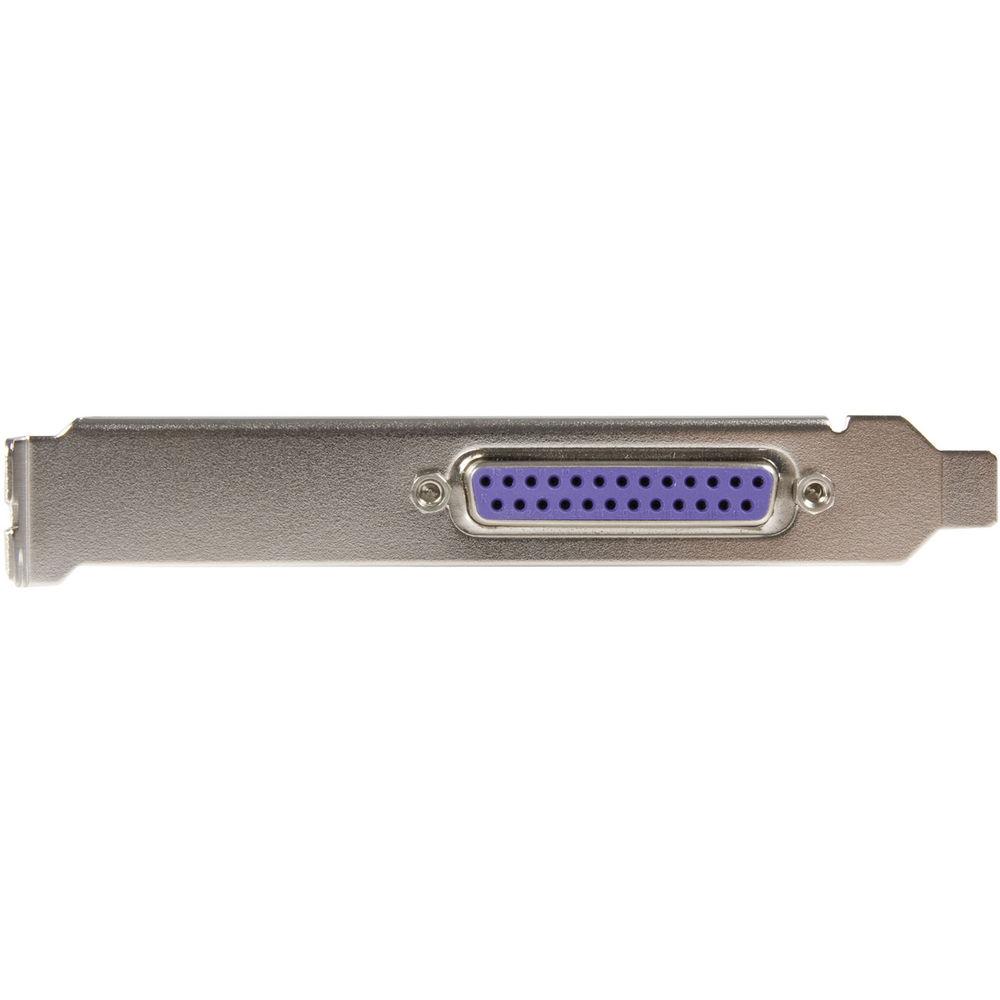

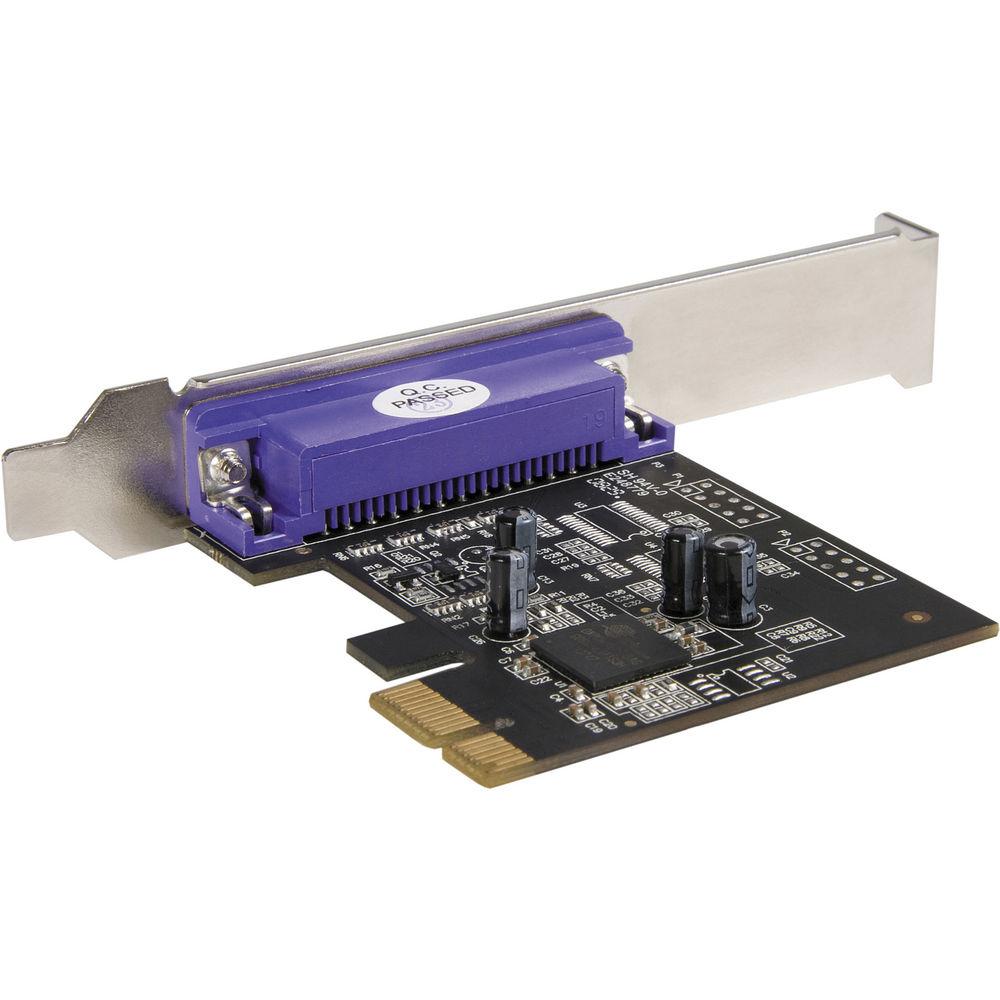

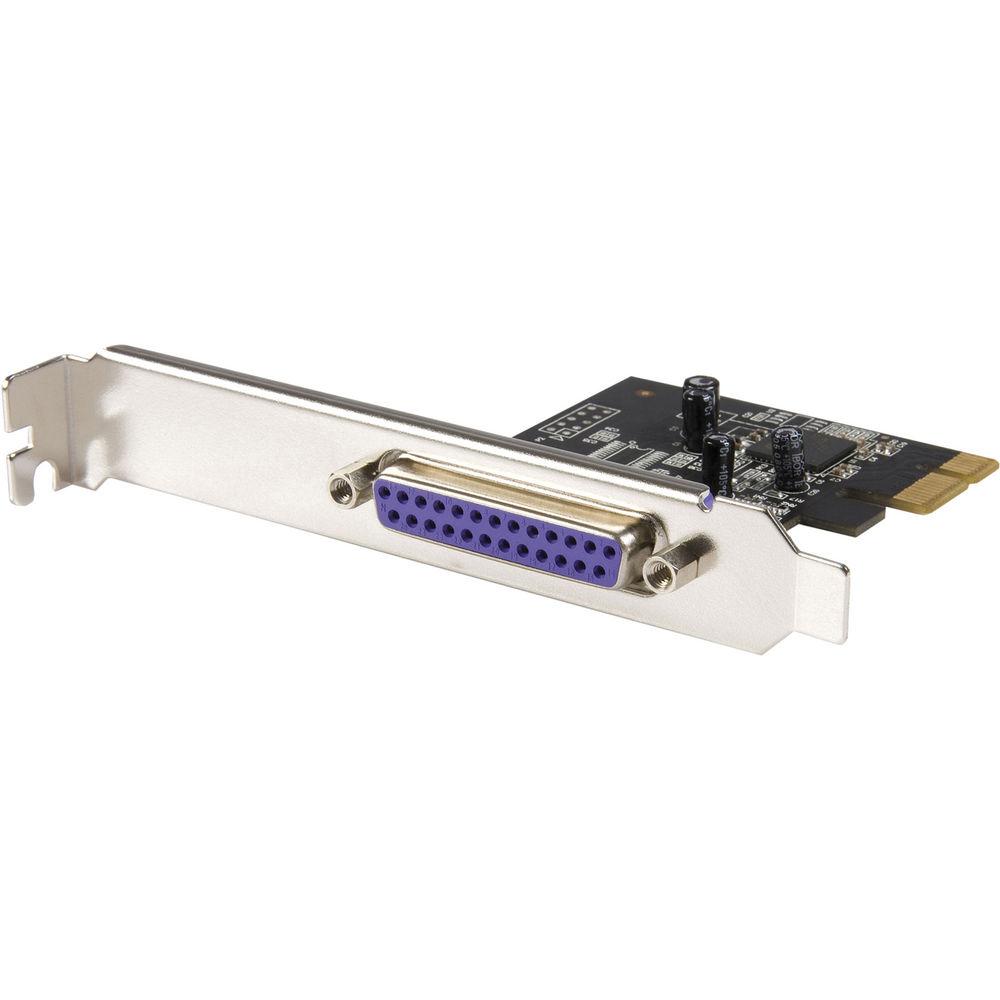

Product description The 1-Port PCI Express Dual Profile Parallel Adapter Card from StarTech can be installed in a PCIe slot, allowing you to connect EPP/ECP parallel peripherals to any computer system. Relying on a native, single-chip design (Oxford OXPCIe952), this adapter harnesses the true capability of PCIe, ensuring maximum performance and reliability. This high-performance SPP/EPP/ECP parallel card adds one DB25 parallel port, perfect for connecting printers, scanners, CD-R/RW drives, memory card readers, bar code scanners and more. With the added convenience of plug-and-play capability, installing the parallel adapter card is hassle-free. The card also includes both standard and half-height/low-profile mounting brackets for compatibility with almost any system form factor. - Standard and low-profile brackets included, allowing installation into almost any system
- Use existing parallel devices with PCIe systems, saving the cost and hassle of upgrading peripherals to work with newer systems
- SPP/EPP/ECP parallel port fully supports existing Centronics interface
- Compliant with PCIe Base Specification 1.0a
- PCI 2.2 and PCI Power Management 1.0 compliant
- Connects any parallel peripheral including printers, scanners, CD-R/RWs, Zip drives and memory card readers

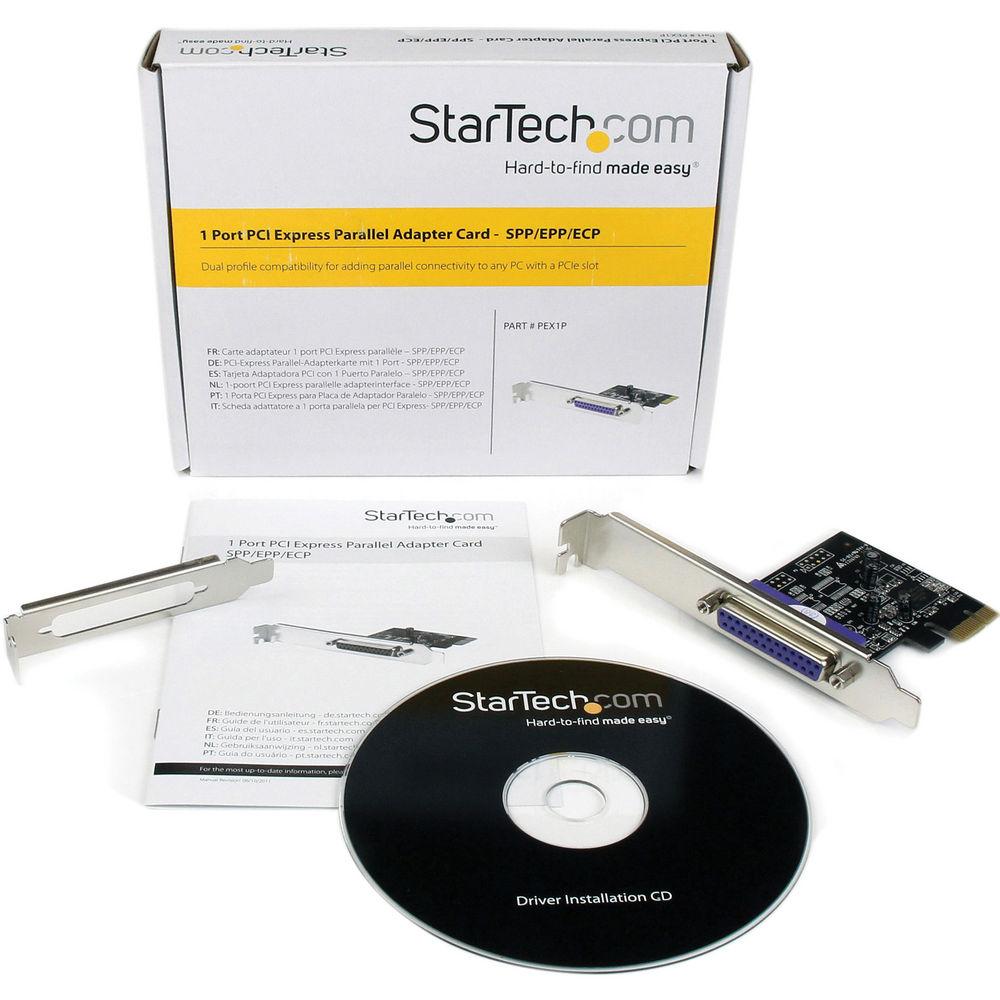

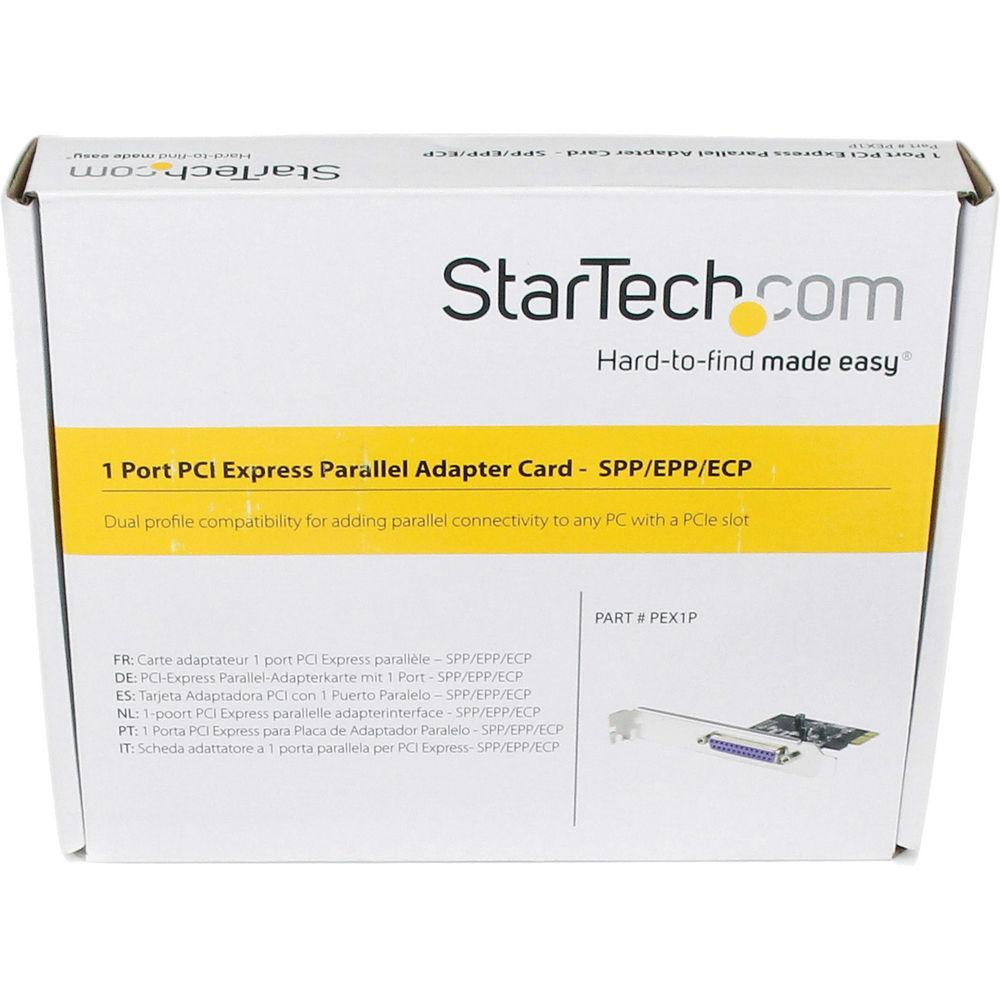

UPC: 065030824170 In the Box StarTech 1-Port PCI Express Dual Profile Parallel Adapter Card Standard Bracket Low-Profile Bracket Driver CD 2-Year Limited Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 1-Port PCI Express Dual Profile Parallel Adapter Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech 1-Port PCI Express Dual Profile Parallel Adapter Card can be downloaded in PDF format at the link stated below.
Technical parametersStarTech PEX1P Specs | | | Number of Ports | 1 | | Interface | Parallel | | Bus Type | PCIe | | Card Type | Standard profile (low-profile bracket included) | | Port Style | Integrated on card | | Chipset ID | PLX/Oxford - OXPCIe952 | | | | Connector Type | 1 x PCIe x1 male | | External Ports | 1 x DB-25 (25-pin; D-Sub) female | | | | Maximum Data Transfer Rate | 2.5 Mbps | | | | OS Compatibility | Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), 2000, ME, 98SE, 95, Windows Server 2008 R2
Linux | | | | Certifications | CE, FCC, RoHS | | Dimensions (LxWxH) | 0.8 x 4.3 x 4.7" (21 x 110 x 120 mm) | | Weight | 2.3 oz (65 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 6.7 x 5.7 x 1.2" |
