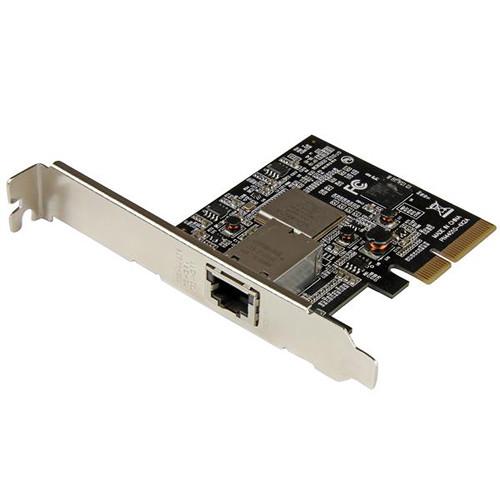

User Manual for StarTech 1-Port PCIe 10GBase-T & NBASE-T Ethernet Network Card Click to enlarge the picture
Contents of the user manual for the StarTech 1-Port PCIe 10GBase-T & NBASE-T
- Product category: Network Interface Cards & Adapters StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Network Interface Cards & Adapters
 |
User manual for the StarTech 1-Port PCIe 10GBase-T & NBASE-T contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description Provided by third party: Add an Ethernet port to a server or workstation, with support for five network speeds: 10G/5G/2.5G/1G/100Mbps. This 5-speed network adapter card offers versatile and cost-efficient network connectivity. It lets you add an Ethernet port to your server or desktop computer and access your network at multiple speeds: 10G, 5G, 2.5G 1G and 100Mbps.
Cost-effective, multimode network connectivity
Designed for low-power, single-port network applications, the PCIe NIC offers a cost-effective and versatile networking solution by providing additional bandwidth to meet your network needs, without having to overhaul your infrastructure wiring. Fully compliant with 10GBase-T and NBASE-T™ specifications, the network card lets you add an Ethernet port to your server or high-powered workstation through a PCI Express x4 (or higher) slot. (10G network speeds require Cat6a cable. All other speeds require Cat5e cable.)
Advanced technology for optimal performance
The network controller card features advanced NBASE-T technology, supporting the latest multi-gigabit, including new Cisco® campus switches and Aruba Networks® access points. The card enables you to connect to NBASE-T based equipment at network speeds of 2.5Gbps or 5Gbps, over your existing Cat5e infrastructure, without having to upgrade to more expensive Cat6a.
NBASE-T technology accelerates the speed of twisted pair Cat5e copper cabling over a distance of up to 100 meters. The Ethernet network card also supports the more common 10G over copper, and 1G network connections using existing Cat 6/Cat5e or better cabling.

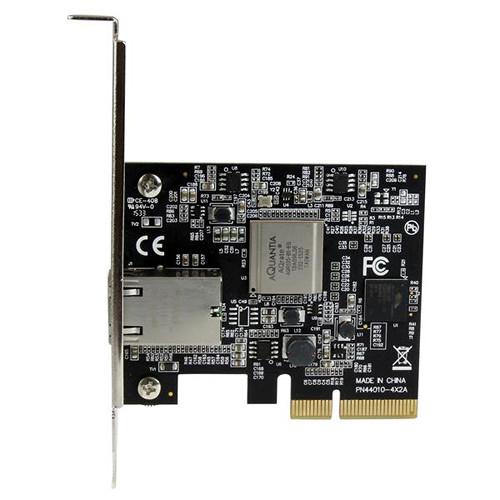

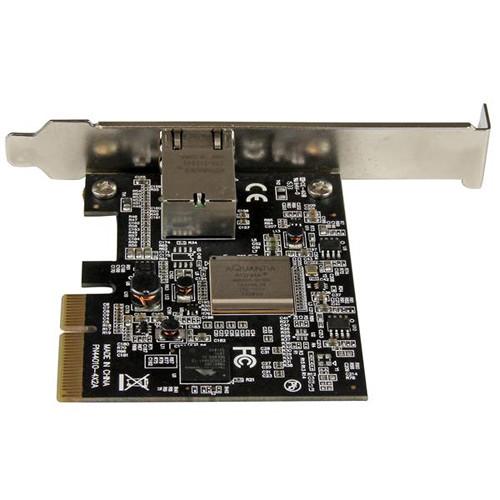

The 5-speed Ethernet network card is a powerful combination of the Tehuti™ TN4010 controller and the Aquantia™ AQR105 transceiver, providing low-power and high-performance NBASE-T solutions. The Tehuti 10GbE controller supports autonegotiation, which ensures the optimal speed over Cat5e/Cat6 is selected: 10GbE, 5GbE, 2.5GbE, GbE or 100Mbps (Fast Ethernet). The network card also offers compatibility with Microsoft Hyper-V® virtualization software and iSCSI support to combine LAN and SAN functions.
Operating efficiency and flexible use
The Tehuti TN4010 chipset, compliant with 802.3az Energy Efficient Ethernet, ensures peak operating efficiency with reduced power consumption versus the popular Intel® X540 chipset. The decreased power consumption helps to minimize heat generated by the card, to avoid increasing the operating temperature within your server case.

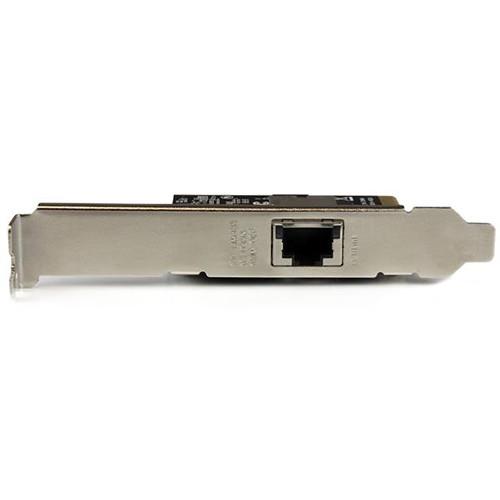

The network card also supports advanced features including 16K Jumbo Frames and 802.1q VLAN tagging. For additional versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.

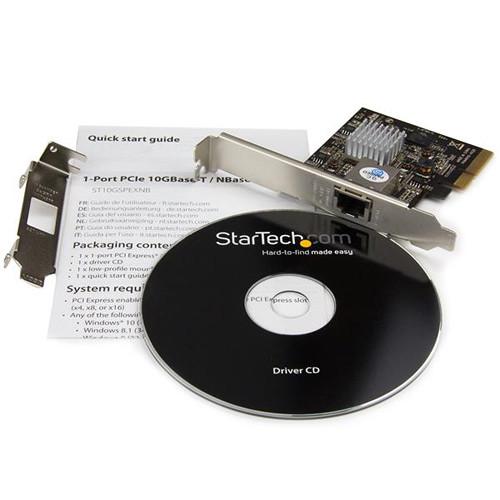

The ST10GSPEXNB is backed by a StarTech.com 2-year warranty and free lifetime technical support. UPC: 065030864213 In the Box StarTech 1-Port PCIe 10GBase-T & NBASE-T Ethernet Network Card 1-Port PCIe 10GBase-T / NBase-T Ethernet Network Card 1 x Driver CD 1 x Low profile Mounting Bracket 1 x Instruction Manual 2 Year Limited Warranty Brochure PDF 205.6kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 1-Port PCIe 10GBase-T & NBASE-T Ethernet Network Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech ST10GSPEXNB Specs | | | Host Interface | PCI Express x4 | | Total Number of Ports | 1 | | Number of Network (RJ-45) Ports | 1 | | | | Media Type Supported | Twisted Pair | | | | Network Technology | 10GBase-T | | | | Form Factor | Plug-in Card | | Height | 0.8" | | Width | 4.7" | | Depth | 3.3" | | Weight (Approximate) | 1.60 oz | | | | Device Supported | Server | | Environmentally Friendly | Yes | | Environmental Certification | RoHS
WEEE | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 6.7 x 5.6 x 1.2" |
