Product description The black StarTech 1-Port USB 2.0 Extender over Cat5/6 lets you extend a USB 2.0 connection over distances up to 330’ (100 m) over standard Cat5 or Cat6 Ethernet cabling.
Backward compatible with USB 1.x devices, this extender enables almost any kind of USB device to be placed at remote locations away from the host computer system. With a data bandwidth up to 480 Mbps and no required software installation, this USB extender makes for a fast, easy-to-set up, and versatile USB extension solution. It features a sleek metal enclosure that ensures durability in all types of operating environments. Plus, the extender provides up to a full 500 mA of power (with the use of an external power adapter at the remote end; sold separately), allowing for greater compatibility with bus-powered USB devices. - Extend a USB 2.0 device up to 330' away from the computer over a single Cat5/6 Ethernet cable
- Connect USB devices with up to 480 Mbps of bandwidth and full 500 mA of power for improved speed, compatibility, and reliability
- Eliminates the need to cascade expensive, inflexible, and space-consuming USB hubs or repeaters for USB range extension
- Electrical static discharge (ESD) protection: 8 kV contact and 16 kV air
- No driver or software installation required
- Includes surface-mounting brackets for both local and remote extender units
- Applications
-
- Secured environments where the host computer must be in a secure, inaccessible location from the keyboard, mouse, camera, or other USB devices
- Industrial control environments where the host computer must be located away from interference or contamination
- Can be used with existing in-wall Cat5/6 Ethernet wiring for extending USB connections between rooms
- Reduces cable clutter and the need for mid-point USB hubs/repeaters by running a single, easy-to-install Cat5/6 cable

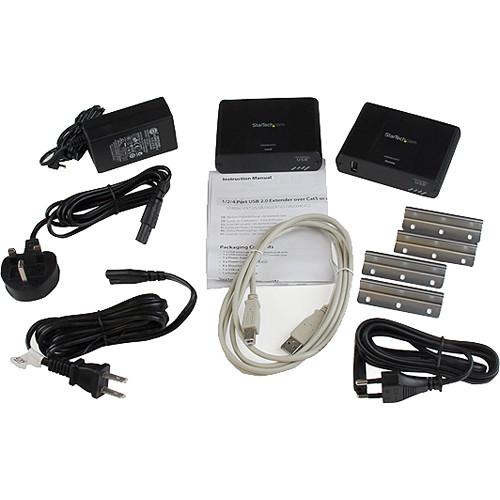

UPC: 065030847780 In the Box StarTech 1-Port USB 2.0 Extender over Cat5/6 (Black) USB 2.0 Cable Mounting Kit Universal Power Adapter 3 x Power Adapter Cord (NA/EU/UK) Limited 2-Year Warranty Brochure PDF 156.7kb More from Manufacturer vqxwwruyvcwctt Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 1-Port USB 2.0 Extender over Cat5 6 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

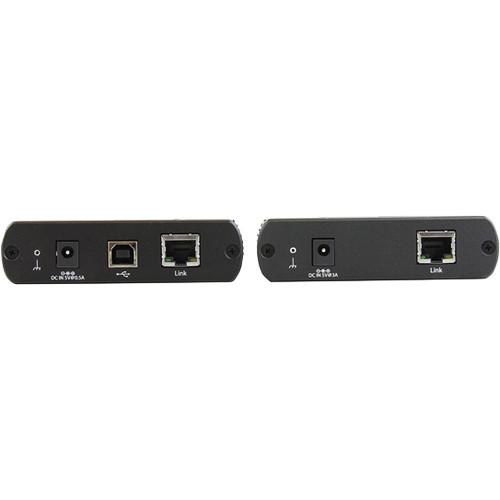

Technical parametersStarTech USB2001EXT2 Specs | | | Ports | 1 | | Cabling Type | Cat5e UTP or better | | Connectors | Local Unit:
1 x RJ-45, female
1 x USB Type-B (4-pin), female
Remote Unit:
1 x RJ-45, female
1 x USB Type-A (4-pin), female | | | | Maximum Data Transfer Rate | 480 Mbps | | Maximum Distance | 330' (100 m) | | OS Compatibility | Windows 2000 / XP (32/64) / Server 2003 (32/64) / Vista (32/64) / 7 (32/64) / Server 2008 R2 / Windows CE 6.0
Mac OS X
Linux | | LED Indicators | 1 x Activity
1 x Host connection
1 x Link
1 x Power
1 x USB link | | | | Input Voltage | 110 to 240 VAC | | Output Voltage | 5 VDC | | Output Current | 3 A | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Humidity | 20 to 90% RH | | | | Enclosure Type | Aluminum | | Requirements | System and Cable: USB enabled computer system with available USB port | | Dimensions (L x W x H) | 3.9 x 3.0 x 1.0" (9.9 x 7.6 x 2.5 cm) | | Weight | 17.6 oz (500 g) | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 10.7 x 7.4 x 4.3" |
