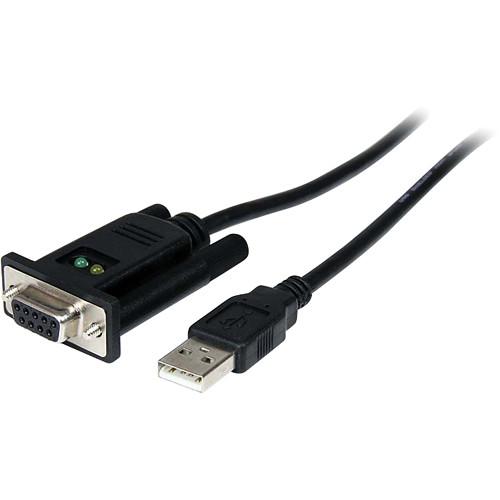

User Manual for StarTech 1-Port USB to Null Modem RS232 DB9 Serial DCE Adapter Cable with FTDI Click to enlarge the picture
Contents of the user manual for the StarTech 1-Port USB to Null Modem
- Product category: Serial/Control Cables & Adapters StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Serial/Control Cables & Adapters
 |
User manual for the StarTech 1-Port USB to Null Modem contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The 1-Port USB to Null Modem RS232 DB9 Serial DCE Adapter Cable with FTDI from StarTech converts an available USB 1.1 or 2.0 port into an RS232 null modem serial DB9 port, solving DCE/DTE conflicts directly without requiring additional cross-wired serial cables or adapters. This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer or if the system is rebooted. The integrated FTDI chipset supports additional customization, advanced features and compatibility not necessarily offered by other solutions. The USB to Null Modem Serial Adapter Cable is compatible with a broad list of operating systems including Windows, Windows CE, Mac OS and Linux, making it easier to integrate into mixed environments. - The USB to Null Modem Serial Adapter Cable solves DTE/DCE conflicts without requiring additional adapters or cables
- The integrated FTDI USB UART chipset is highly customizable and broadly compatible, making it the ideal solution for any setup
- Portable USB-powered design requires no bulky power adapter or outlet
- Baud rate of up to 921.6 Kbps
- COM port assignments maintained across reboot
- Compatible with USB 1.1 or 2.0 ports
- Compatible with Windows, Mac OS and Linux
- Single cable design for portability
- Perfect for IT administrators looking to add legacy functionality to newer notebooks, PCs and servers that lack an integrated RS232 port
- Connect, monitor and control industrial/automotive sensors and equipment
- Connect bar code scanners, receipt printers and other point of sale devices
- Connect and program LED and digital signage boards with serial communication ports
- Connect a satellite receiver, serial modem or PDU
UPC: 065030846837 In the Box StarTech 1-Port USB to Null Modem RS232 DB9 Serial DCE Adapter Cable with FTDI Driver CD 2 Year Warranty Brochure PDF 158.8kbtxbususawcudzqdazfxxavsd More from Manufacturer txbususawcudzqdazfxxavsd Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 1-Port USB to Null Modem RS232 DB9 Serial DCE Adapter Cable with FTDI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech ICUSB232FTN Specs | Hardware | Interface: Serial
Port Style: Cable adapter
Ports: 1
Bus Type: USB 2.0
Chipset ID: FTDI - FT232RL

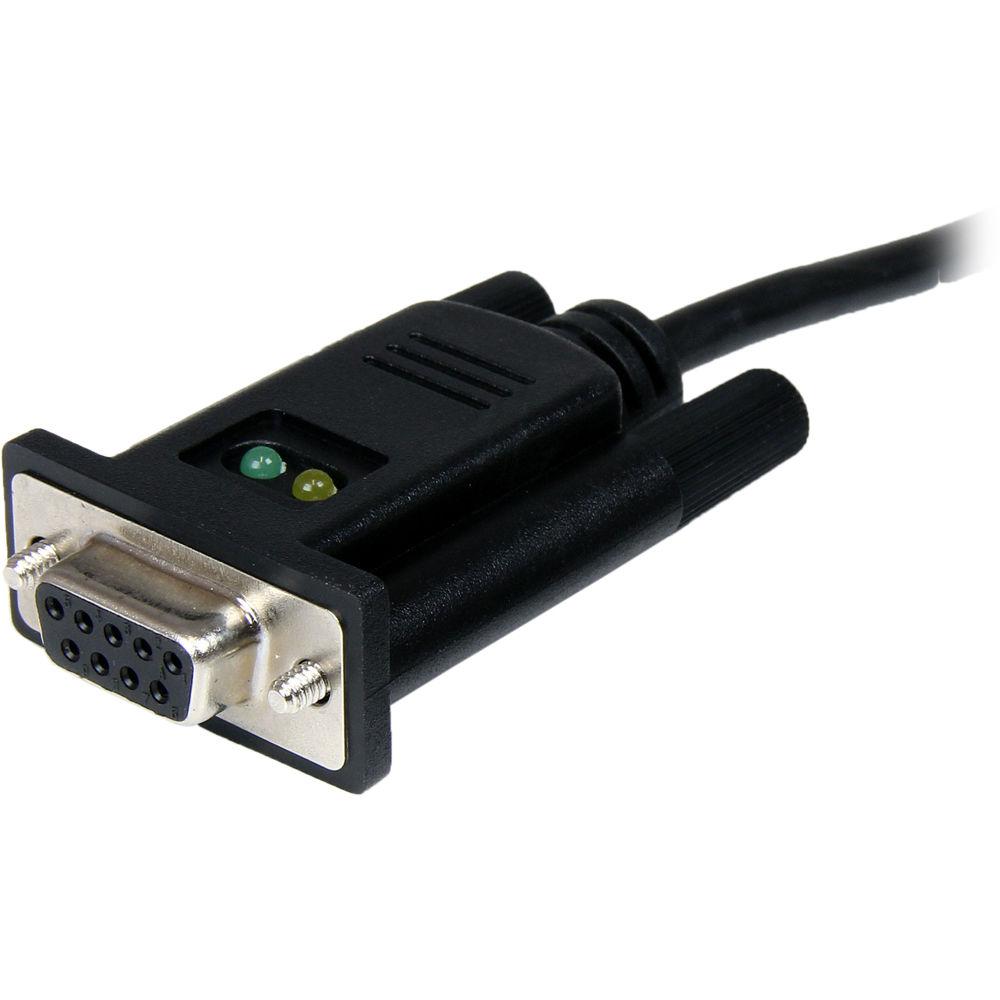

Connector 1: 1 - DB-9 (9-pin; D-Sub) female

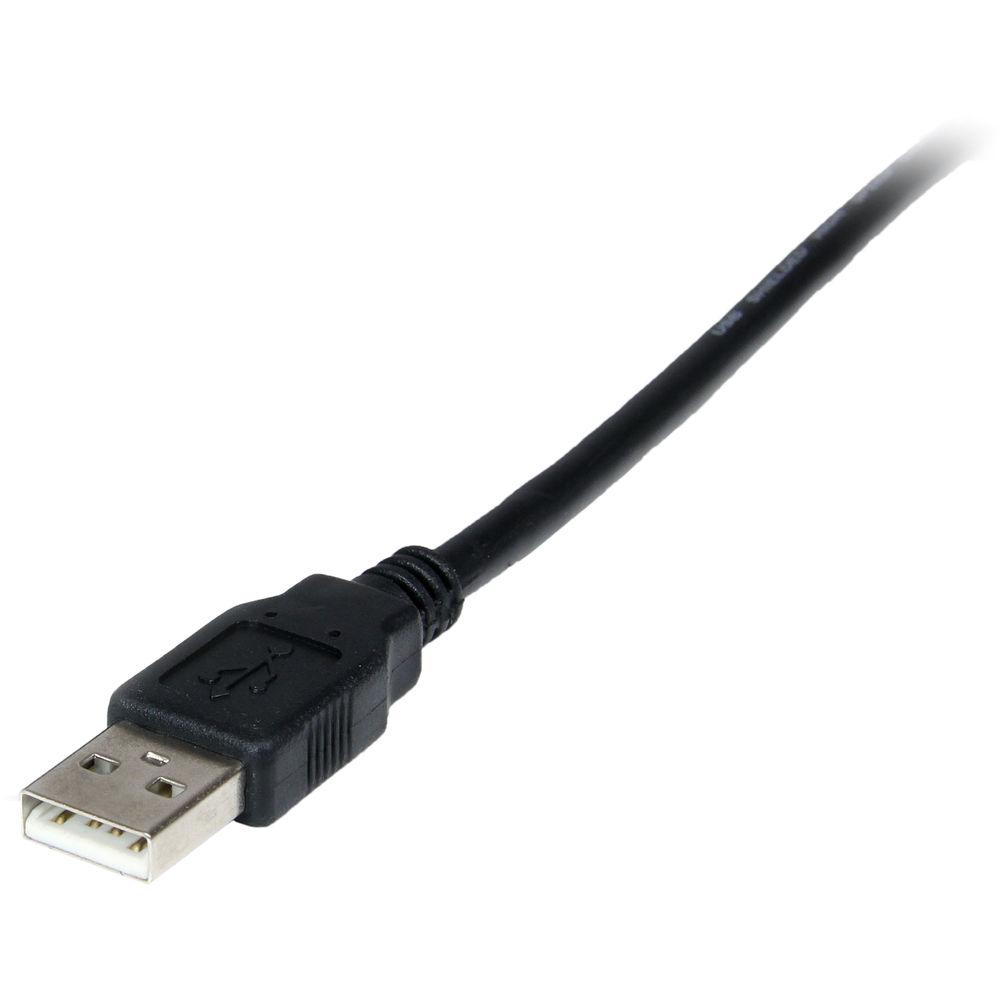

Connector 2: 1 - USB A (4-pin) male | | Performance | Serial Protocol:RS-232
Max Baud Rate: 921.6 Kbps
Data Bits: 7, 8
FIFO: 256 bytes
Parity: None, Odd, Even, Mark, Space
Stop Bits: 1, 2 | | | | Color | Black | | Enclosure Type | Plastic | | Power Adapter | USB-powered | | | | Humidity | 5 ~ 95% RH | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | | | OS Compatibility | Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), 2000, CE (4.2+)
Windows Server 2008 R2/ 2003 (32/64-bit)
Mac OS 9.x, 10.x (tested up to 10.8)
Linux | | Requirements | System and Cable Requirements:
1 x available USB 1.1 (or better) port | | Certifications | CE, FCC, RoHS | | Cable Length | 3.3' (1 m) | | Dimensions (LxWxH) | 7.0 x 1.3 x 0.6" (179.0 x 33.5 x 16.5 mm) | | Weight | 3.1 oz (88.0 g) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 8.3 x 5.7 x 1.6" |
