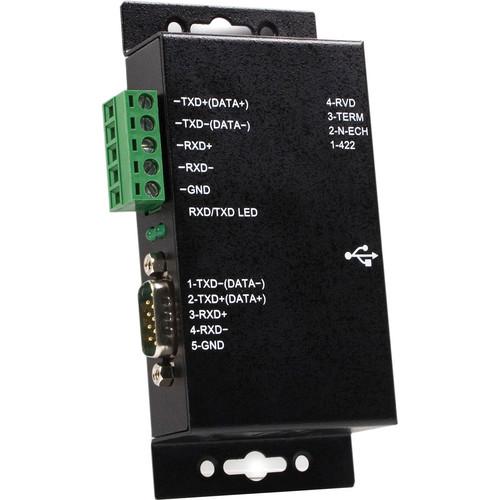

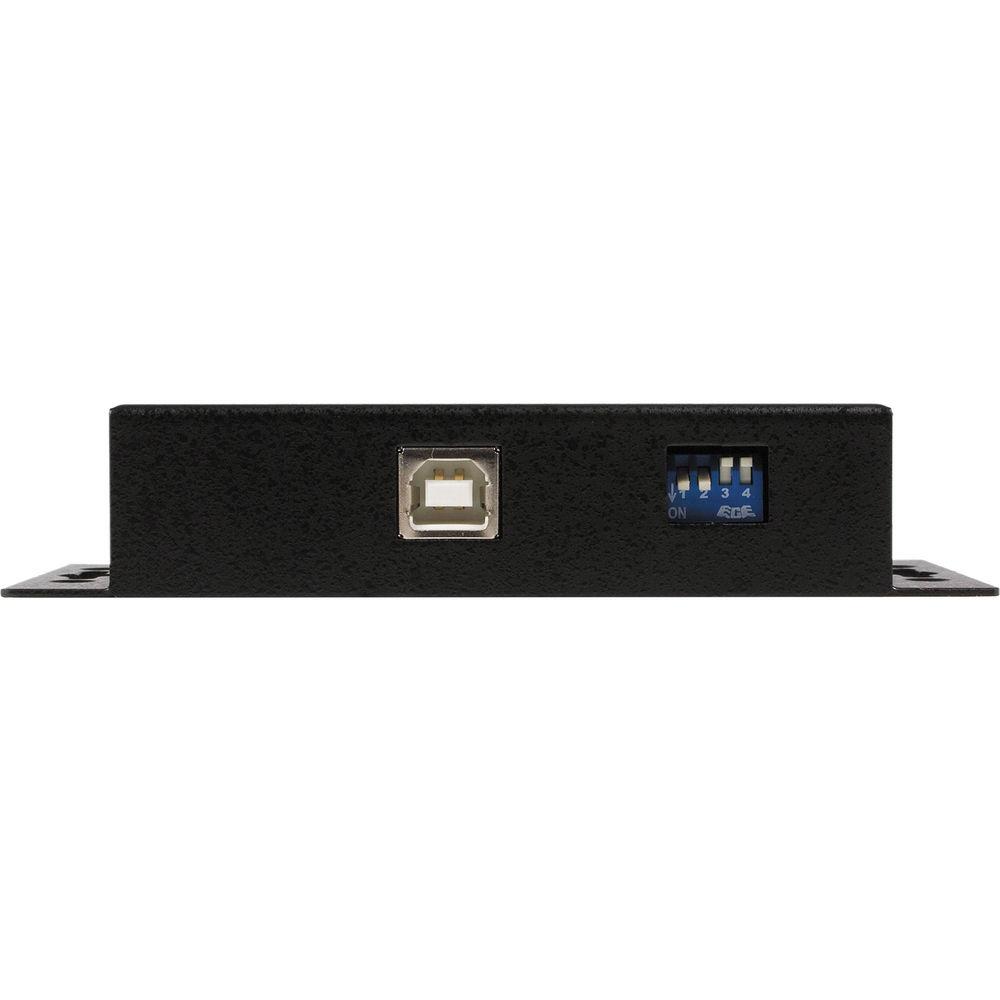

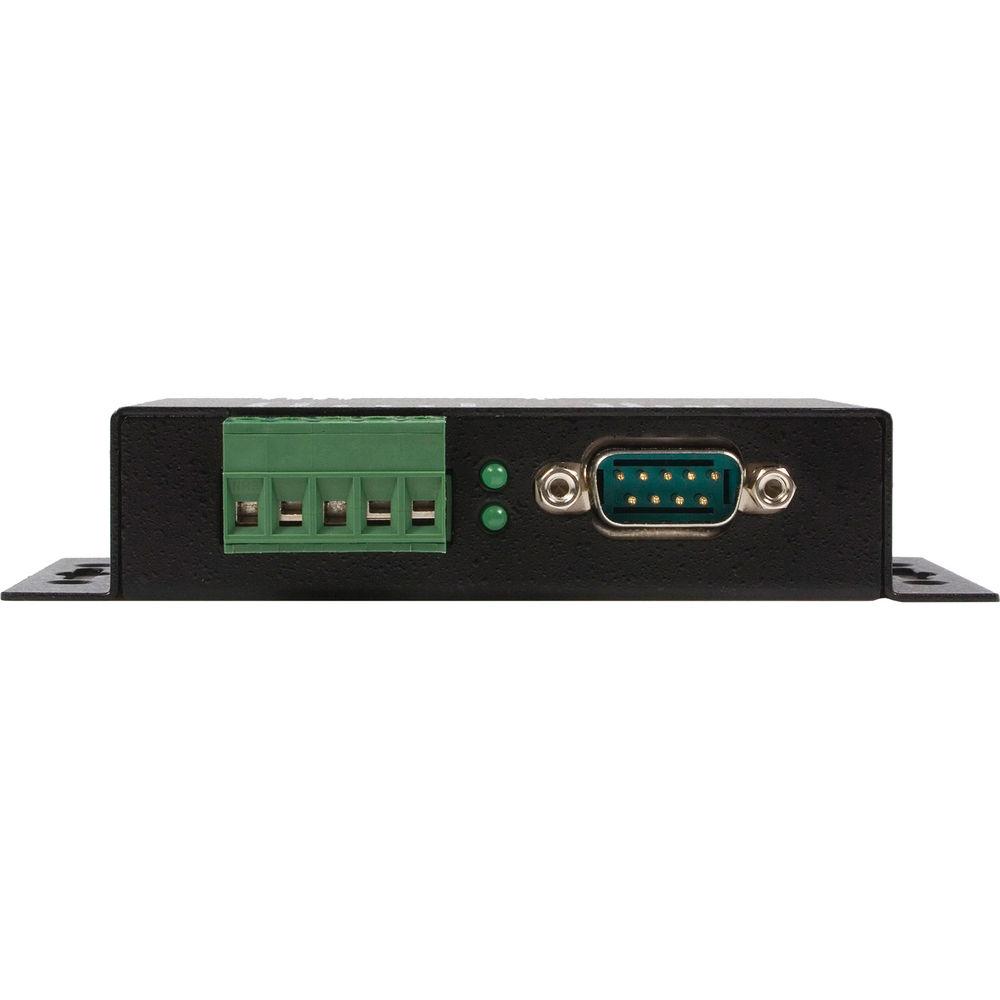

Product description The black 1-Port USB to RS-422/RS-485 Serial Adapter with Isolation from StarTech adds an RS-422/485 serial port to your laptop or desktop computer through USB. The adapter allows connection with any RS-422 or RS-485 serial device through the provided DB-9 port or hard-wired to the terminal block. The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices. The RS-422/485 converter receives full power through the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS-422/485 converter is ruggedly constructed and can be mounted nearly anywhere. - Supports RS-422 and RS-485 serial interfaces via DB9 or terminal block connections for versatile connection options
- RS-485 mode supports Auto Transceiver Turn Around (ATTA)
- Circuit isolation provides electrical protection for sensitive and expensive industrial equipment
- The rugged, USB bus powered enclosure requires no external power adapter for simple integration into harsh industrial environments
- The adapter provides one RS-422/485 port while powering the device through USB
- The adapter is compatible with both USB 2.0 and USB 1.1
- The adapter features optical isolation and surge protection
- It supports 4-wire RS-422 and 2-wire RS-485 applications
- Applications: PoS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
Hospitality/Restaurant (credit card/debit card reader, serial printers)
Hospital (monitoring equipment, nurses' stations)

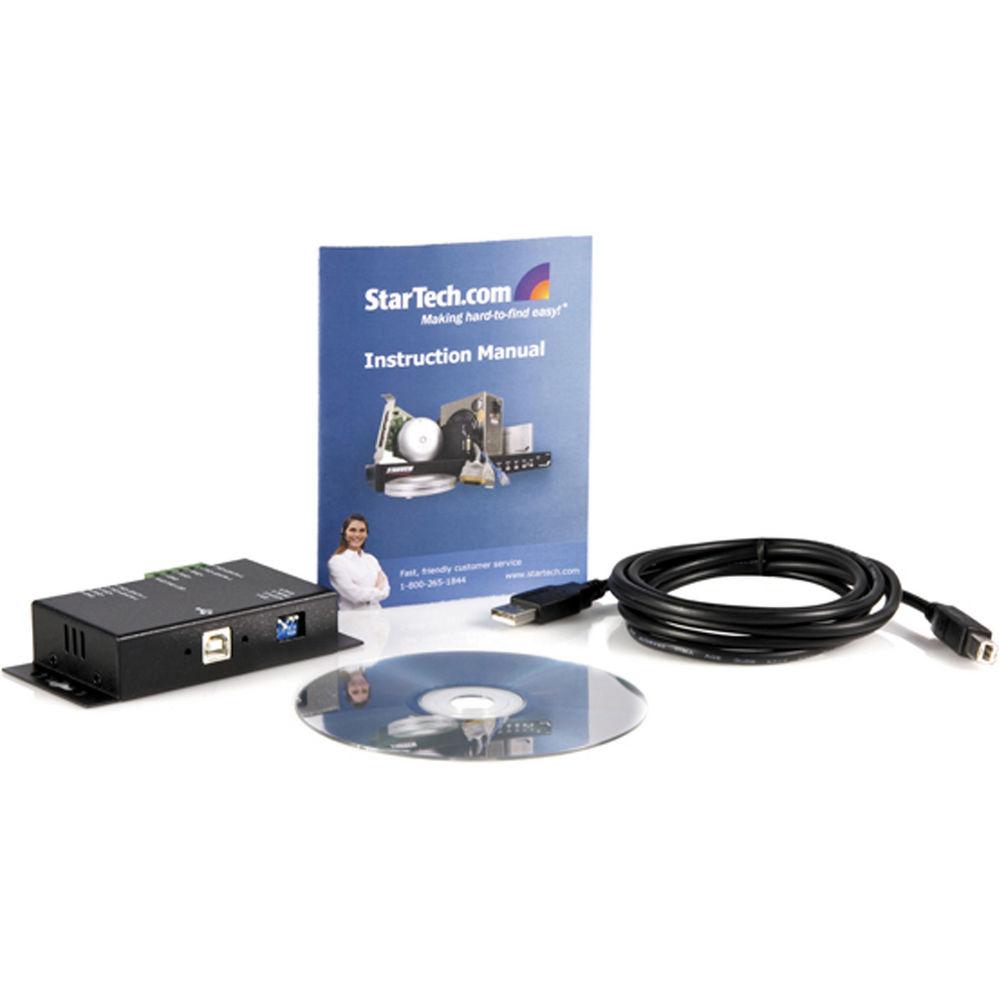

Security (UPS control, access key panels, video cameras, card readers) UPC: 065030830683 In the Box StarTech 1-Port USB to RS-422/RS-485 Serial Adapter with Isolation (Black) 6' (1.8 m) USB A to B Cable Driver CD 2-Year Warranty Brochure PDF 141kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 1-Port USB to RS-422 RS-485 Serial Adapter with Isolation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech ICUSB422IS Specs | Interface | Serial | | Port Style | External Hub | | Port | 1 | | Bus Type | USB 2.0 | | Chipset ID | FTDI - FT232RL | | | | Connector Type | 1 - USB B (4-pin) female | | External Ports | 1 - DB-9 (9-pin; D-Sub) male
1 - Terminal Block (5 wire) | | Serial Protocol | RS-422/485 | | Max Baud Rate | 921.6 Kb/s | | Data Bits | 7, 8 | | FIFO Buffer | 256 bytes | | Parity | Even, Odd, Mark, Space, None | | Stop Bits | 1, 2 | | Isolation | 2500 Vrms | | Surge Protection | 500 W | | OS Compatibility | Windows 8 (32/64 bit), 7 (32/64), Vista (32/64), XP (32/64),
XP Embedded, CE 6.0/5.0/4.2, 2000, ME, 98SE, 95, DOS
Windows Server 2008 R2, 2003(32/64)
Mac OS 8.x, 9.x, 10.x (Tested up to 10.8)
Linux | | | | Power Adapter | USB-Powered | | Input Voltage | 5 DC | | Input Current | 200 mA | | | | Humidity | 5 to 95% RH | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | | | Cable Length | 6' (1.8 m) | | Enclosure | Steel | | Dimensions (L x W x D) | 4.6 x 2.5 x 0.9" (116 x 63 x 22.8 mm) | | Weight | 6.4 oz (181.4 g) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 8.2 x 5.7 x 1.6" |
