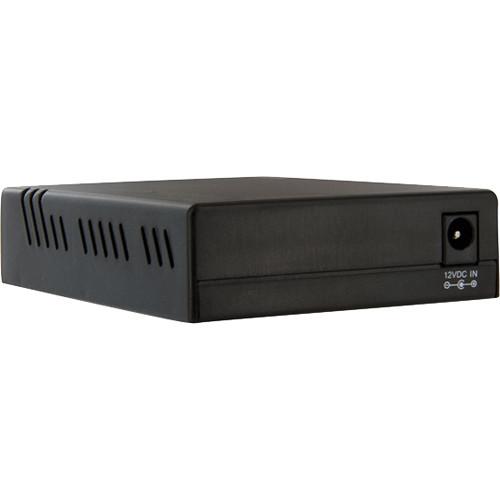

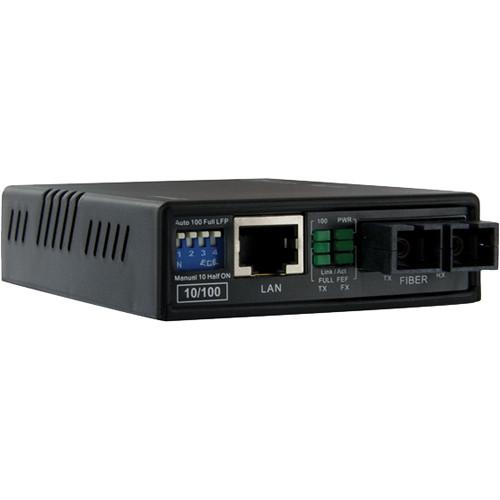

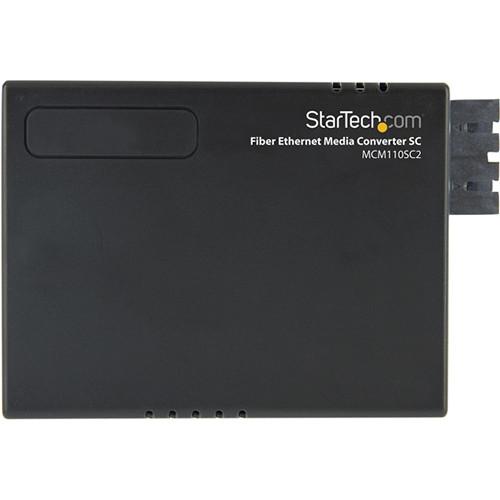

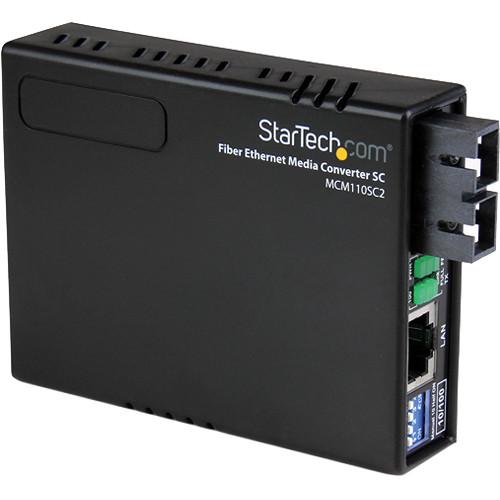

User Manual for StarTech 10 100 Multi-Mode Fiber to Ethernet Media Converter Click to enlarge the picture
Contents of the user manual for the StarTech 10 100 Multi-Mode Fiber to
- Product category: Network Transceivers StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Network Transceivers
 |
User manual for the StarTech 10 100 Multi-Mode Fiber to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The black 10/100 Multi-Mode Fiber to Ethernet Media Converter from StarTech is an Ethernet-fiber link that converts to and from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC-terminated multimode fiber backbone.The converter supports fiber optic transmissions up to 1.2 miles (2km) that allows you to connect 10Base-T or 100Base-Tx Ethernet networks to remote locations using an SC-terminated multimode fiber cable (sold separately) while delivering solid network performance and scalability.This versatile Ethernet-to-fiber converter is compatible with most 3COM, Cisco, Lucent, and Nortel networks and fully complies with applicable IEEE 802.3 standards. - Compatible with most 3COM, Cisco, Lucent, and Nortel networks
- Supports transparent Q-in-Q double tagged frames, LFP (Link Fault Pass through), IEEE 802.1q Tag VLAN pass thru, and flow control (pause)
- Provides switch configuration of half / full duplex transfer mode for FX port
- LED indicators for simple Ethernet / fiber network link monitoring
- Forward 9K jumbo packets in converter mode
- Auto negotiation or force 10/100 Mb/s and MDI/MDI-X (crossover for TX port)
- Auto detects half / full duplex transfer mode from the TX port
- Manual controls for UTP mode, speed, full and half duplex, and LFP (Link Fault pass-through) On / Off
- Improve network scalability by increasing the distances between network points up to 1.2 miles (2 km) via a multi-mode fiber optic cable (sold separately)
- Compact, lightweight enclosure is easily mounted or placed into any location with little or no configuration needed
- Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion
- Designed for large, high speed work groups that require expansion of fast Ethernet networks
- Connect two or more buildings via fiber optics on the same campus
- Connect remote sub-networks to larger fiber optic networks / backbones
- CE, FC, and RoHS compliant

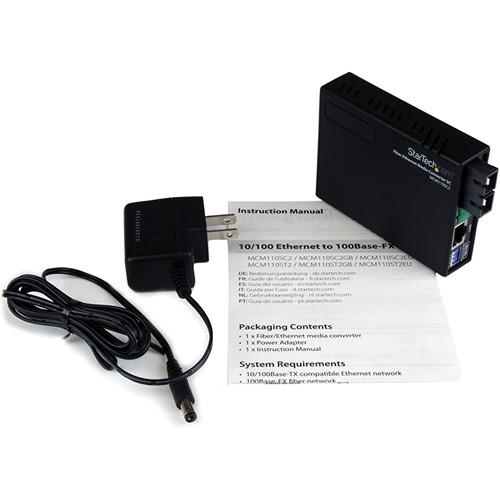

UPC: 065030835626 In the Box StarTech 10/100 Multi-Mode Fiber to Ethernet Media Converter (Black) Power Adapter Limited 2-Year Warranty Brochure PDF 204.1kbfsrtwqyzftwdaqrc More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 10 100 Multi-Mode Fiber to Ethernet Media Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech MCM110SC2 Specs | Ethernet Standards | IEEE 802.3, IEEE 802.3u | | Ports | 1 x SC
1 x RJ45 | | Networking Technology | 10BASE-T, 100BASE-TX, 100BASE-FX | | Wavelength | 1310 nm | | Maximum Networking Distance | 6562' / 2000 m | | Maximum Data Rate | 100 Mbps | | Mode | Multi-Mode | | Operating Mode | Half Duplex, Full Duplex | | Plug Type | M | | AC Input Power | 115 VAC, 60 Hz | | DC Input Power | 12 VDC at 2 A | | Center Tip Polarity | Positive | | Material | Plastic | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 19 to 90% | | Storage Temperature | 14 to 158°F / -10 to 70°C | | Dimensions (L x W x H) | 3.7 x 3.0 x 0.8" / 94.0 x 76.2 x 20.3 mm | | Weight | 3.2 oz / 90.7 g | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 6.9 x 5.7 x 2.5" |
