User Manual for StarTech 10 100 VDSL2 Ethernet Extender Kit over Single Pair Wire Click to enlarge the picture
Contents of the user manual for the StarTech 10 100 VDSL2 Ethernet Extender
- Product category: Signal Extenders StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Signal Extenders
 |
User manual for the StarTech 10 100 VDSL2 Ethernet Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

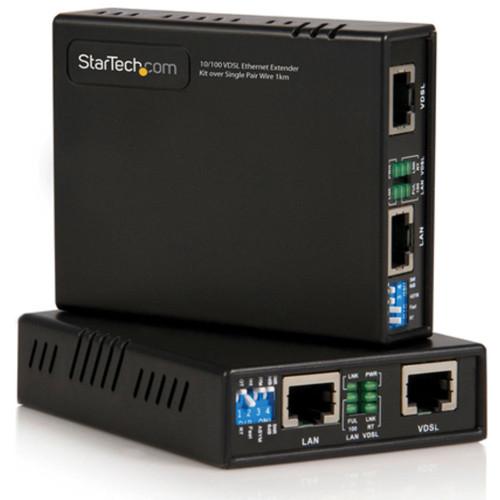

Product description The black StarTech 110VDSLEXT 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire is an easy to install, out-of-the-box solution that includes an Ethernet VDSL extender and receiver, an RJ45 to VDSL cable, and two power adapters. This kit lets you span a 10/100 network over extremely long distances (up to 0.6 miles) while still maintaining high-speed network connectivity, allowing you to run the connection over standard RJ45 cabling, existing RJ11 phone lines, or any other set of single pair wires.You can use this kit for a broad range of applications including connecting isolated user stations within the same building or between separate buildings, or for overcoming infrastructure obstacles and distances (e.g., older stone/concrete architecture) where new wiring or wireless connection may be difficult. The VDSL Ethernet LAN Extender Kit helps eliminate extra expenses by allowing video streaming and data to share the same telephone pair without interference. - Features
-
- Provides high-speed Ethernet extension over copper telephone line or other existing two-pair wiring, enabling network connectivity to remote locations up to 0.6 miles (1km) away
- Allows network connectivity in buildings made of stone/concrete, or heritage buildings where new Ethernet cabling or wireless connections are difficult
- Simple plug-and-play installation with no software or driver installation for a hassle-free setup
- IEEE 802.1Q VLAN tag transparent
- Selectable CPE and CO mode via DIP switch
- Supports flow control for fast Ethernet (pause frame or back pressure)
- Allows for the ability to select fixed SNR margin (9 dB) or fixed target data rate
- Lightweight and compact design
- Supports both symmetric and asymmetric transmission
- Lifetime technical support
- Applications
-
- Provide Ethernet over copper connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
- Extend network connectivity to remote areas of stadiums, auditoriums, or other venues
- Industrial applications include controlling CNC machinery, polling bar code scanner data, administering process control equipment, and other harsh environment applications
- Monitor and control medical equipment, security keypads/card scanners, point of sale equipment and remote sensor data, and various other healthcare related network communications
- Remote sensor monitoring for traffic flow management (air traffic control, expressway flow)

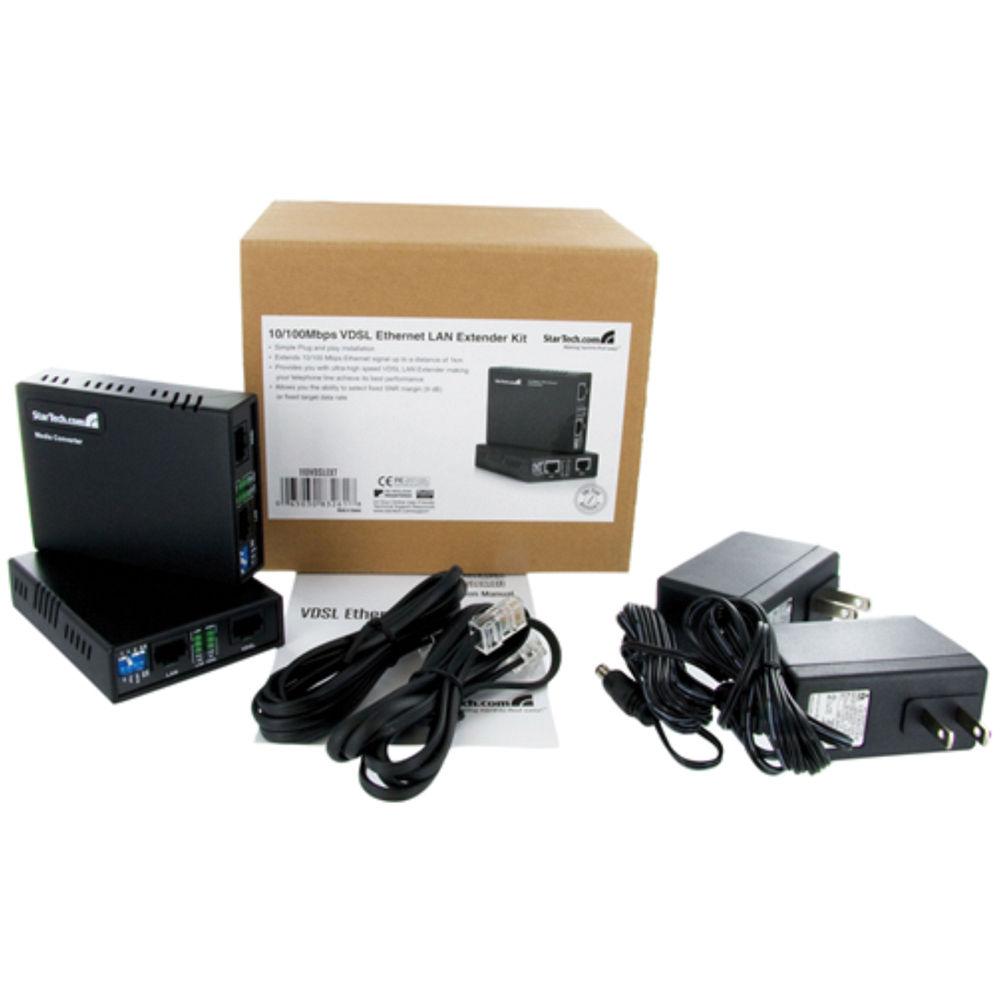

UPC: 065030832618 In the Box StarTech 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire (Black) Ethernet VDSL Extender Ethernet VDSL Receiver 2 x RJ45 to VDSL Cable 2 x Power Adapter Limited 2-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 10 100 VDSL2 Ethernet Extender Kit over Single Pair Wire in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech 110VDSLEXT Specs | | | Industry Standards | IEEE 802.3/802.3u/802.3x 10/100Base-T Auto-Negotiation, Auto-MDI/MDI-X, ITU-T G993.1/993.2
Onboard Surge Protection | | Connectors | Local Unit Connectors: 2 x RJ45 Female
Remote Unit Connectors:2 x RJ45 Female | | | | Maximum Data Transfer Rate | 0' / 0 m: 100 Mb/s
984' / 300 m: 75 Mb/s

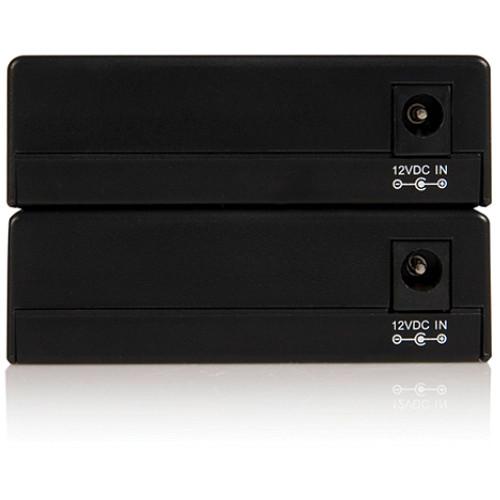

3280' / 1 km: 10 Mb/s | | Maximum Distance | 3000' / 1000 m You can use up to 4 sets over a single Cat 5e/6 and 2 sets over Cat 5 cable for separate LAN or VLAN connections, or bridged into a trunk line for additional speed/bandwidth over long distances. | | Indicators | LED Indicators: 3 x LAN: ACT/LNK, 10/100 Mb/s, Half/Full Duplex and 3 x VDSL: Power On/Off, CO/CPE, Idle/Trained/Link | | Output Voltage | 12 VDC | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | 32 to 158°F / 0 to 70°C | | Humidity | 10 to 90% RH | | | | Dimensions (L x W x H) | 3.7 x 2.8 x 0.9" / 95.0 x 72.0 x 22.0 mm | | Weight | 3.2 oz / 90.0 g | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 6.8 x 5.7 x 2.4" |
