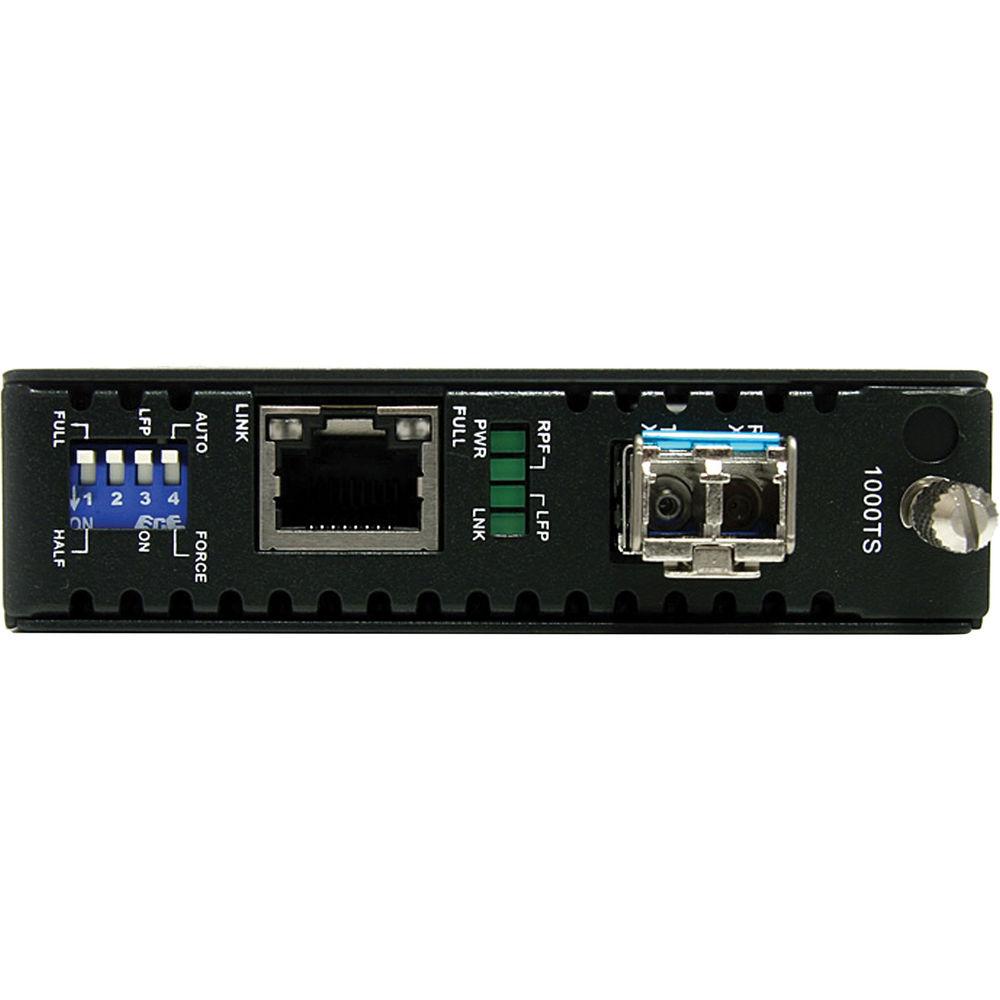

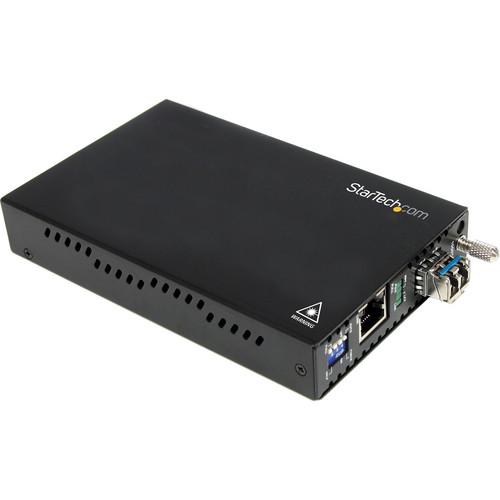

Product description The black 1000 Mb/s Gigabit Multi-Mode Fiber Media Converter from StarTech lets you extend a Gigabit Ethernet network over multi-mode fiber at distances up to 1,804' (550m).
Used for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a 1000Base-LC fiber backbone, this converter supports full Gigabit speeds for reliable network performance and scalability. Designed to offer a durable and convenient Ethernet-to-fiber solution, it features an all-steel chassis and simple plug-and-play installation wherein minimal configuration is required.

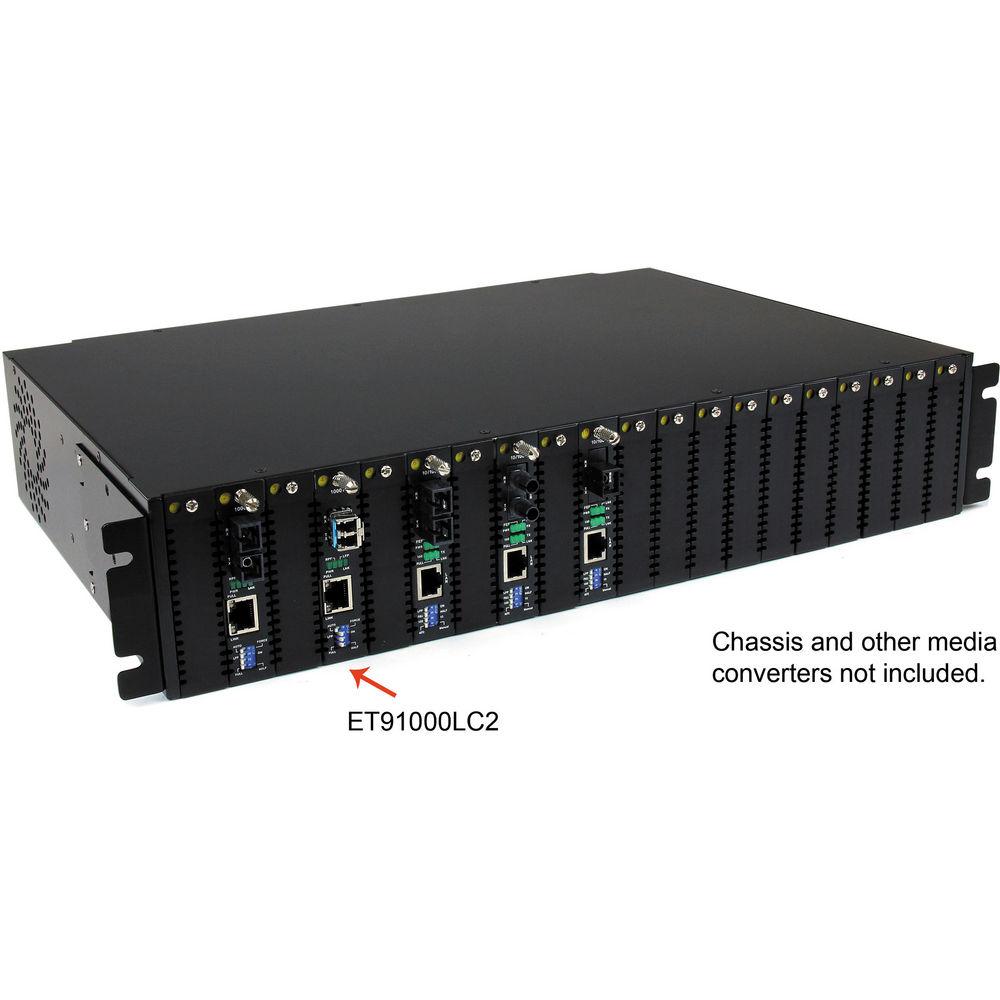

For added versatility, this fiber media converter supports standalone operation or installation into the ETCHS2U 20-slot, 2U rackmount chassis, as well as a replaceable SFP slot. - Supports standalone operation or installation into the ETCHS2U rackmount chassis
- Extends/bridges networks using fiber cabling
- Link loss forwarding, remote status monitoring, 2 frame lengths
- Maximum fiber cable length of (1,804') 550m
- Supports full or half-duplex operation
- Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
- Used for secure connections required by government agencies where EMI is not acceptable
- Connect traffic control/monitoring systems at extreme distances to the main office
- Extend network connectivity to remote areas of stadiums, auditoriums or other venues
- Converts 1000Base-LX fiber optic signals to 1000Base-T Ethernet over multi mode fiber cable

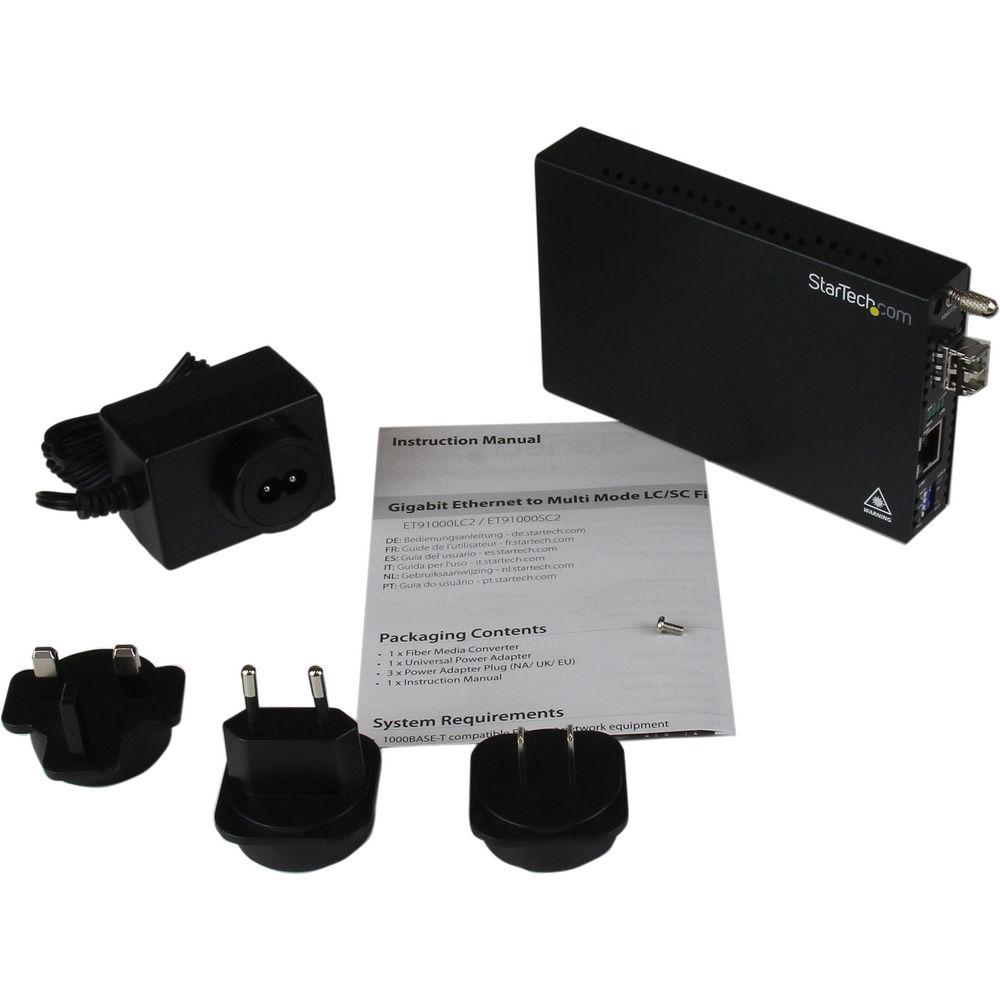

UPC: 065030846226 In the Box StarTech 1000 Mb/s Gigabit Multi-Mode Fiber Media Converter (LC Connector, Black) Universal Power Adapter 3 x Power Adapter Plug (NA/ UK/ EU) Limited 2-Year Warranty More from Manufacturer ytuseuutbtwrybcxztruxsuzsfvyxv Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 1000 Mb s Gigabit Multi-Mode Fiber Media Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech ET91000LC2 Specs | Ports | 1 x RJ45

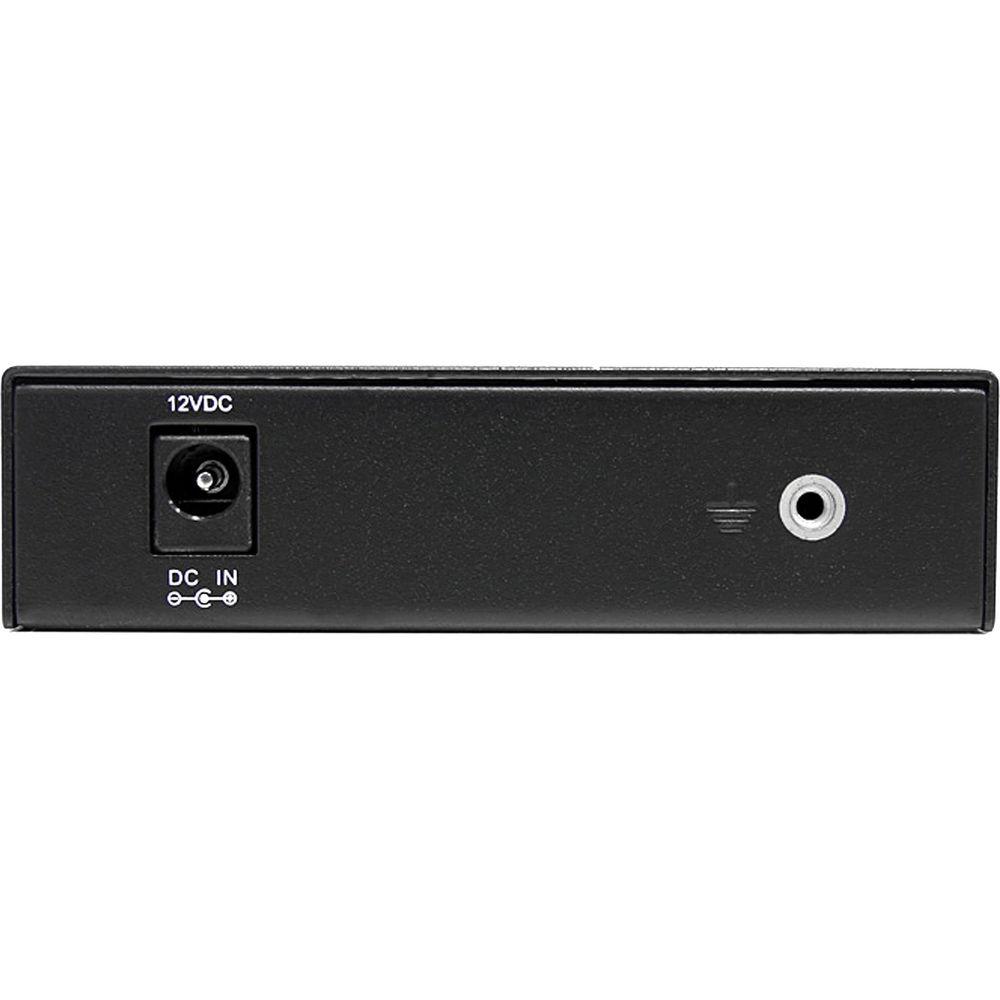

1 x LC | | Wavelength | 850 nm | | Maximum Networking Distance | 1804' / 550 m | | Maximum Data Rate | 2 Gbps | | Mode | Multi-Mode | | Operating Mode | Half Duplex, Full Duplex | | Plug Type | M | | Power Consumption | 4 W | | AC Input Power | 115 to 230 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 1 A | | Center Tip Polarity | Positive | | Material | Metal | | Operating Temperature | 32 to 140°F / 0 to 60°C | | Operating Humidity | 16 to 90% | | Storage Temperature | 14 to 158°F / -10 to 70°C | | Dimensions (L x W x H) | 6.3 x 3.7 x 0.8" / 160.0 x 94.0 x 20.3 mm | | Weight | 21.2 oz / 601 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 9.1 x 7.4 x 3.0" |
