User Manual for StarTech 1000 Mb s Gigabit Single-Mode Ethernet Copper to Fiber Media Converter Click to enlarge the picture
Contents of the user manual for the StarTech 1000 Mb s Gigabit Single-Mode
- Product category: Network Transceivers StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Network Transceivers
 |
User manual for the StarTech 1000 Mb s Gigabit Single-Mode contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

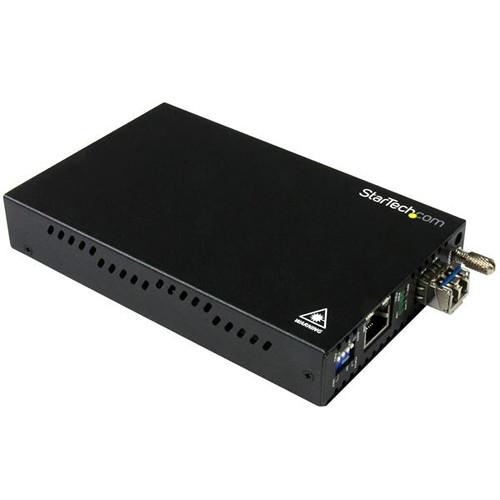

Product description The 1000 Mb/s Gigabit Single-Mode Ethernet Copper to Fiber Media Converter from StarTech converts a Gigabit Ethernet signal to an optical one, allowing you to extend a network connection using a fiber backbone. The converter is compatible with single-mode fiber cables that feature a wavelength of 1310 nm and provides a connection distance of up to 12.4 miles (20 km). Its steel enclosure ensures that it can withstand demands of harsh environments while also reducing the strain on copper-based network equipment. This simple solution, which is rack-mountable and also works as a standalone unit, joins Gigabit Ethernet networks in different locations together while ensuring reliable network performance and scalability. Furthermore, it can operate in half- or full-duplex mode and supports auto MDIX so you can set up and troubleshoot your network easily. -
- Flexible network integration with support for rack-mount and standalone operation
- Converts copper to fiber and extends your network up to 12.4 miles (20 km) using single-mode LC fiber-optic cable
- Removable SFP module (LC fiber connector) can be replaced should network infrastructure change

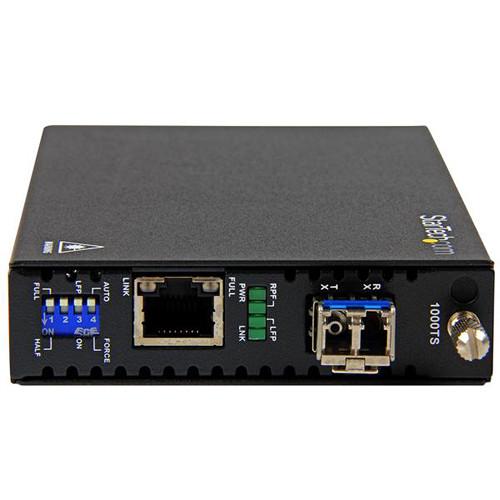

- Supports Link Fault Passthrough (LFP), Auto Laser Shutdown (ALS), and Auto MDIX
- Up to 9.6K Jumbo Frame support
- Compatible with Gigabit (1000 Mbps) copper (IEEE 802.3ab, 1000BASE-T) and fiber (IEEE 802.3z, 1000BASE-LX) protocols
- Rugged steel enclosure
- Simple installation

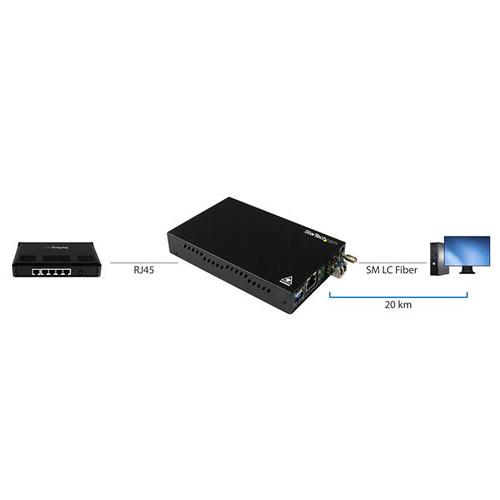

Applications - Connect to your network from remote areas or separate buildings at greater distances than copper (RJ45) cable allows with fiber optic cable
- Ideal for secure connections required by government agencies where EMI isn't acceptable
- Removable SFP module lets you easily expand the number of ports on your existing network now or in the future

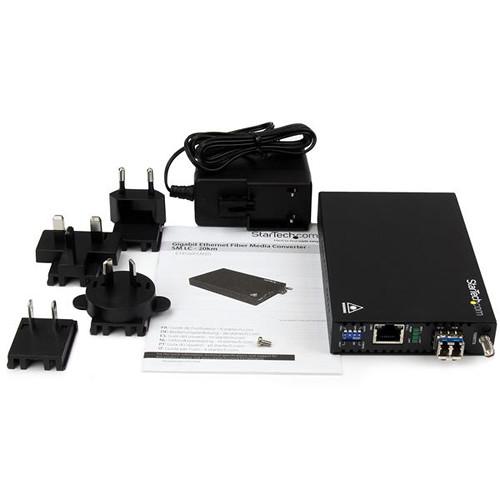

UPC: 065030864947 In the Box StarTech 1000 Mb/s Gigabit Single-Mode Ethernet Copper to Fiber Media Converter Universal Power Adapter Limited 2-Year Warranty Brochure PDF 232.1kbyfxaquuyryvazveyrfdrcdxdxszczbfbzru More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 1000 Mb s Gigabit Single-Mode Ethernet Copper to Fiber Media Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech ET91000SM20 Specs | Ethernet Standards | IEEE 802.3z, IEEE 802.3ab | | Ports | 1 x RJ45

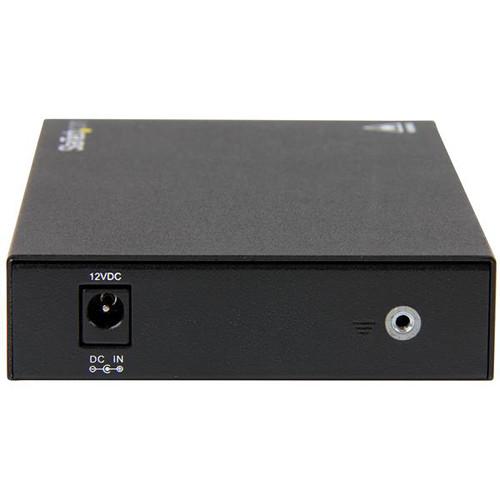

1 x Duplex LC | | Networking Technology | 1000BASE-T, 1000BASE-LX | | Wavelength | 1310 nm | | Maximum Networking Distance | 65,617' / 20,000 m | | Maximum Data Rate | 2 Gbps | | Mode | Single-Mode | | Operating Mode | Half Duplex, Full Duplex | | Plug Type | M | | PoE | No | | Power Consumption | 19.2 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.48 A | | DC Input Power | 12 VDC at 1 A | | Center Tip Polarity | Positive | | Material | Metal, Plastic | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 21 to 90% | | Storage Temperature | 14 to 158°F / -10 to 70°C | | Dimensions (L x W x H) | 6.4 x 3.5 x 0.9" / 162.6 x 88.9 x 22.9 mm | | Weight | 27.2 oz / 771.1 g | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 8.0 x 5.4 x 3.6" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 80 owners. Add your rating and experience with the product.
