User Manual for StarTech 1U 17" HD 1080p Rackmount LCD Console with Front USB Hub

Click to enlarge the picture
StarTech 1U 17" HD 1080p Rackmount LCD Console with Front USB Hub Contents of the user manual for the StarTech 1U 17" HD 1080p Rackmount
  • Product category: LCD KVM Consoles StarTech
  • Brand: StarTech
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for StarTech LCD KVM Consoles

StarTech 1U 17" HD 1080p Rackmount LCD Console with Front USB Hub StarTech 1U 17" HD 1080p Rackmount LCD Console with Front USB Hub StarTech 1U 17" HD 1080p Rackmount LCD Console with Front USB Hub
User manual for the StarTech 1U 17" HD 1080p Rackmount contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any StarTech product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!



Product description

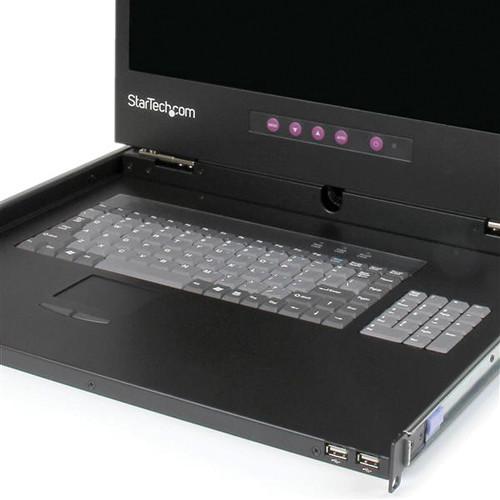

The black 1U 17" HD 1080p Rackmount LCD Console with Front USB Hub from StarTech lets you control server equipment. The centralized, 17" 1080p KVM console with an integrated 2-port front USB hub offers support for DVI or VGA, and USB or PS/2 console connections and includes all the necessary cabling. The integrated single port KVM module lets you connect the console to either a single system, or a multi-port KVM switch to manage multiple systems. The front panel USB hub places two easily accessible USB 2.0 ports for connecting external storage and other peripherals as needed. This rack mount LCD also includes a physical key-lock for added security in your server room.
  • 17" LCD supports HD resolutions up to 1920 x 1080
  • Durable, 1U rack-mountable design
  • Two front USB hub ports
  • VGA or DVI video input support
  • Compatible with USB or PS/2 PCs and KVMs
  • LED backlight; reduced power consumption
  • On Screen Display (OSD) control and LED indicators for easy-monitoring
  • Integrated 106-key US standard keyboard with touchpad

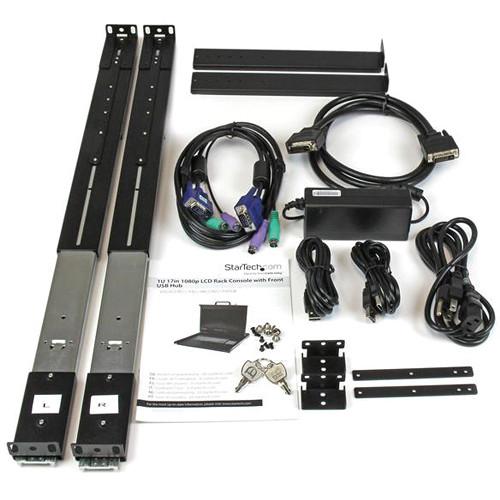

UPC: 065030854528 In the Box StarTech 1U 17" HD 1080p Rackmount LCD Console with Front USB Hub (Black)
  • 1 x Set Mounting Rail
  • 2 x Extended Brackets
  • 2 x Short Brackets
  • 2 x Short Bracket Attachments
  • 2 x Keys
  • 1 x 6' (1.8m) PS/2 VGA KVM Cable
  • 1 x 6' (1.8m) USB A-A Cable
  • 6 x #6-32x6 Flat Screws
  • 6 x M4x5 Screws
  • 1 x Power Adapter
  • Limited 2-Year Warranty
  • Brochure PDF 157.5kb More from Manufacturer Table of Contents




    Upload User Manual

    Have you got an user manual for the StarTech 1U 17" HD 1080p Rackmount LCD Console with Front USB Hub in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    StarTech RACKCONS17HD Specs

    Display Size 17" (43.2 cm)
    Aspect Ratio 16:9 (wide)
    Brightness 300 cd/m2
    Color Depth 8-bit, 16.7 million colors
    Contrast Ratio 650:1
    Number of Users 1 (maximum)
    MTBF 50, 000 hours
    Pixel Pitch Support (0.264 x 0.264 mm)
    Response Time 2 ms
    Viewing Angle (H/V) 140°/120°
    Panel Type Active Matrix TFT LCD
    PC Interface USB and PS/2
    PC Video Type DVI+VGA
    Mounting Rack-mountable
    U Height 1U
    Ports 1 x KVM

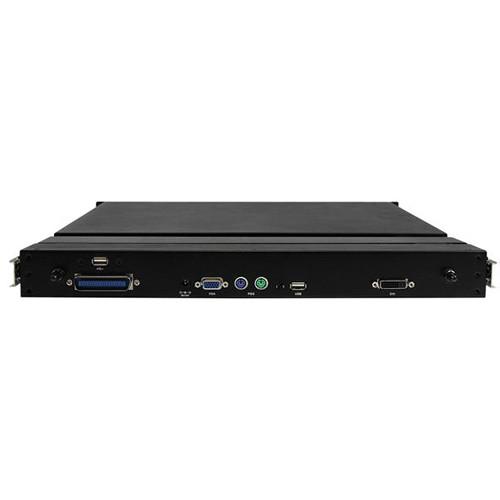

    Host Connectors 1 x DVI-I (29-pin)
    1 x VGA (15-pin; high density D-Sub)
    2 x PS/2 (6-pin; mini-DIN)
    2 x USB A (4-pin) on front
    2 x USB A (4-pin) on back
    Center Tip Polarity Positive
    Input Current 1.7 A
    Input Voltage 100 to 240 AC
    Output Current 4.17 A
    Output Voltage 12 DC
    Power Consumption 23.35 W
    Relative Humidity 10 to 90%
    Temperature Operating Temperature: 32 to 122°F (0 to 50°C)
    Storage Temperature: -4 to 140°F (-20 to 60°C)
    Enclosure Type Heavy duty steel
    Compatibility OS independent (no software or drivers required)
    Mounting Depth Maximum: 39.4" (1,000.0 mm)
    Minimum: 19.8" (504.0 mm)
    Dimensions (W x H x D) 17.3 x 1.7 x 18.5" (44.0 x 4.3 x 47.0 cm)
    Weight 20.5 lb (9.3 kg)
    Package Weight 37.5 lb
    Box Dimensions (LxWxH) 30.2 x 22.1 x 7.8"
