User Manual for StarTech 2.5" SATA Hot-Swap Drive Bay Click to enlarge the picture
Contents of the user manual for the StarTech 2.5" SATA Hot-Swap Drive Bay
- Product category: Internal Hard Drive Trays StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Internal Hard Drive Trays
 |
User manual for the StarTech 2.5" SATA Hot-Swap Drive Bay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

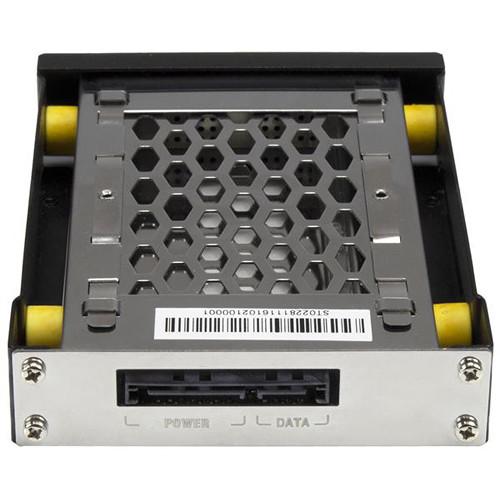

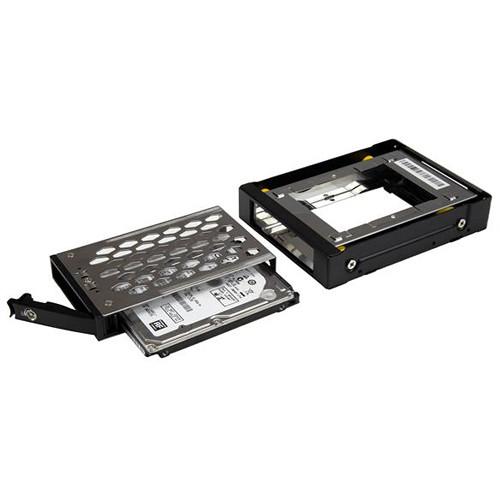

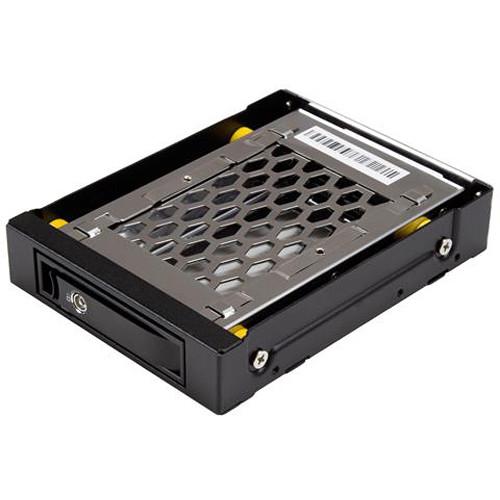

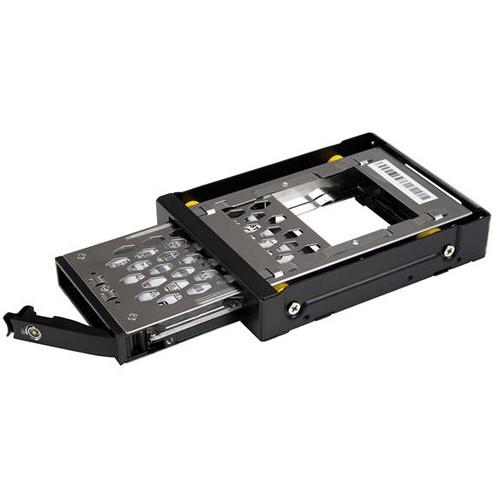

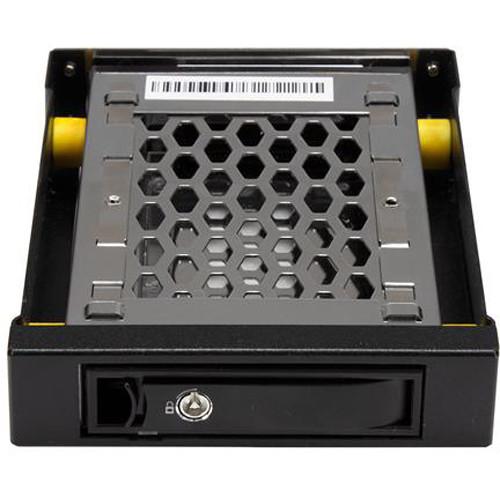

Product description The StarTech 2.5" SATA Hot-Swap Drive Bay converts a desktop's 3.5" bay to hold one 2.5" SSD or HDD. The bay is compatible with storage drives featuring a SATA III, II, or I interface and offers hot-swap support for quickly changing drives without restarting the system. To protect hard drives from vibrations, four anti-vibration bumpers are on board. Moreover, you can lock its drive bay door to prevent unauthorized access. - Hot swap drives between systems using a 2.5" SATA drive in a 3.5" front drive bay
- Four anti-vibration bumpers provide vibration protection
- Supports one 2.5" SATA SSD/HDD with drive heights from 5 to 15mm high
- Compatible with SATA I, II, and III interface with file transfer speed of up to 6 Gb/s
- Vents to optimize heat dissipation
- NSS connector has a 50,000+ insertions rating
UPC: 065030872829 In the Box StarTech 2.5" SATA Hot-Swap Drive Bay 2 x Keys SATA Cable Package of Screws Limited 2-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 2.5" SATA Hot-Swap Drive Bay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech SATBP125VP Specs | Interface | SATA | | Supported Drive Size | 2.5" with heights between 0.2 to 0.6" (5 to 15 mm) | | Hot Swap Support | Yes | | Insertion Rating | 50,000 | | Data Transfer Rate | SATA III: 6 Gb/s | | Connectors | Drive: SFF-8482 (29 pin, Data & Power, Internal SAS) plug
Host: SATA Data & Power Combo (7+15 pin) receptacle | | Indicator Lights | 1 (Power and Activity) | | Humidity | 5 to 65% | | Operating Temperature | -40 to 185°F / -40 to 85°C | | Storage Temperature | -4 to 131°F / -20 to 55°C | | Material of Construction | Aluminum and plastic | | Dimension (L x H x D) | 5.3 x 1 x 4" / 135 x 25 x 101.6 mm | | Weight | 10.7 oz / 304 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 6.7 x 5.0 x 2.0" |
