User Manual for StarTech 2.5" SATA to Mini SATA SSD Adapter Enclosure Click to enlarge the picture
Contents of the user manual for the StarTech 2.5" SATA to Mini SATA
- Product category: Internal Hard Drive Trays StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Internal Hard Drive Trays
|
User manual for the StarTech 2.5" SATA to Mini SATA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

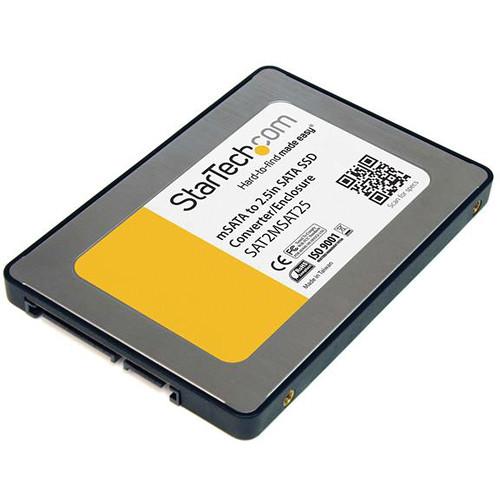

Product description The silver 2.5" SATA to Mini SATA SSD Adapter Enclosure from StarTech turns an mSATA (Mini SATA) mini SSD into a standard 2.5" SATA SSD for use anywhere. To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gb/s, when paired with compatible controller. Featuring all of the standard mounting points that a normal 2.5" hard drive uses, the converter can be installed into external hard drive enclosures, hard drive docking stations, or into desktop/laptop computers. The enclosure also features a unique design that enables data pass-through with no conversion bottlenecks, enabling the mSATA drive to work as fast as it's allowed by the host system/interface. - Fits virtually any full-length mSATA Solid State Drive into an housing that is identical to a standard 2.5" SATA drive
- A completely pass-through design allows for the mSATA drive to operate at full capacity without any conversion bottleneck
- Retrieve/backup data from an old mSATA (Mini SATA) drive
- Use an mSATA drive in a dual drive system, with an SSD for the OS and traditional HDD for storage
- Access an mSATA drive from a standard SATA computer system
- Access an mSATA (Mini SATA) drive from an external source such as a SATA drive enclosure or docking station
- Durable aluminum and plastic construction
- Support for SATA I/II/III (1.5/3.0/6.0 Gb/s)
UPC: 065030845694 In the Box StarTech 2.5" SATA to Mini SATA SSD Adapter Enclosure (Silver) 2 x Mounting Screws Limited 2-Year Warranty Brochure PDF 91.8kbfxdbawxufvebuwzz More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 2.5" SATA to Mini SATA SSD Adapter Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech SAT2MSAT25 Specs | | | Interface | SATA | | Drive Type | 1 x mSATA (Mini SATA) | | Drive Installation | Fixed | | | | Drive Connectors | 1 x mSATA (52-pin) female slot | | Host Connectors | 1 x SATA data and power combo (7+15-pin) plug | | | | OS Compatibility | OS independent | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | 14 to 185°F (-10 to 85°C) | | Relative Humidity | 5 ~ 95% | | | | Enclosure Type | Aluminum and plastic | | Dimensions (L x W x H) | 3.9 x 2.7 x 0.4" (9.8 x 6.8 x 0.9 cm) | | Weight | 1.8 oz (50.0 gm) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 6.3 x 5.2 x 1.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
