User Manual for StarTech 2-Port DisplayPort KVM Switch Click to enlarge the picture
Contents of the user manual for the StarTech 2-Port DisplayPort KVM Switch
- Product category: KVM Switches StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech KVM Switches
|
User manual for the StarTech 2-Port DisplayPort KVM Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The black 2-Port DisplayPort KVM Switch from StarTech lets you control two DisplayPort, USB-equipped PCs from a single monitor, keyboard, and mouse; a third USB port lets you share an additional peripheral between the two systems. The KVM works with Mini-DisplayPort, HDMI, and DVI adapters. The switch is compatible with Windows and Mac computers. - 4K Picture Quality
- Support resolutions up to 4K to manage your graphics intensive content. The KVM switch also supports high-definition 1080p displays, which makes the switch a suitable solution for high-resource applications such as graphic design, CAD/CAM design, or health care imaging (MRI, radiology diagnostics, and more)
- Multi-System Access
- Featuring DisplayPort with 7.1 digital audio, plus a 3-port USB hub for your keyboard, mouse, and an additional USB peripheral device, this KVM switch is suitable for accessing two separate systems from a single monitor, keyboard, and mouse. The hub is ideal for for server control, simplifying access to multiple computer systems.
- Hassle-Free Operation

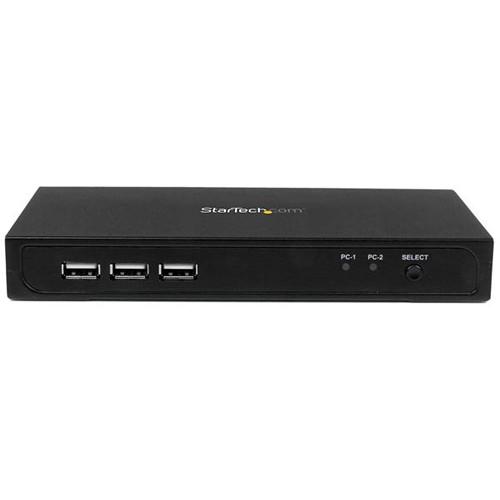

- This 2-port KVM ensures effortless operation with an intuitive hotkey control, providing a simple yet comprehensive solution for switching between each connected computer. The KVM also supports manual operation using the easy-to-access toggle switch located on the front of the switch.

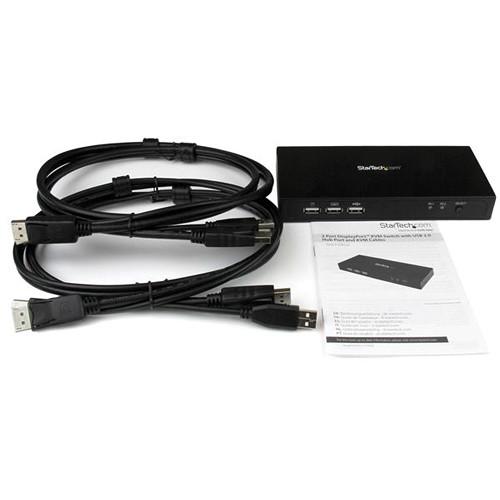

UPC: 065030859738 In the Box StarTech 2-Port DisplayPort KVM Switch (Black) 2 x 4' DisplayPort KVM Cables Limited 2-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 2-Port DisplayPort KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

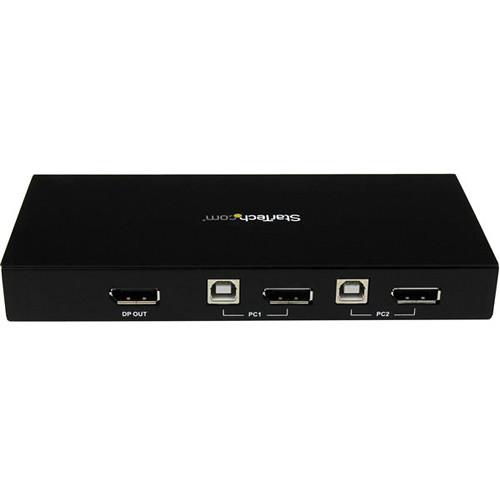

Technical parametersStarTech SV231DPU2 Specs | Cables Included | Yes | KVM Ports | 2 | PC Interface | USB | PC Video Type | DisplayPort | | Audio Specifications | 1.1 digital audio (dependent on supporting display and video sources) | DVI Support | Dual Link | Maximum Digital Resolutions | 3684 x 2160 at 30Hz (4K, SST) | Number of Users | 1 (maximum) | Wide Screen Supported | Yes | | Console Interfaces | 1 x 20-pin DisplayPort female 3 x 4-pin USB A female | Host Connectors | 2 x 20-pin DisplayPort female 2 x 4-pin USB B female For audio support the display must support DisplayPort audio, and the source and display must have compatible DisplayPort revisions | | Cable Length | 3.9' (1.2 m) | | LED Indicators | 1 x Port 1 active LED 1 x Port 2 active LED | | Humidity | 0 to 80% RH | Operating Temperature | 32 to +104°F (0° to +40°C) | Storage Temperature | -4 to +140°F (-20 to +60°C) | Dimensions (L x H x W) | 7.0 x 1.0 x 3.2" (177.0 x 25.0 x 82.0 mm) | Weight | 12.1 oz (342.0 g) | | Package Weight | 2.0 lb | Box Dimensions (LxWxH) | 9.5 x 7.5 x 2.6" |
