User Manual for StarTech 2-Port ExpressCard 54mm USB 3.0 Card Adapter with UASP Click to enlarge the picture
Contents of the user manual for the StarTech 2-Port ExpressCard 54mm USB 3.0
- Product category: USB Controller Cards StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech USB Controller Cards
 |
User manual for the StarTech 2-Port ExpressCard 54mm USB 3.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

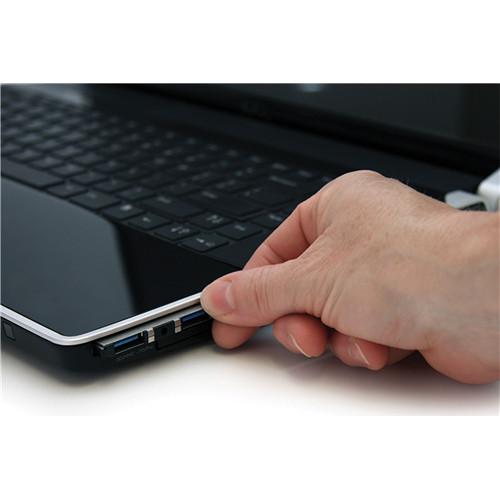

Product description The 2-Port ExpressCard 54mm USB 3.0 Card Adapter with UASP from StarTech allows you to add two USB 3.0 ports to your ExpressCard-enabled laptop. This SuperSpeed USB 3.0 card supports data transfer rates of up to 5 Gb/s. It is backwards compatible with USB 2.0 and USB 1.1/1.0 with data transfer rates up to 480 Mb/s and 12/1.5 Mb/s, respectively. This USB 3.0 card has a flush-mount design that allows it to sit flush in a standard 54mm laptop ExpressCard slot, creating a seamless add-on that can be left installed even while you are on the move, preventing damage to either the card or the ExpressCard slot. Enhanced with UASP (USB attached SCSI protocol) support, this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure. Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP* technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. Note: *UASP supports Windows 8/Server 2012/Linux kernel 2.6.3 or later. In testing UASP performed with up to a 70% faster read/40% faster write speed over traditional USB 3.0 at peak performance. - The card has a flush-mount design that prevents damage while on the move.
- Two SuperSpeed USB 3.0 ports support data transfer rate of up to 5 Gb/s, while still maintaining backwards compatibility with USB 2.0/1.1/1.0
- Facilitates time-saving file transfers, up to 70% faster than traditional USB 3.0 when used with a UASP-supported enclosure
- This card is compliant with USB 3.0 base specification 1.0, xHCI specification 0.95, and PCIe specification 2.0
Applications - Users who need USB connectivity, but do not need to swap between other ExpressCard adapters, so will leave the card installed in the card slot
- Mobile users who want to leave ExpressCard adapters installed, without worrying about damage to the card or slot while on the move
- Connect high-performance USB 3.0 external storage devices to a laptop
- Upgrade an older laptop with USB 3.0 connectivity
- Extend your laptop expansion capabilities with additional USB ports

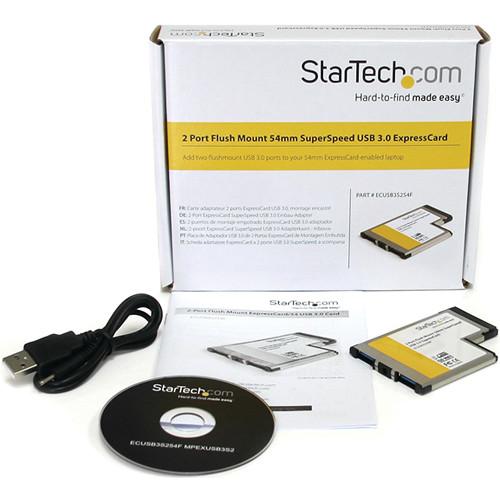

UPC: 065030843577 In the Box StarTech 2-Port ExpressCard 54mm USB 3.0 Card Adapter with UASP USB to DC Power Adapter Cable Driver CD Limited 2-Year Warranty Guides & Manuals fsrtwqyzftwdaqrc More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 2-Port ExpressCard 54mm USB 3.0 Card Adapter with UASP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech 2-Port ExpressCard 54mm USB 3.0 Card Adapter with UASP can be downloaded in PDF format at the link stated below.
Technical parametersStarTech ECUSB3S254F Specs | Interface | USB 3.0 A (9-pin; SuperSpeed) female | | Ports | 2 | | Data Transfer Rate | 5 Gb/s Max throughput of card is limited by host bus interface. If used with ExpressCard Gen 1.0 enabled computer, max throughput is 2.5 Gb/s. and with Gen 2.0, max throughput is 5 Gb/s. | | Bus Type | ExpressCard | | Card Type | 54mm ExpressCard | | UASP Support | Yes | | Chipset ID | Renesas/NEC - µPD720200 | | System Requirement | Available ExpressCard/54 slot | | OS Compatibility | Windows XP (32/64-bit)/Server 2003 (32/64-bit)/Server 2008 R2/Vista (32/64-bit)/7 (32/64-bit)/8 (32/64-bit) | | Output Voltage | 5 VDC | | Center Tip Polarity | Positive | | Plug Type | A | | Temperature | Operating: 32 to 185°F (0 to 85°C)
Storage: -85 to 257°F (-65 to 125°C) | | Compliance | CE, FCC, RoHS | | Dimensions (L x W x H) | 2.9 x 2.1 x 0.2" (74.0 x 54.0 x 5.0 mm) | | Weight | 0.8 oz (23.8 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 7.0 x 6.0 x 1.0" |
Rating46% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
