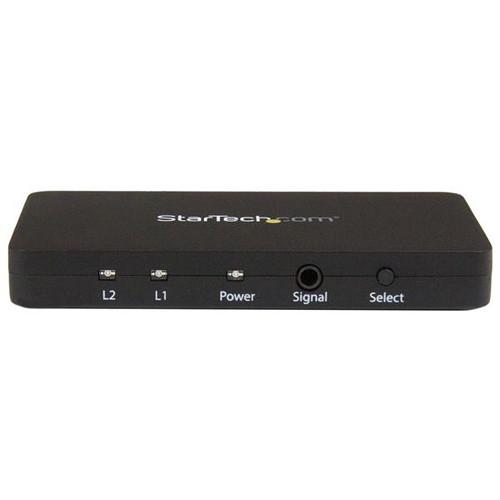

User Manual for StarTech 2-Port HDMI 4K Automatic Video Switch with MHL Support Click to enlarge the picture
Contents of the user manual for the StarTech 2-Port HDMI 4K Automatic Video
- Product category: Routers & Switchers StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Routers & Switchers
 |
User manual for the StarTech 2-Port HDMI 4K Automatic Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The 2-Port HDMI Automatic Video Switch from StarTech allows you to share a display or projector with two HDMI-enabled video source devices. The switch features two independent inputs, each supporting up to UHD 4K resolution and 7.1 surround sound audio. The switch also features MHL support on input port 1, enabling video output video from MHL-enabled mobile devices such as Samsung Galaxy tablets and smartphones. - High-Quality Picture with 4K Support
-
- UHD 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p
- As the switch is backward compatible with high-definition 1080p, all video sources can be supported by digital signage application
- Solid Aluminum Housing Ensures Fixed Positioning
-
- Constructed of solid aluminum, the HDMI switch is durable and heavy enough to prevent the unit from lifting or sliding around if the attached HDMI cables are bumped or shifted
- Its small footprint makes it easy to integrate the switch into any boardroom, classroom, home theater, or digital signage application
- Hassle-Free Operation with Auto Switching & EDID
-
- Ensures easy operation with automatic switching that detects and selects a newly connected device
- Automatic switching encourages on-the-fly collaboration among colleagues, by making it easy to share your projector between multiple source devices in a boardroom or classroom environment
- Supports manual operation using the included IR remote control, or the built-in front panel toggle switch directly on the device
- Saves time during setup with EDID emulation, ensuring that all your native settings—such as resolution and refresh rate—are communicated between your display and source devices
- EDID emulation maximizes compatibility with your 4K display, ensuring a convenient plug-and-play installation
- General
-
- 2x1 HDMI switch with MHL support
- IR remote control included
- 7.1 surround sound audio
- Small footprint
- Front panel toggle switch button
- Applications
-
- Share a 4K television or projector with two different UHD 4K video sources
- Collaborate with colleagues by connecting multiple users to the same display, and switch between input devices
- Use in digital signage applications to display multiple source devices at different times
- Use in your home theater to connect two A/V devices, such as Blu-ray players, cable/satellite set-top boxes, and computers to your television

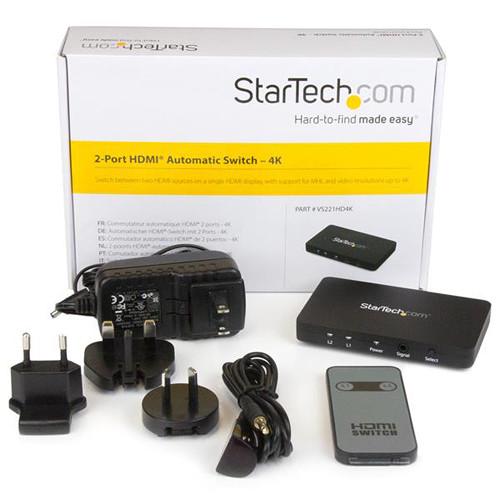

UPC: 065030859646 In the Box StarTech 2-Port HDMI 4K Automatic Video Switch with MHL Support IR Cable Remote Control Universal Power Adapter Limited 2-Year Warranty More from Manufacturer wrbfducrtvuctz Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 2-Port HDMI 4K Automatic Video Switch with MHL Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

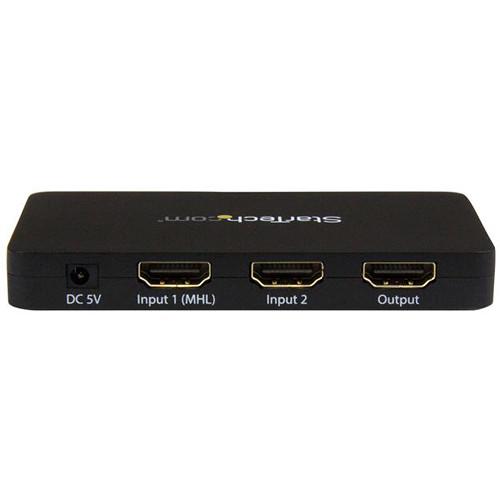

Technical parametersStarTech VS221HD4K Specs | Connectors | Inputs:
2 x HDMI 1.4 type A, female
Output:
1 x HDMI 1.4 type A, female | | Audio Specifications | 7.1 surround sound | | Maximum Digital Resolutions | 4K @ 30 Hz | | Supported Resolutions | 3840 x 2160 (UHD 4K)
2560 x 1600
1920 x 1200
1920 x 1080p
1280 x 720p | | Wide Screen Supported | Yes | | LED Indicators | Power
Port selected (1/2) | | Center Tip Polarity | Positive | | Input Current | 1 A | | Input Voltage | 100 to 240 VAC | | Output Current | 3 A | | Output Voltage | 12 VDC | | Power Source | AC adapter, Included | | Humidity | 5 to 90% | | Operating Temperature | 32 to 158°F / 0 to 70°C | | Storage Temperature | 14 to 176°F / -10 to 80°C | | Material | Aluminum | | Dimensions | 0.6 x 3.9 x 2.4" / 1.4 x 10 x 6.1 cm | | Weight | 6.3 oz / 179 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 8.504 x 5.827 x 2.047" |
