Product description The 350 MHz, black 2-Port High Resolution VGA Splitter from StarTech splits a VGA video source signal to 2 monitors or projectors simultaneously. It is a professional grade solution that is perfect for presentations, classrooms, tradeshows or in-store displays, where the highest quality video on several monitors is needed. This high-resolution VGA splitter supports monitors with up to 350 MHz of video bandwidth and display resolution of up to 2048 x 1536 at 80 Hz. For added versatility, the VGA splitter features an integrated booster circuit that allows the video signal to be extended up to 210' (64 m), enabling you to situate your displays in the most convenient locations based on your application. Note: Male to Female VGA extension cable required (MXT101HQ) - Splits VGA Signals to 2 Outputs
- Use the splitter to take a single VGA signal and simultaneously display on 2 different monitors.
- Transmits VGA Signal Up to 210'(64m)
- An integrated signal amplifier boosts the connection range up to 210' (64m).
- High-Definition Resolution Support
- High-quality construction and high-resolution support up to 2048 x 1536 at 80 Hz maintains signal strength for crisp, sharp imaging with high video bandwidth of up to 350MHz.
- Daisy Chain Configuration
- The splitter is daisy chainable for almost unlimited expansion.
- Multimedia Presentation
- Create engaging multimedia presentations for demonstration in lecture halls and classrooms.
- Display Schedules and Alerts
- Display travel schedules and alerts in airports, bus terminals, train stations and more.
- Eye-Catching Displays
- Create eye-catching displays in trade-shows and auditoriums.
- Advertisement Visibility
- Use for in-store product merchandising in retail environments to give the advertisements greater visibility.
- Message Broadcasting
- Multiple screens let you broadcast your message to large audiences with greater impact.
- Easy Solution
- This is a quick and easy solution to split a video signal in an auditorium or house of worship.
- DDC Compatible
- The splitter is DDC compatible.

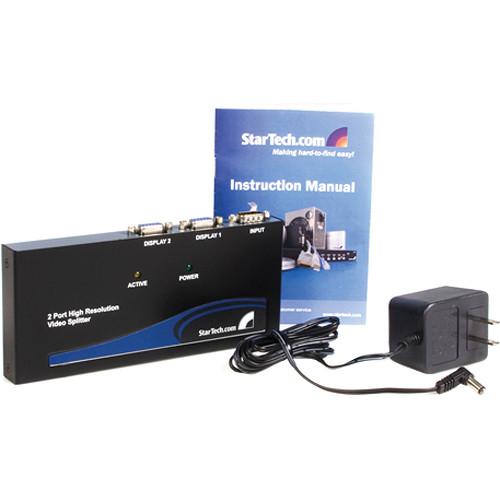

UPC: 065030785594 In the Box StarTech 2-Port High Resolution VGA Splitter (350 MHz, Black) 4x Rubber Feet Power Adapter 2-Year Warranty Brochure PDF 128.6kbtzazxvrdbqsdvccu More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 2-Port High Resolution VGA Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

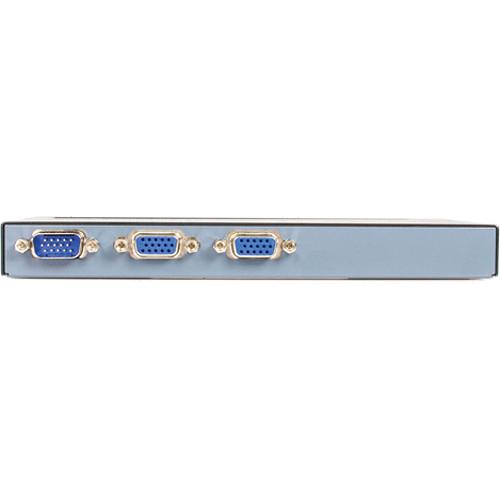

Technical parametersStarTech ST122PRO Specs | | | Connector 1 | 1 - VGA (15-pin; high-density D-Sub) male | | Connector 2 | 2 - VGA (15-pin; high-density D-Sub) female | | | | Maximum Resolution | 2048 x 1536 at 80 Hz (Analog) | | Bandwidth | 350 MHz (-3db) | | MTBF | 1,588,136 hours | | | | Power Adapter | 120 VAC | | Output Voltage | 5 VDC | | Output Current | 0.6 A | | | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Humidity | 0 to 80% RH Non-condensing | | | | Regulatory Approvals | FCC Part 15 Class A, CE Mark | | Industry Standards | DDC compatible - all other monitors must be able to support the highest video resolution of the DDC-type monitor connected to video out 1 | | Certifications | CE, FCC, RoHS | | | | Maximum Cable Length | 213.2' (65 m) | | Dimensions (L x W x H) | 7.1 x 3.1 x 0.8"(180 x 78.7 x 20.3 mm) | | Weight | 2.1 lb (1 kg) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 9.5 x 7.3 x 3.7" | Note: Male to Female VGA extension cable required (MXT101HQ)
