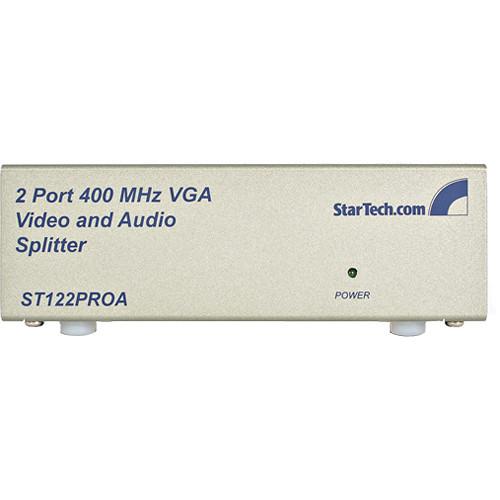

User Manual for StarTech 2-Port High Resolution VGA Video Splitter with Audio Click to enlarge the picture
Contents of the user manual for the StarTech 2-Port High Resolution VGA Video
- Product category: Converters & Splitters StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Converters & Splitters
 |
User manual for the StarTech 2-Port High Resolution VGA Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The 400MHz, gray 2-Port High Resolution VGA Video Splitter with Audio from StarTech offers a practical solution for high-resolution multi-screen presentations that allow you to split and carry a VGA video signal as well as the corresponding audio to be broadcasted from a computer to up to two sets of VGA monitors and speakers simultaneously. This is an ideal solution for use in classrooms, tradeshows, in-store displays or any application where high-quality video and audio is required. It supports displays with up to 400 MHz of video bandwidth and high-resolution applications up to 2048 x 1536. The high-resolution VGA splitter features a built-in booster circuit that allows monitors to be located up to 210'(64m) away from the host system and ensures high quality VGA video even at longer distances. It is designed for simplicity and convenience that offers easy plug and play installation. The VGA splitter is a completely hardware-based solution and requires no software operation, thus saving both time and hassle. - Splits high-resolution single VGA video signal with audio to 2 monitors or projectors
- 400 MHz bandwidth provides brilliant 2048 x 1536 resolution
- DDC, DDC2 and DDC2B compatible (on video out port 1)
- Daisy chainable for almost unlimited expansion
- Includes 7.5VDC power adapter
- Multiple screens let you communicate your message to large audiences with greater impact
- Maintains signal strength for crisp, sharp imaging
- Doubles as a signal amplifier, boosting display range by up to 210' (64m)
- Compatible with VGA, SVGA and multi-sync monitors
- Uses standard monitor extension cables

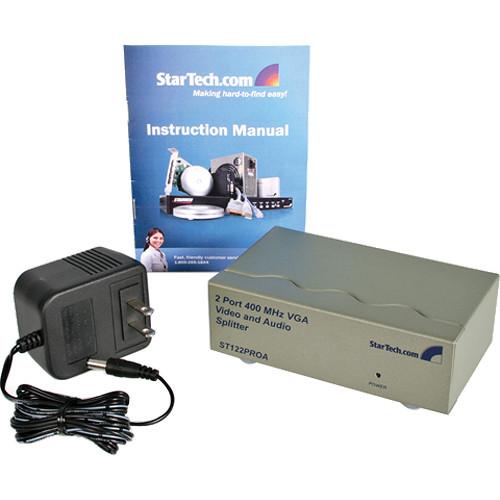

UPC: 065030805209 In the Box StarTech 2-Port High Resolution VGA Video Splitter with Audio (400 MHz, Gray) Power Adapter 2-Year Warranty Manual PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 2-Port High Resolution VGA Video Splitter with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

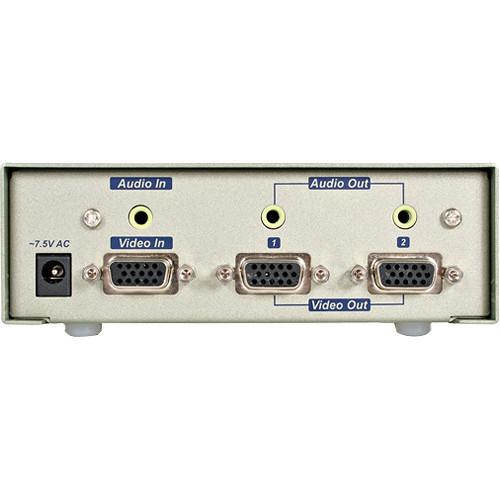

Technical parametersStarTech ST122PROA Specs | | | Connector 1 | 1 x 0.1"(3.5 mm) mini-jack (3 position) female
1 x VGA (15-pin; high-density D-Sub) female | | Connector 2 | 2 x 0.1"(3.5 mm) mini-jack (3 position) female
2 x VGA (15-pin; high-density D-Sub) female | | | | Maximum Resolution Analog | 2048 x1536 at 60 Hz | | Bandwidth | 400 MHz | | | | Power Adapter | Yes (included) | | Output Voltage | 12 VDC | | Input Current | 0.6 A | | | | Certifications | CE, FCC, RoHS | | Dimensions (L x W x H) | 5.1 x 3 x 2.8" (129.5 x 76.2 x 71.1 mm) | | Weight | 15.4 oz (436.5 g) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 10.1 x 7.6 x 2.3" |
