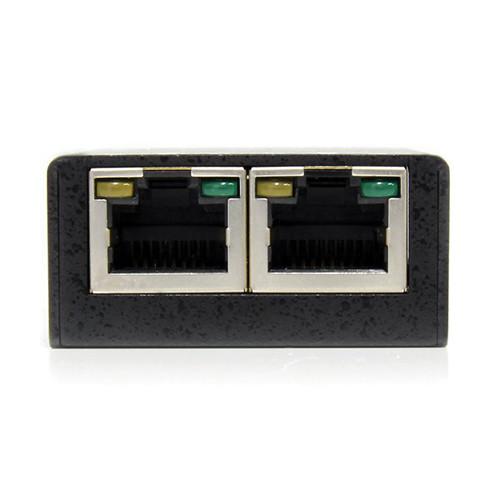

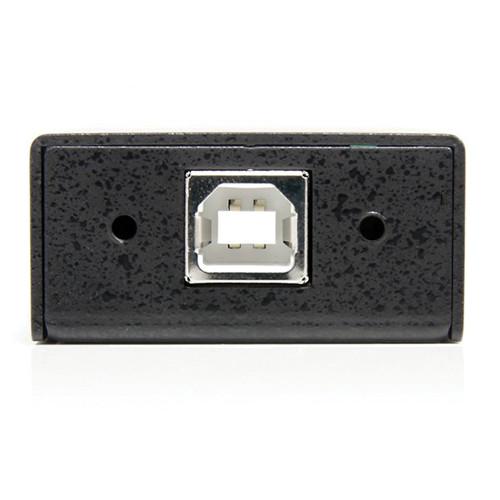

Product description The black 2-Port Industrial USB to Serial RJ-45 Adapter from StarTech allows you to add two RS232 serial connections using RJ-45 signaling ports to a PC or server through a single USB 2.0 port. It features COM port retention to maintain your port number assignments across a reboot and supports serial data rates up to 921 Kb/s. The included DIN Rail clips (Top Hat) and wall-mount bracket provide simple solutions for out-of-the-way installations, while the sturdy metal enclosure offers durability in harsh industrial environments. - Rugged all-metal enclosure with included DIN Rails and wall-mount bracket for versatile installation options and added durability
- Multiple ports with COM port retention give you hassle-free control of several serial devices, without having to remember where each one was last connected
- The USB to RJ-45 serial adapter draws its power from the USB host connection, eliminating the need for bulky external adapters or power outlets
- Perfect for IT administrators looking to add legacy functionality to newer laptops, PCs, and servers that lack integrated RS232
- Connect, monitor, and control industrial/automotive sensors and equipment

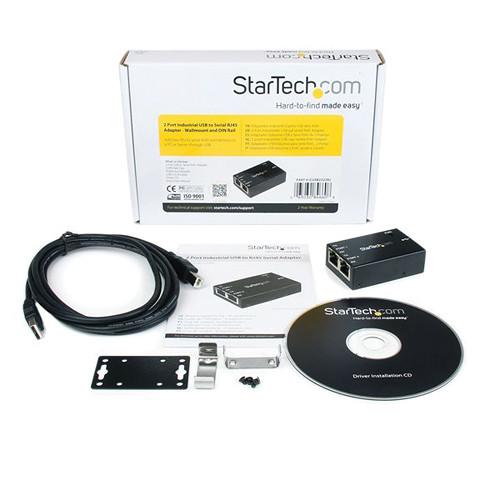

In the Box StarTech 2-Port Industrial USB to Serial RJ-45 Adapter (Black) Wall-mount Bracket 2 x DIN Rail Clips USB A to B Cable Driver CD Limited 2-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 2-Port Industrial USB to Serial RJ-45 Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech ICUSB2322RJ Specs | | | Interface | Serial | | Ports | 2 | | Bus Type | USB 2.0 | | Port Style | External hub | | Chipset ID | FTDI - FT232R | | | | Connector Type | 1 x USB B (4-pin) female
2 x RJ-45 female | | | | FIFO Buffer | 128 bytes | | Serial Protocol | RS232 | | Max Baud Rate | 921.6 Kb/s | | Data Bits | 7, 8 | | Parity | Odd, Even, Mark, Space, None | | Stop Bits | 1, 2 | | | | Power Adapter | USB powered | | | | Humidity | 5 to 95% RH | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | | | OS Compatibility | Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), 2000, 98SE, CE (4.2+)
Windows Server 2012, 2008 R2, 2003 (32/64-bit), 2000
Mac OS 10.x (tested up to 10.9)
Linux | | | | Enclosure Type | Steel | | Dimensions (L x W x H) | 2.6 x 1.7 x 0.8" (6.5 x 4.2 x 2.0 cm) | | Weight | 2.8 oz (78 g) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 8.268 x 5.748 x 1.654" |
